Home / Tool / Cordless / XGT / Drilling & Fastening / Impact Wrenches / TW011GZ

XGT Technology

(Tool only)


TW011GZ

40Vmax XGT Brushless 3/4" Long Anvil High Torque Impact Wrench, Tool Only

Makita Purpose-Built Brushless Motor Delivers 1,400 ft/lbs (1,900 Nm) Nut-Busting Torque And 1,110 ft/lbs (1,500 Nm) Maximum Torque.

Constant speed control ensures stable torque until the end of the battery charge for consistent and stable fastening

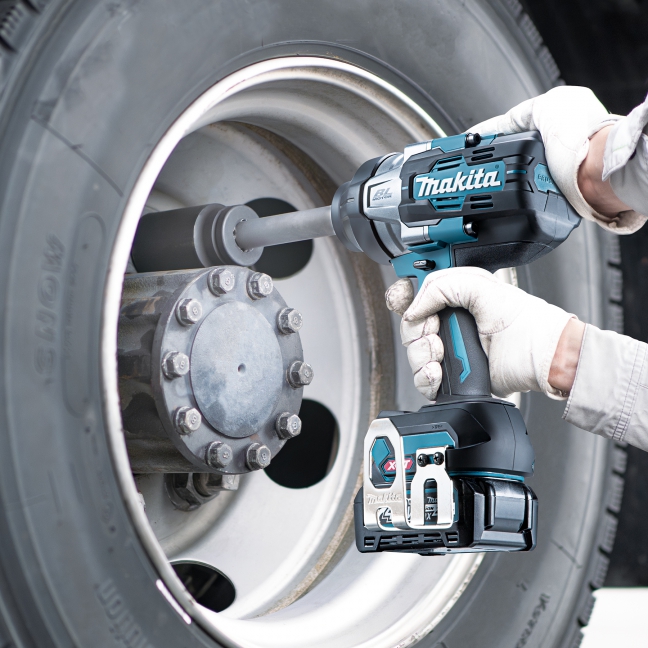

Equipped with a 5-7/16” long anvil with a ¾” square drive which is suitable for loosening and tightening bolts and nuts in recessed areas such as the rear wheels of trucks


XGT Technology LXT Technology LXT Technology

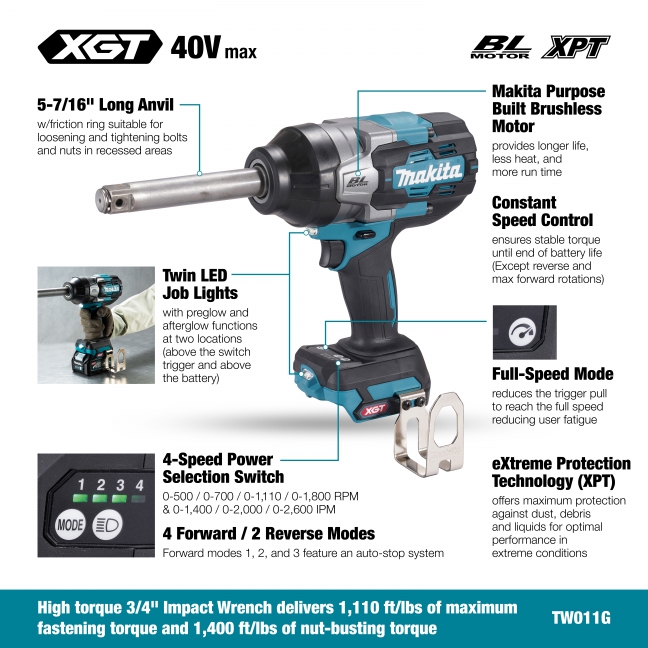

  • Makita Purpose-Built Brushless Motor Delivers 1,400 ft/lbs  (1,900 Nm) Nut-Busting Torque And 1,110 ft/lbs (1,500 Nm) Maximum Torque.
  • Equipped with a 5-7/16” long anvil with a ¾” square drive which is suitable for loosening and tightening bolts and nuts in recessed areas such as the rear wheels of trucks
  • Four modes are available for forward rotation
  • Modes 1, 2, and 3 feature an auto-stop system to enhance bolt/nut tightening efficiency, making it suitable for tire removal and installation
  • Mode 1 stops immediately after seating (30 - 50 Nm), which is equivalent to manual tightening of large truck tires
  • Mode 2 stops approx. 0.3 seconds after seating (50 - 150 Nm), which is equivalent to initial tightening of large truck tires
  • Mode 3 stops approx. 0.5 seconds after seating (300 - 450 Nm), which is equivalent to temporary tightening of large truck tires
  • Mode 4 tightens at the maximum speed
  • Two modes are available for reverse rotation
  • Modes 1 to 3 rotate slowly after finishing impacts
  • Mode 4 loosens at the maximum speed

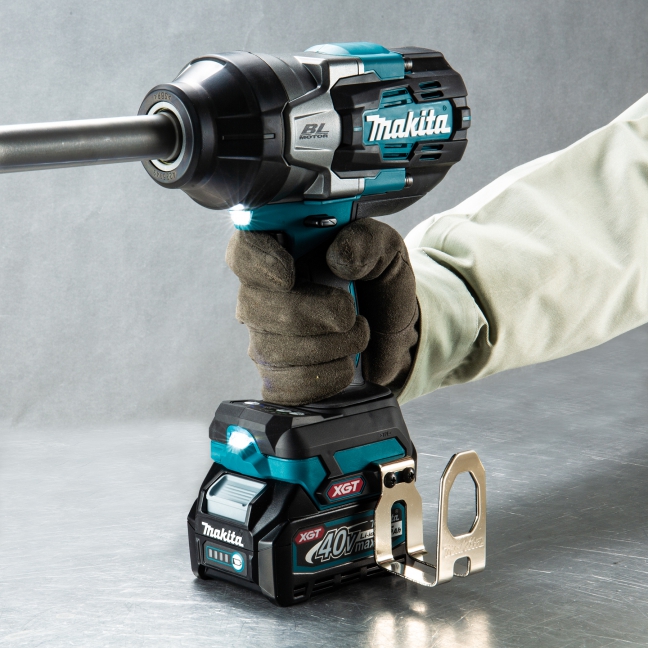

  • Twin LED job lights at two locations (above the switch trigger and above the battery) illuminate bolts and nuts for excellent visibility.
  • The full-speed mode function reduces the trigger pull to reach the full speed, reducing hand and finger fatigue from trigger pull
  • Ergonomically designed handle with rubberized soft grip provides increased comfort and improved grip
  • Constant speed control ensures stable torque until the end of the battery charge for consistent and stable fastening

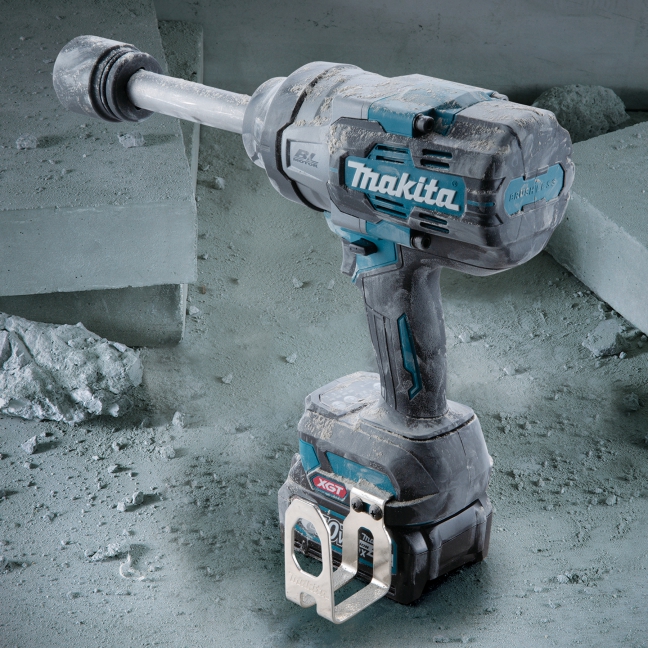

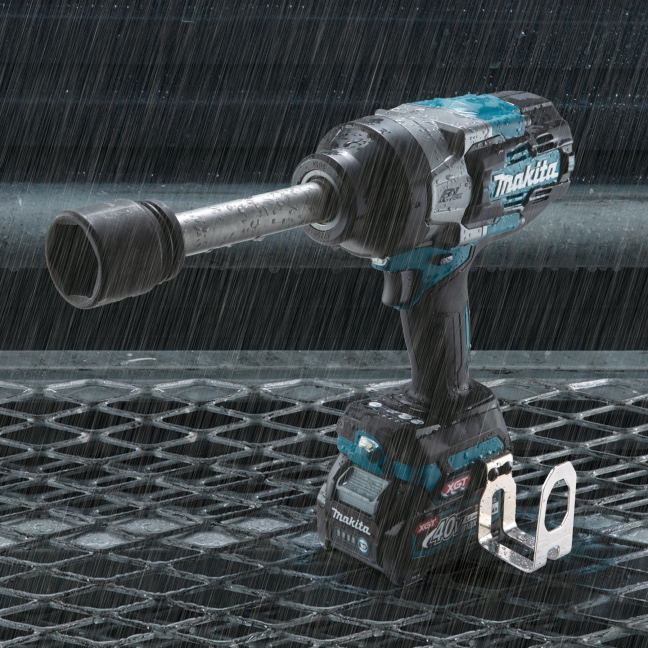

  • eXtreme Protection Technology (XPT) offers maximum protection against water, dust, dirt and debris for optimal performance in extreme conditions

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (346949-3)

  • Makita Purpose-Built Brushless Motor Delivers 1,400 ft/lbs  (1,900 Nm) Nut-Busting Torque And 1,110 ft/lbs (1,500 Nm) Maximum Torque.
  • Equipped with a 5-7/16” long anvil with a ¾” square drive which is suitable for loosening and tightening bolts and nuts in recessed areas such as the rear wheels of trucks
  • Four modes are available for forward rotation
  • Modes 1, 2, and 3 feature an auto-stop system to enhance bolt/nut tightening efficiency, making it suitable for tire removal and installation
  • Mode 1 stops immediately after seating (30 - 50 Nm), which is equivalent to manual tightening of large truck tires
  • Mode 2 stops approx. 0.3 seconds after seating (50 - 150 Nm), which is equivalent to initial tightening of large truck tires
  • Mode 3 stops approx. 0.5 seconds after seating (300 - 450 Nm), which is equivalent to temporary tightening of large truck tires
  • Mode 4 tightens at the maximum speed
  • Two modes are available for reverse rotation
  • Modes 1 to 3 rotate slowly after finishing impacts
  • Mode 4 loosens at the maximum speed
  • Twin LED job lights at two locations (above the switch trigger and above the battery) illuminate bolts and nuts for excellent visibility.
  • The full-speed mode function reduces the trigger pull to reach the full speed, reducing hand and finger fatigue from trigger pull
  • Ergonomically designed handle with rubberized soft grip provides increased comfort and improved grip
  • Constant speed control ensures stable torque until the end of the battery charge for consistent and stable fastening
  • eXtreme Protection Technology (XPT) offers maximum protection against water, dust, dirt and debris for optimal performance in extreme conditions

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (346949-3)

Shipping Dimensions (Length x Width x Height) & Weight : 15.1 In. X 4.8 In. X 11.3 In. Weight : 10.19 Lb.

Specifications

Battery Capacities 40V Max Li-Ion
Square Drive 3/4" (19.1 mm)
No Load Speed: 0 - 1,800 / 0 - 1,100 / 0 - 700 / 0 - 500 RPM
Impacts Per Minute: 0 - 2,600 / 0 - 2,000 / 0 - 1,400 / 0 - 1,200 IPM
Maximum Fastening Torque 1,110 ft. lbs (1,500 Nm)
Nut-busting Torque (reverse) 1,400 ft. lbs (1,900 Nm)
Vibration Level 15.6 m/s²
Noise Level 104 dB(A)
Dimensions (L x W x H)   13" x 3-11/16" x 9-3/4" (329 mm x 94 mm x 248 mm)
Net Weight 8.0 lbs (3.6kg)

User Manual: TW011G - EN FR SP.pdf

Parts Breakdown: TW011G - MAR2025.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
