GP001GZ

40Vmax XGT Brushless Grease Gun, Tool Only

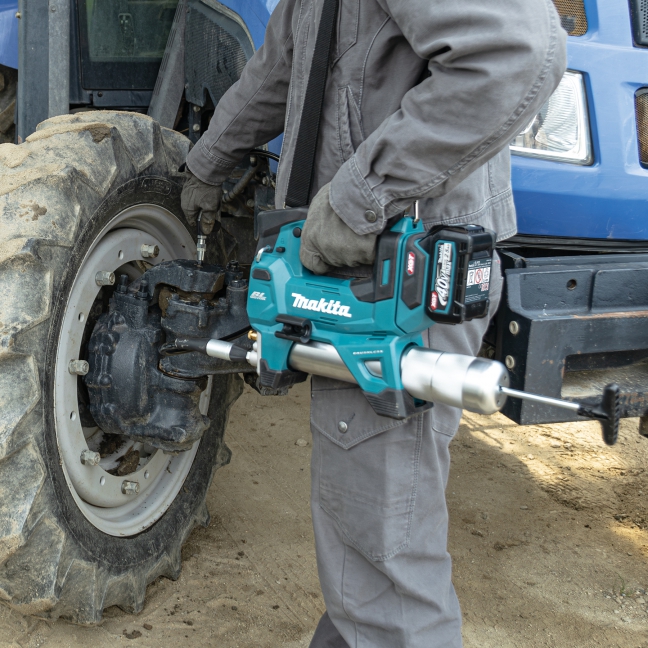

Ideal For Fast And Easy Greasing of Heavy Equipment, Agricultural Machinery, Conveyor Systems, All-Terrain Vehicles, Outdoor Power Equipment, Automobiles And More!

Variable Speed, Lock-On Button

XGT Technology LXT Technology LXT Technology

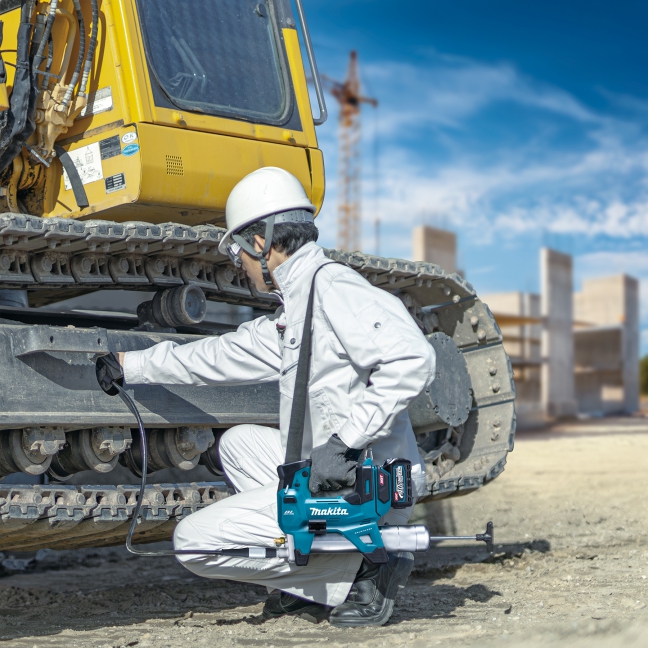

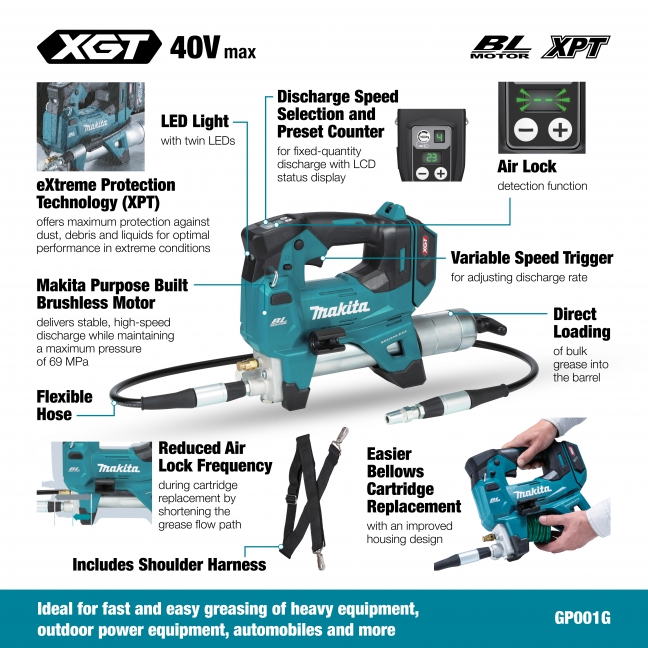

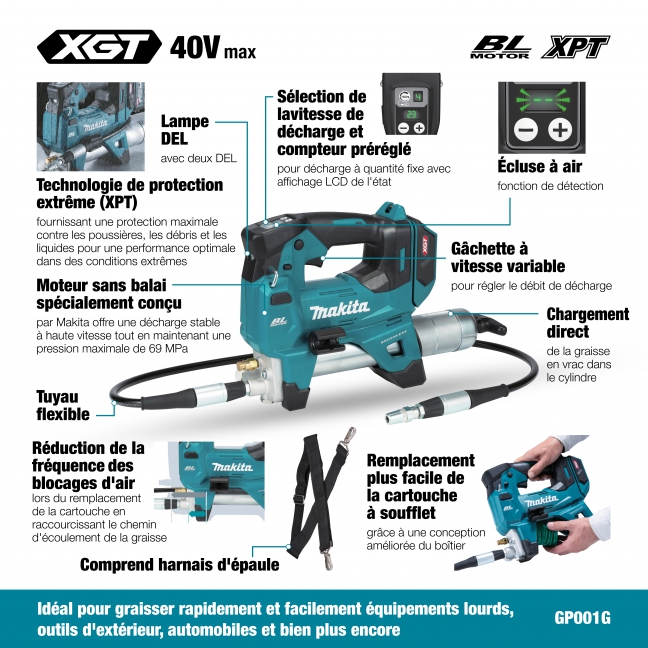

  • Brushless DC motor designed to deliver stable, high-speed discharge even in operations with gradually increasing lubrication pressure, such as crawler track tensioning during construction machinery maintenance.

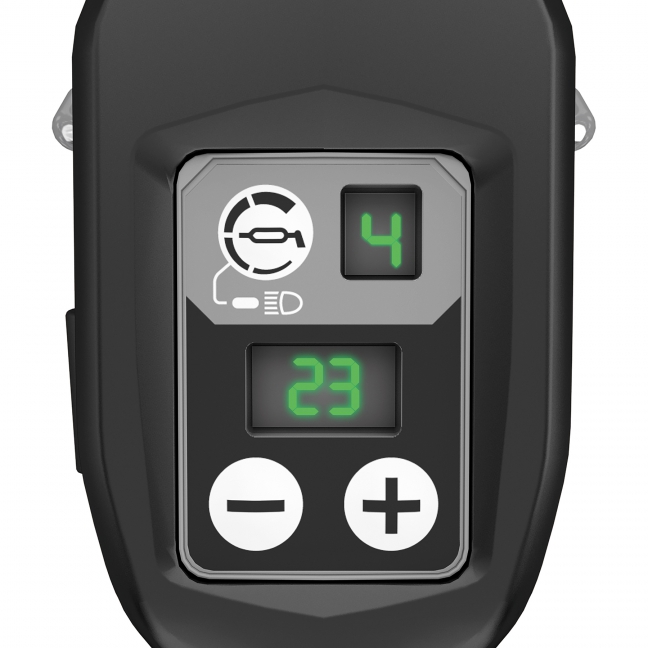

  • Discharge speed selection and preset counter for fixed-quantity discharge with LCD status display
  • Accepts 14.5 oz. grease cartridges or up to 16 oz. of bulk grease
  • Variable speed trigger allows operator to adjust dispensing speed based on application
  • Integrated constant speed control for stable discharge operation

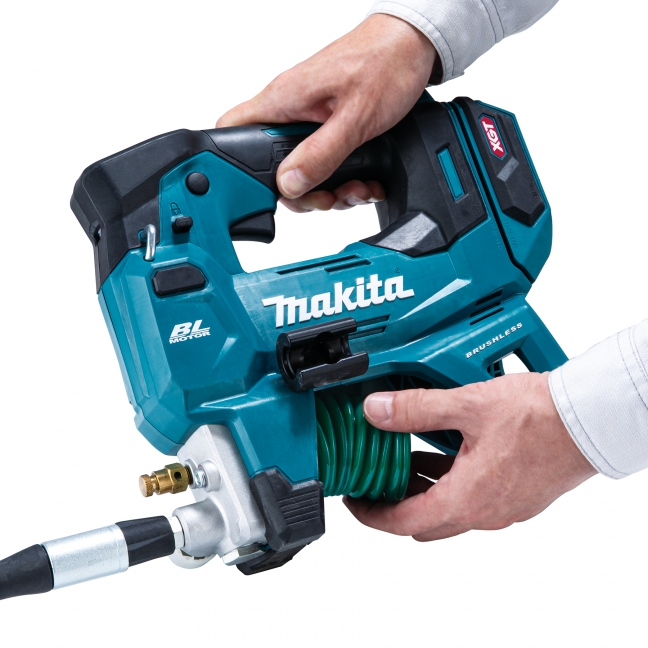

  • Improved housing design for easier bellows cartridge replacement
  • Flow optimized grease flow path for reduced air lock frequency during cartridge replacement

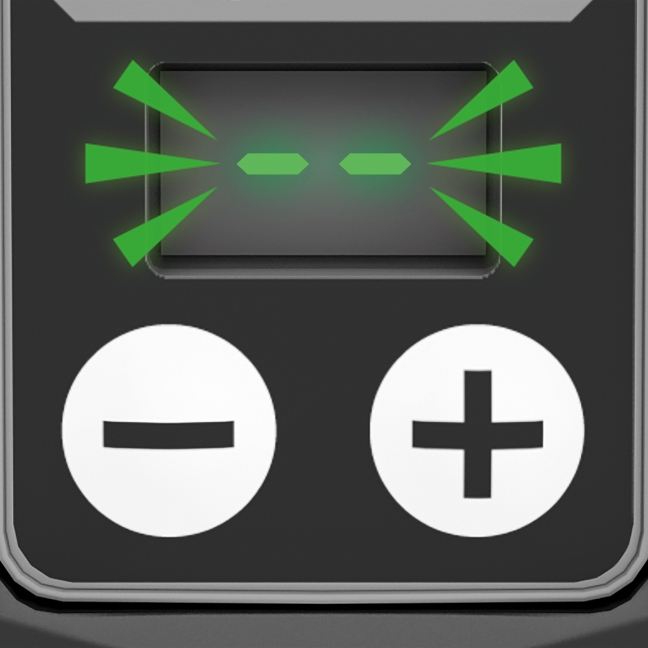

  • Air lock detection function

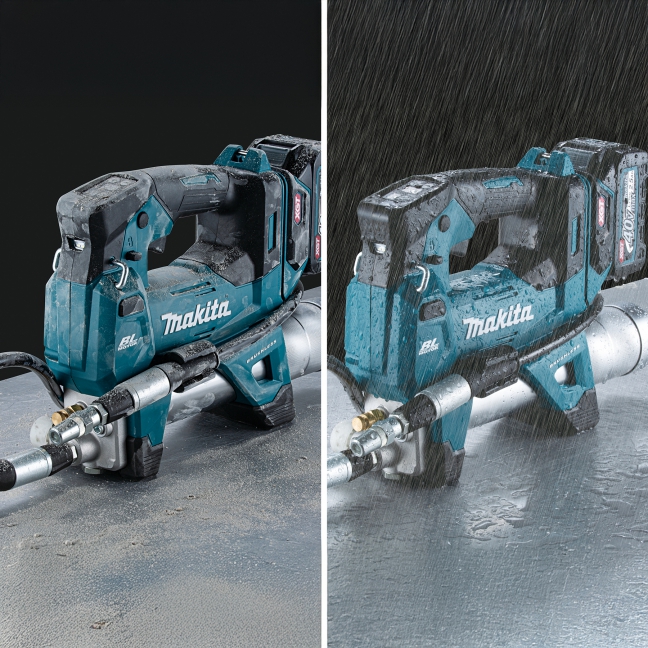

  • XPT-compatible for enhanced dust and water resistance in harsh outdoor environments

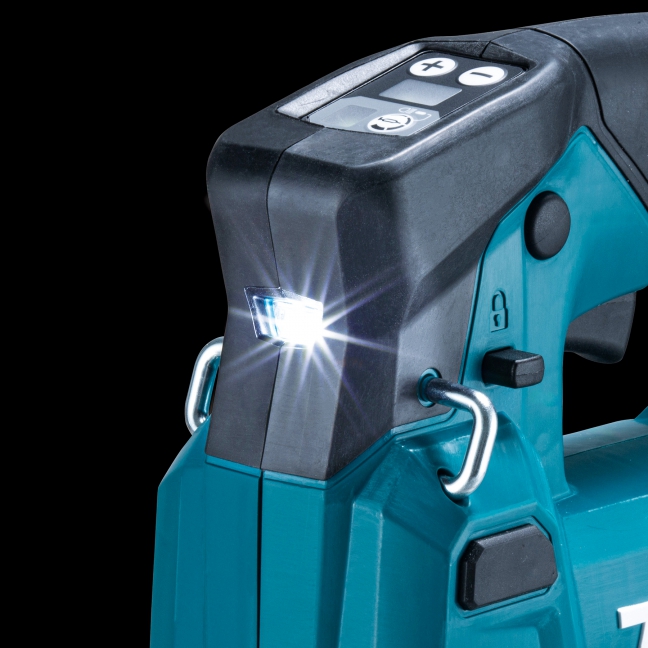

  • Twin LED job light with independent on/off switch illuminates work area for easy operation in dark spaces
  • Flexible hose for easy operation in tight spaces
  • Optional direct loading of bulk grease into the barrel
  • Ergonomically designed rubberized grip for increased comfort and control

Items Included:Batteries and Charger Sold Separately. Flexible Hose (1916S5-1), Shoulder Harness (166094-6)

  • Brushless DC motor designed to deliver stable, high-speed discharge even in operations with gradually increasing lubrication pressure, such as crawler track tensioning during construction machinery maintenance.
  • Discharge speed selection and preset counter for fixed-quantity discharge with LCD status display
  • Accepts 14.5 oz. grease cartridges or up to 16 oz. of bulk grease
  • Variable speed trigger allows operator to adjust dispensing speed based on application
  • Integrated constant speed control for stable discharge operation
  • Improved housing design for easier bellows cartridge replacement
  • Flow optimized grease flow path for reduced air lock frequency during cartridge replacement
  • Air lock detection function
  • XPT-compatible for enhanced dust and water resistance in harsh outdoor environments
  • Twin LED job light with independent on/off switch illuminates work area for easy operation in dark spaces
  • Flexible hose for easy operation in tight spaces
  • Optional direct loading of bulk grease into the barrel
  • Ergonomically designed rubberized grip for increased comfort and control

Items Included: Batteries and Charger Sold Separately. Flexible Hose (1916S5-1), Shoulder Harness (166094-6)

Shipping Dimensions (Length x Width x Height) & Weight : 22.2 In. X 5.2 In. X 10.7 In. Weight : 12.37 Lb.

Specifications

Battery Capacities: 40Vmax Li-Ion
Grease Capacity Barrel A Cartridge / Bulk: 14.5 / 16.0 oz (410 / 455 g)
Hose Length 47-1/4" (120 cm)
Maximum Operating Pressure 69 MPa (10.000 psi)
Vibration Level 2.5m/s²
Noise Level 81 dB(A)
Overall Length 15-1/2" (395 mm)
Net Weight  11.5 lbs - 14.3 lbs (5.2 kg - 6.5 kg)
