DTD201Z

18V LXT Brushless 1/4" Impact Driver, Tool Only

Genuine Makita Purpose Built Brushless Motor Delivers 3700 Max RPM With 1,860 in.lbs Of Torque

Four selectable speed settings make it easy to adjust the tool for a wide range of applications.

Twin LED job lights provides bright illumination with preglow and afterglow functions for enhanced visibility.


LXT Technology LXT Technology LXT Technology

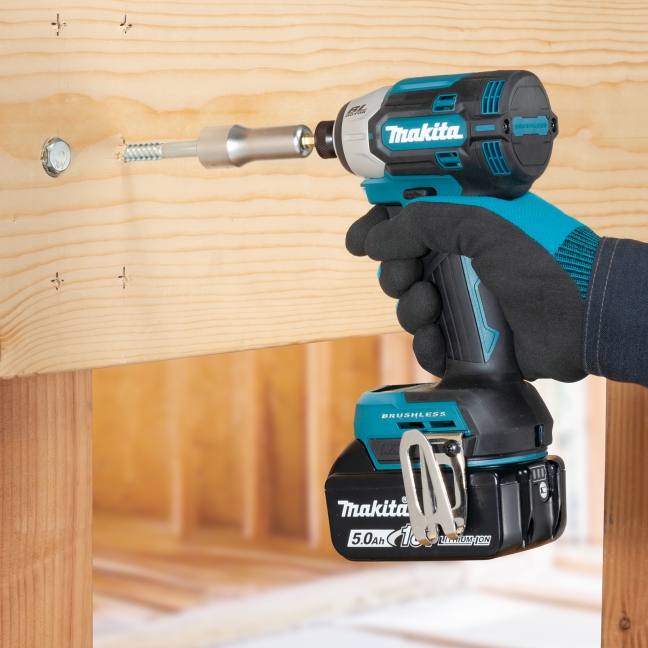

  • Delivers up to 1,860 in.lbs (210 Nm) of fastening torque and a high-speed rotation of up to 3,700 RPM.

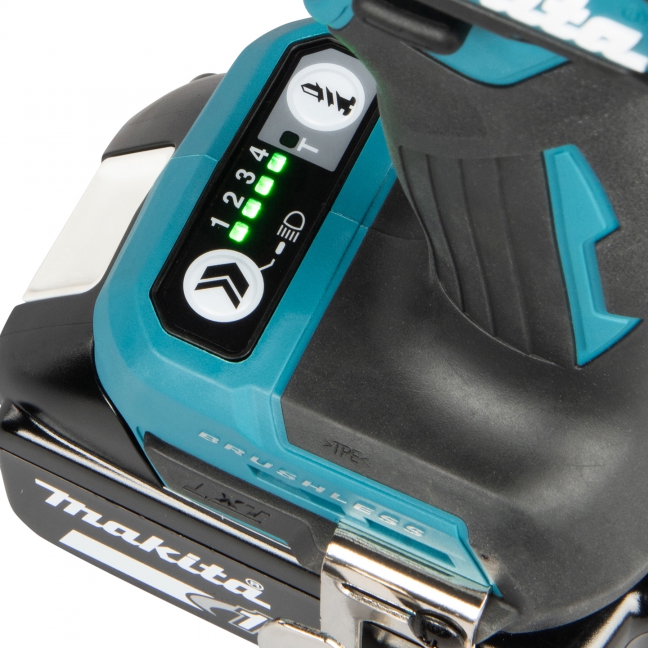

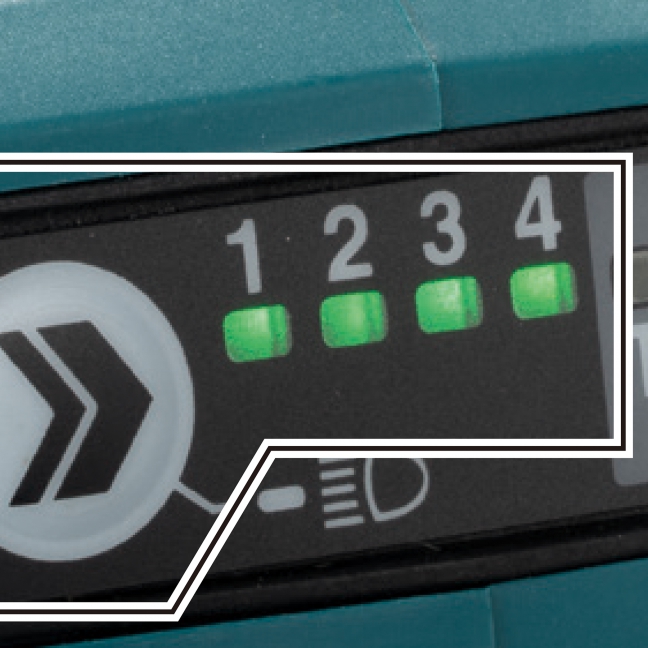

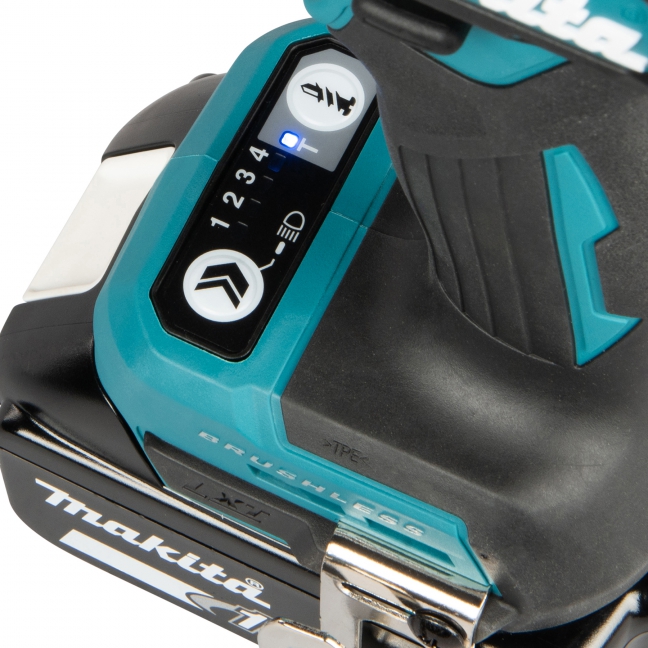

  • Four selectable speed settings make it easy to adjust the tool for a wide range of applications.

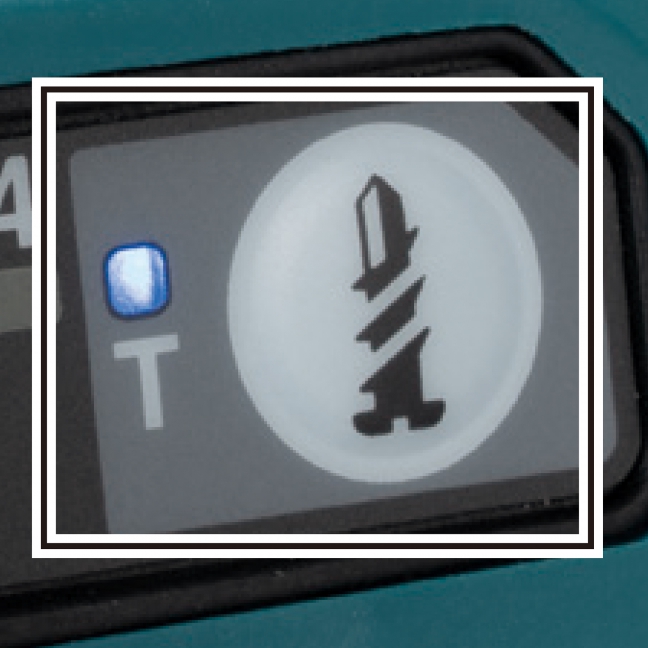

  • TEK-mode drives self-drilling screws into thin metal at high speed, then stops after the tool starts to impact to prevent overtightening.

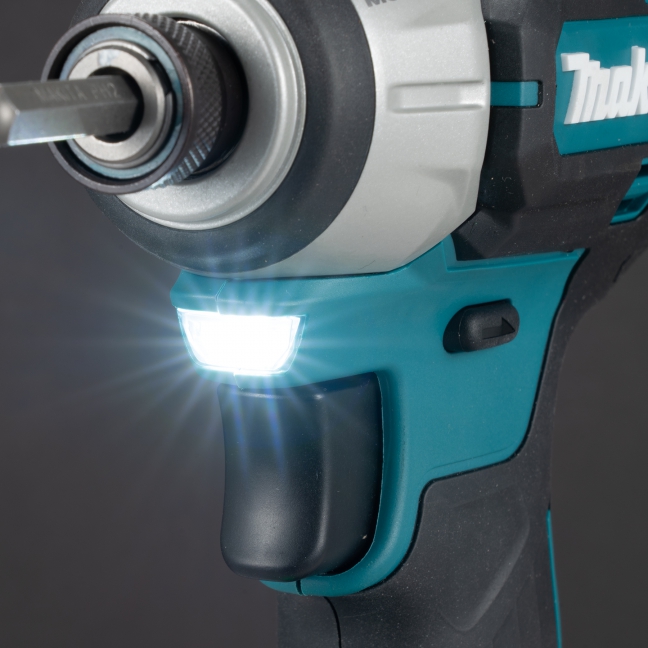

  • Twin LED job lights provide bright illumination with preglow and afterglow functions for enhanced visibility.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • Anti-bit wobbling structure ensures enhanced stability during fastening.
  • Compact design measuring 4-3/4" in length for easy access in tight spaces.
  • Lightweight design minimizes fatigue during extended use.

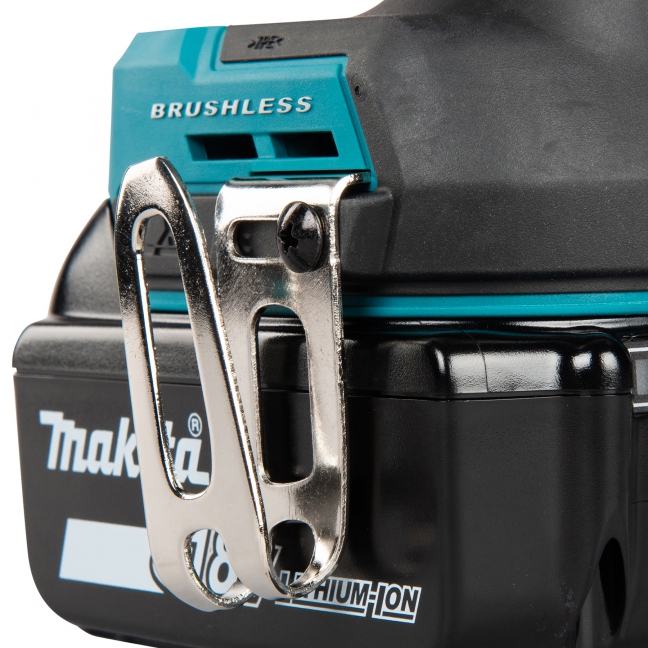

  • The removable belt hook allows for easy and convenient hanging of the tool.

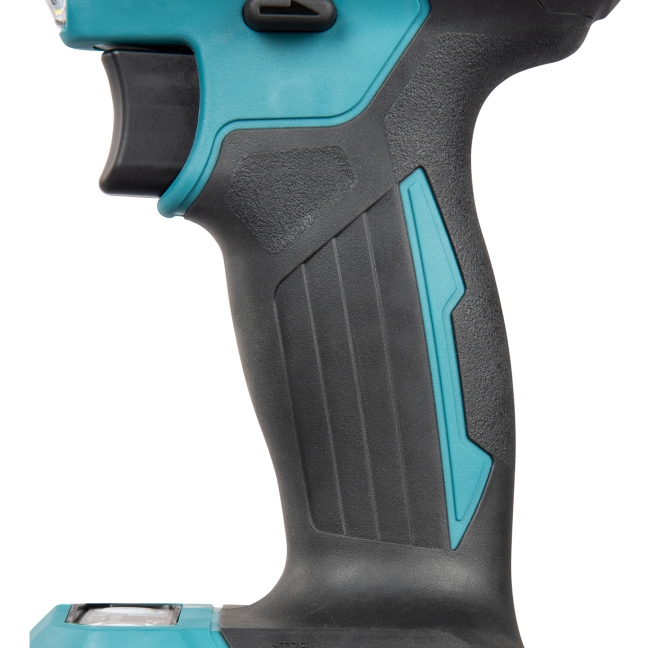

  • Ergonomic rubberized soft grip for increased comfort.

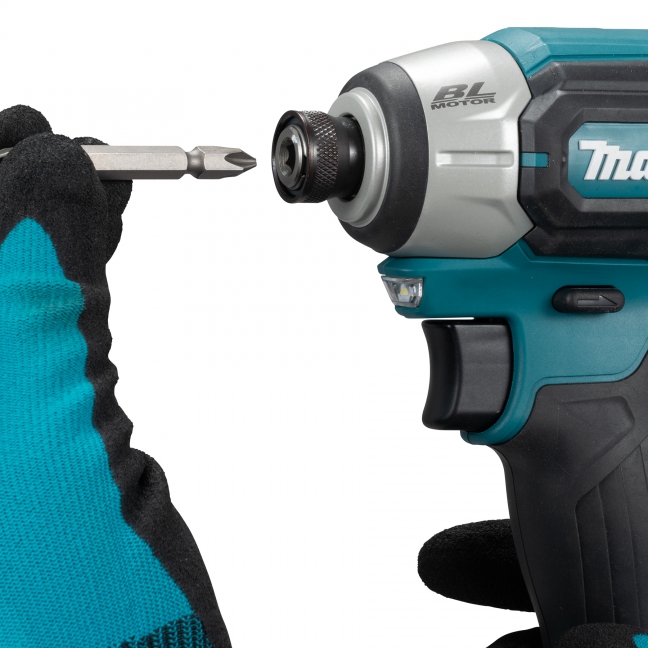

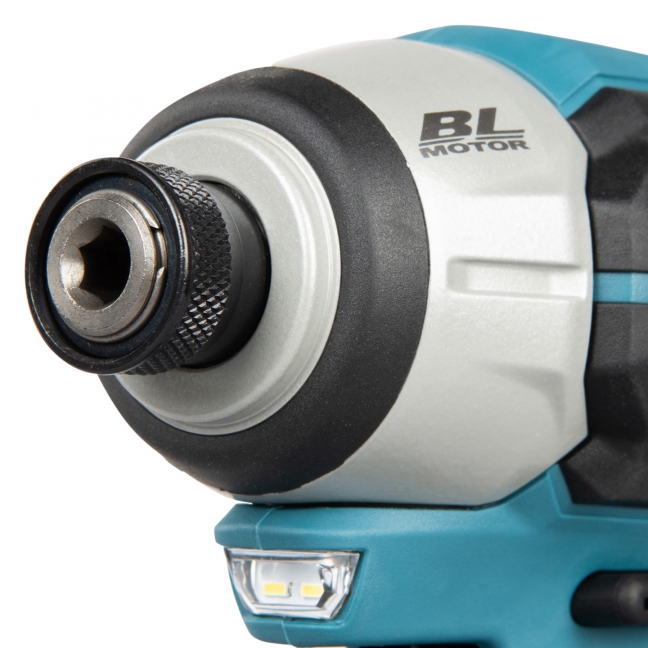

  • One-touch bit installation ensures smoother installation and reduces the chance of the bit coming loose.

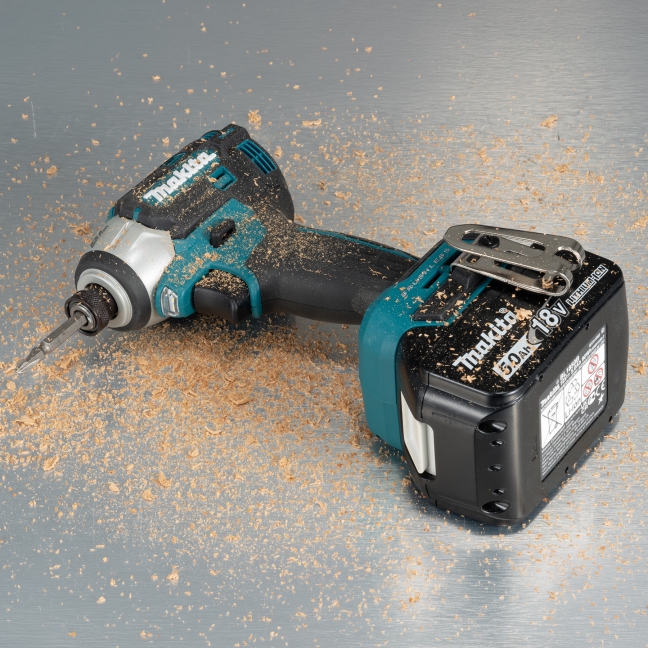

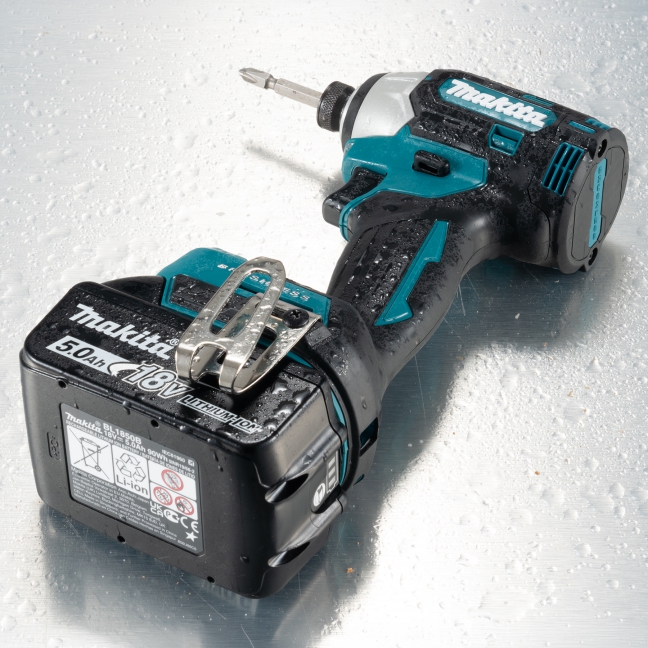

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions.

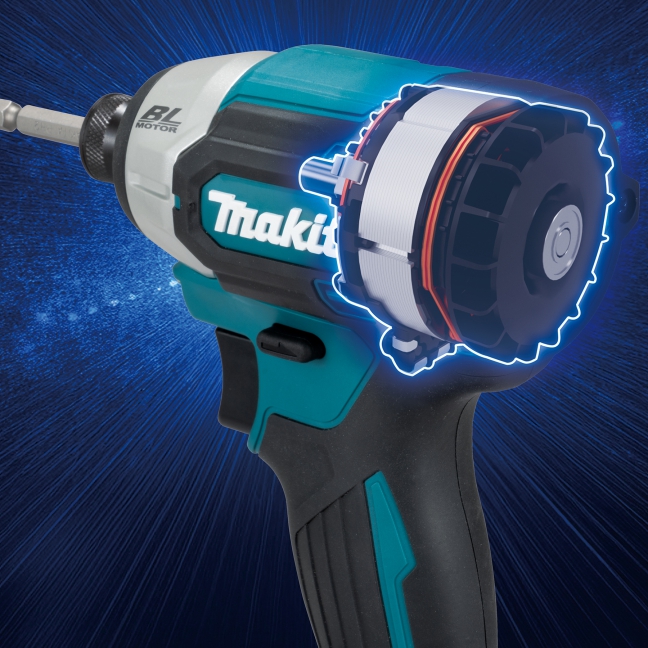

  • The brushless motor provides longer work hours per charge and extended tool life.
  • Electric brake quickly stops rotation for user protection.

Items Included:Batteries and Charger Sold Separately. Hook (346449-3)

  • Delivers up to 1,860 in.lbs (210 Nm) of fastening torque and a high-speed rotation of up to 3,700 RPM.
  • Four selectable speed settings make it easy to adjust the tool for a wide range of applications.
  • TEK-mode drives self-drilling screws into thin metal at high speed, then stops after the tool starts to impact to prevent overtightening.
  • Twin LED job lights provide bright illumination with preglow and afterglow functions for enhanced visibility.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • Anti-bit wobbling structure ensures enhanced stability during fastening.
  • Compact design measuring 4-3/4" in length for easy access in tight spaces.
  • Lightweight design minimizes fatigue during extended use.
  • The removable belt hook allows for easy and convenient hanging of the tool.
  • Ergonomic rubberized soft grip for increased comfort.
  • One-touch bit installation ensures smoother installation and reduces the chance of the bit coming loose.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions.
  • The brushless motor provides longer work hours per charge and extended tool life.
  • Electric brake quickly stops rotation for user protection.

Items Included: Batteries and Charger Sold Separately. Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 8.7 In. X 4 In. X 6.1 In. Weight : 2.7 Lb.

Specifications

Battery Capacities 18V Li-Ion
Hex Shank 1/4"
No Load Speed: 0 - 1,100 / 2,100 / 3,200 / 3700 RPM
Impacts Per Minute: 0 - 2,000 / 3,600 / 4,200 / 4,400 IPM
Maximum Torque 1,860 in. lbs (210 Nm)
Vibration Level 9.9 m/s²
Noise Level 97 dB(A)
Overall Length 4-3/4" (121 mm)
Net Weight 2.9 - 5.1 lbs (1.3 - 2.3 kg)

User Manual: DTD201 - EN FR SP.pdf

Parts Breakdown: DTD201 - SEP2025.pdf
