DBN620Z

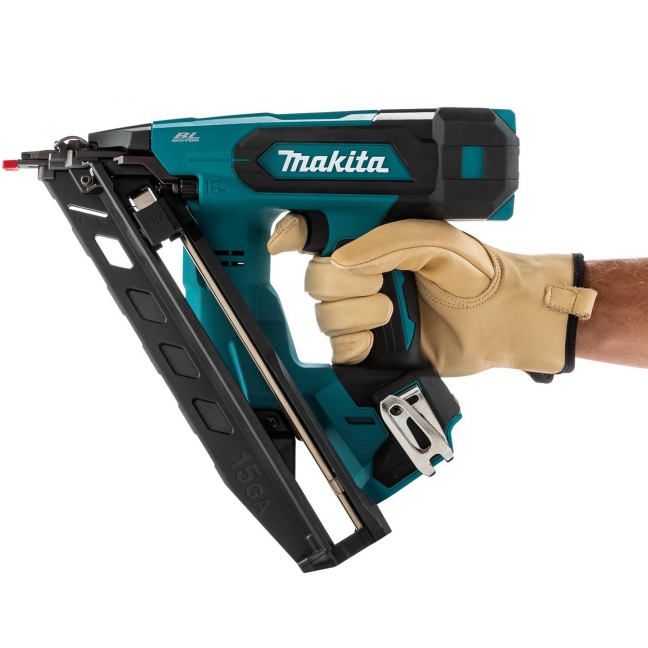

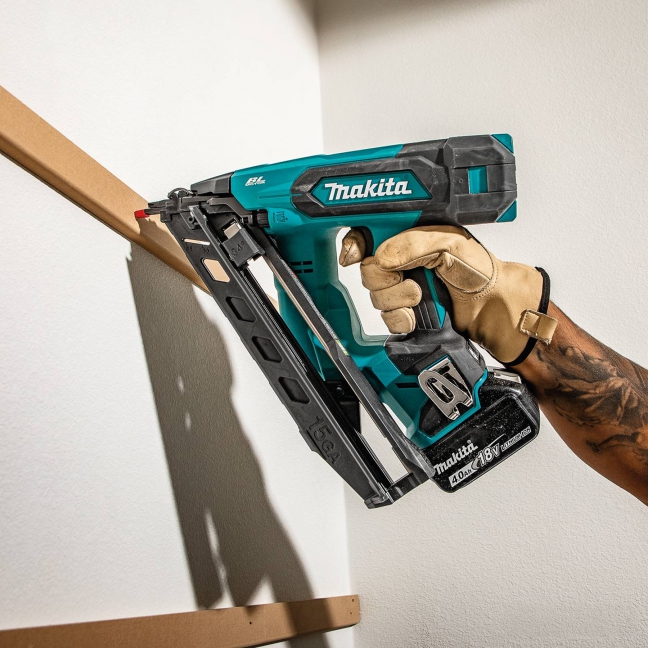

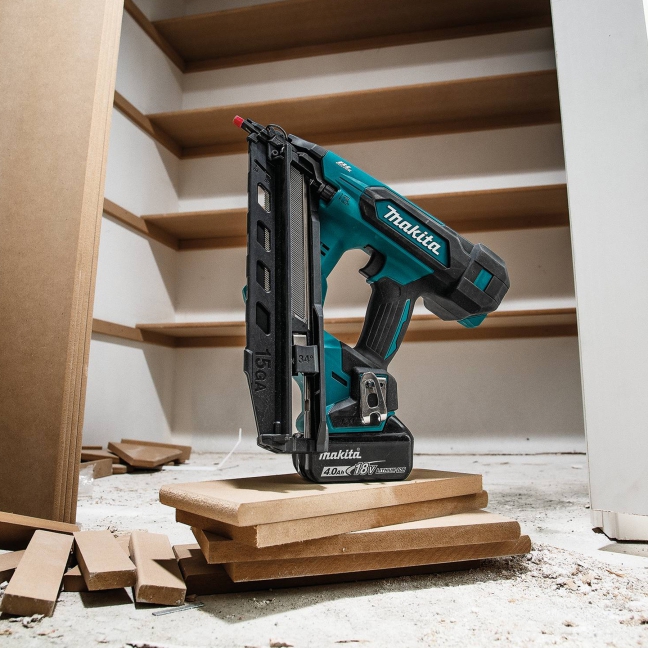

18V LXT Brushless 2-1/2" 15 ga Finish Nailer, 34°, Tool Only

Capable of driving nails up to 2-1/2" with performance similar to a Pneumatic Nailer

Rapid Firing Capability of 3.2 Nails Per Second

LXT Technology LXT Technology LXT Technology
  • Rapid Firing Capability - Incorporating a pneumatic spring structure driven by a brushless motor, providing superior rapid firing capability
  • Anti-Dry Fire Mechanism - Avoids dry firing by locking the contact arm when the remaining nails are 4 to 6

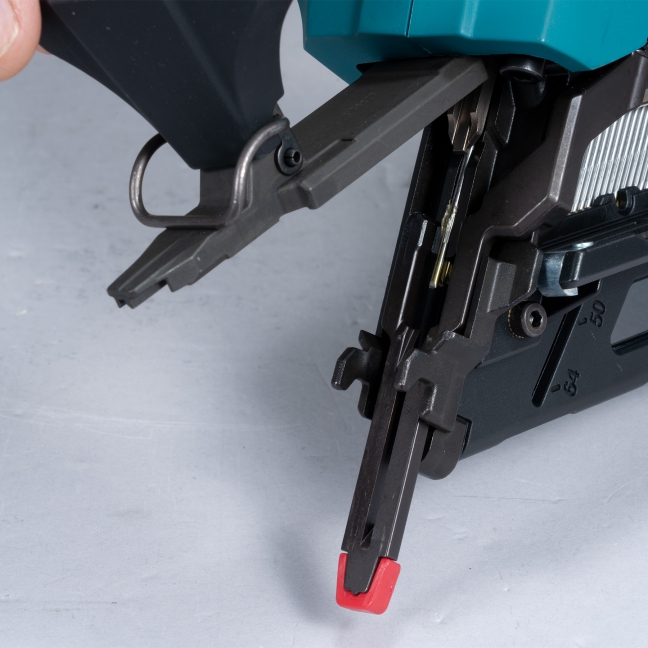

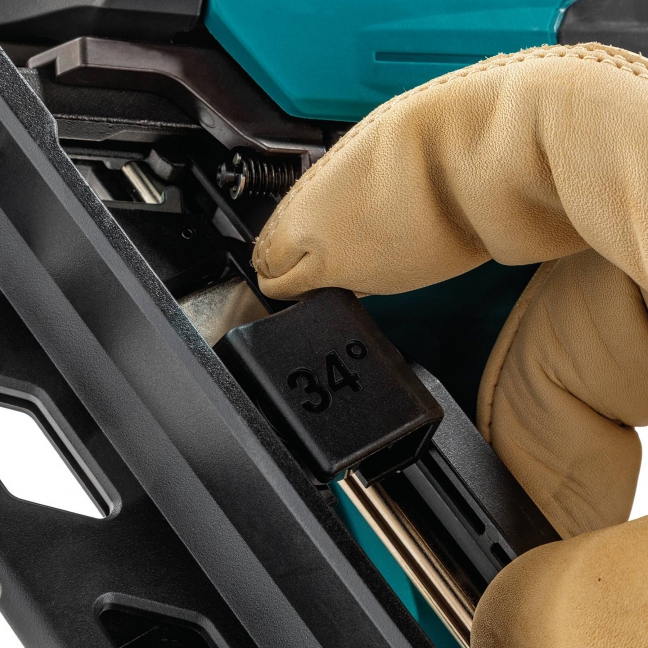

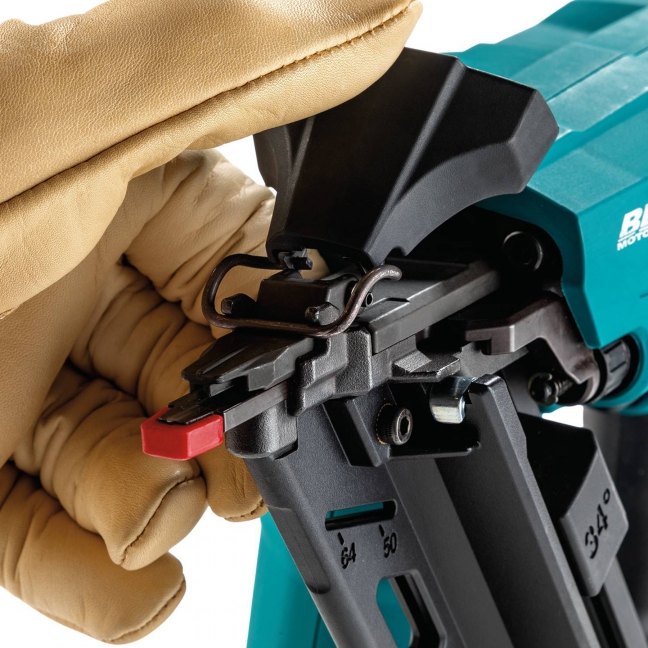

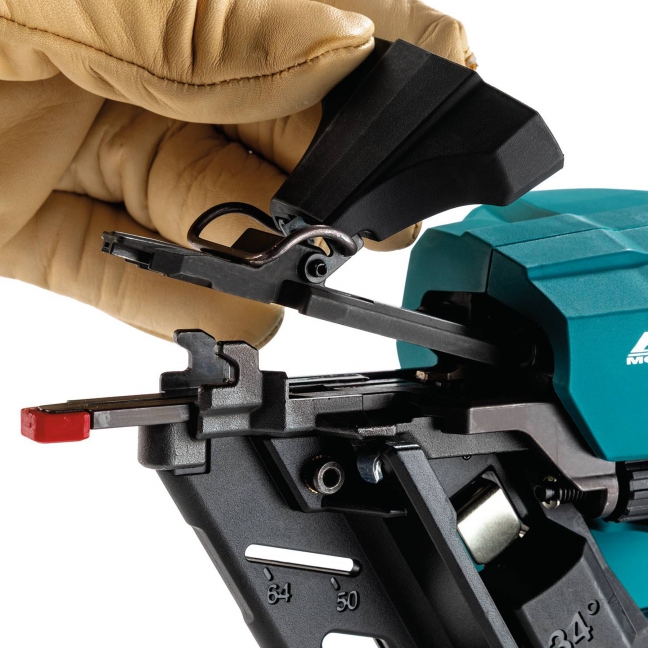

  • Tool-Less Jam Clearing - Nails can be quickly removed without tools in case of jamming
  • Features Makita's Extreme Protection Technology (XPT) engineered to improve the product's dust and water resistance for operation in the harshest of conditions
  • Reduced reaction force enables maximum operator control and reduced operator fatigue
  • Easy to see, low profile contact tip for maximum fastening precision
  • Rubber bumpers protect tool and materials from damage
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • LED battery capacity warning light indicates ideal time to recharge battery

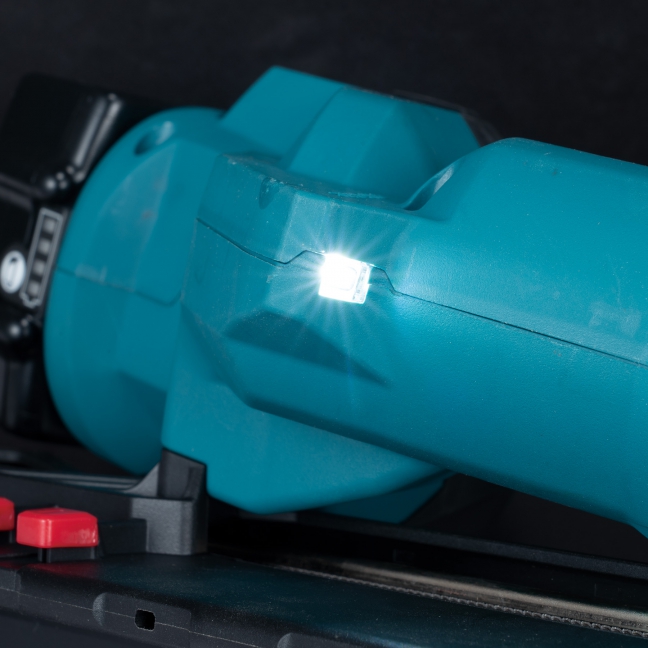

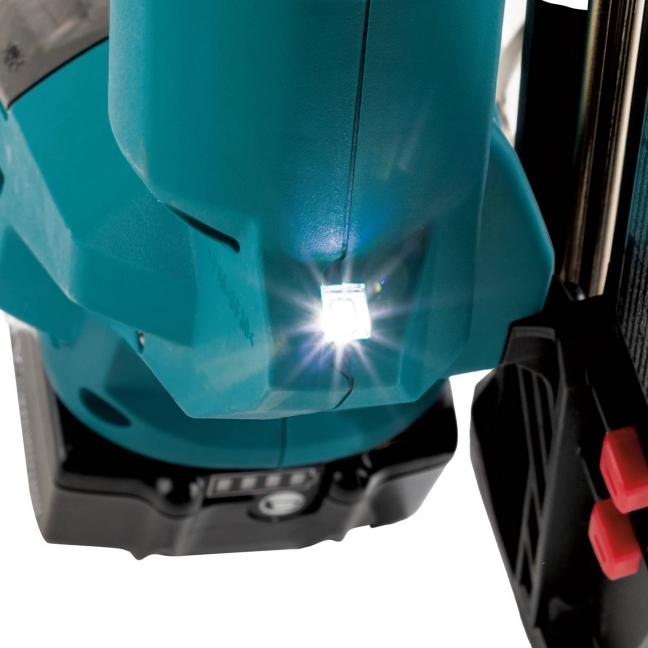

  • LED job light illuminates work area

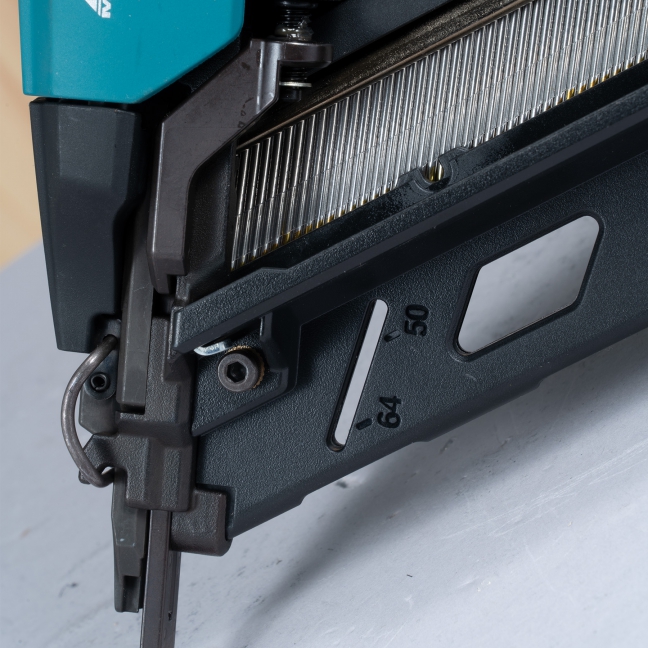

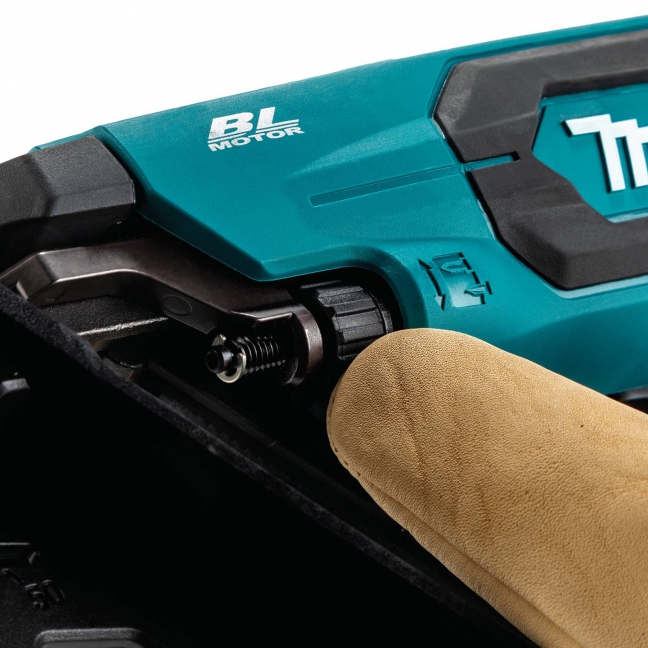

  • On-board depth control for quick and easy adjustment
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

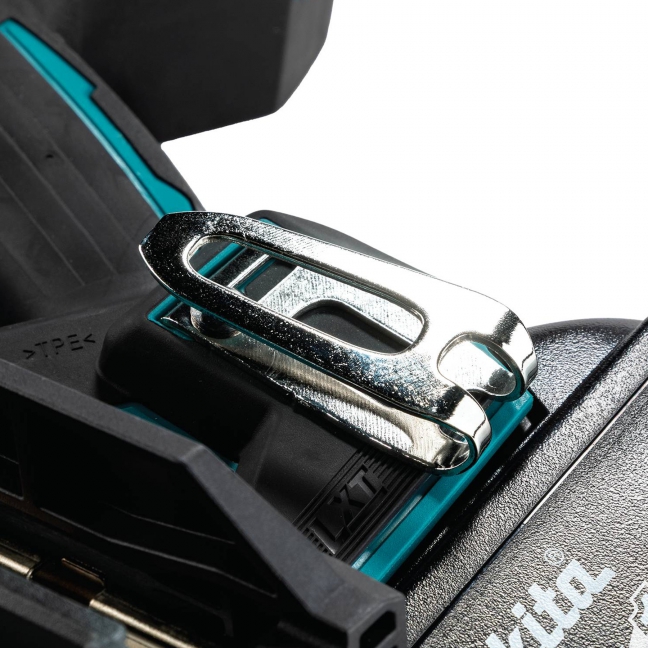

Items Included:Batteries and Charger Sold Separately. Two Nose Adapter (422B86-0), Hook (346449-3)

  • Rapid Firing Capability - Incorporating a pneumatic spring structure driven by a brushless motor, providing superior rapid firing capability
  • Anti-Dry Fire Mechanism - Avoids dry firing by locking the contact arm when the remaining nails are 4 to 6
  • Tool-Less Jam Clearing - Nails can be quickly removed without tools in case of jamming
  • Features Makita's Extreme Protection Technology (XPT) engineered to improve the product's dust and water resistance for operation in the harshest of conditions
  • Reduced reaction force enables maximum operator control and reduced operator fatigue
  • Easy to see, low profile contact tip for maximum fastening precision
  • Rubber bumpers protect tool and materials from damage
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • LED battery capacity warning light indicates ideal time to recharge battery
  • LED job light illuminates work area
  • On-board depth control for quick and easy adjustment
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. Two Nose Adapter (422B86-0), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 15.2 In. X 6.1 In. X 13.2 In. Weight : 7.99 Lb.

Specifications

Battery Capacities 18V Li-Ion
Magazine Capacities 108 nails
Gauge 15 ga
Nail Length 1-1/4" - 2-1/2" (32 mm - 64 mm)
Vibration Level 2.7 m/s²
Noise Level 86 dB(A)
Dimensions (L x W x H) 11-3/4" x 5-5/8" x 13-1/4" (297 mm x 142 mm x 335 mm)
Net Weight 6.0 lbs (2.7 kg)

User Manual: DBN601_DBN610_DBN620 - EN FR SP.pdf

Parts Breakdown: DBN620 - OCT2025.pdf
