DBN601Z

18V LXT Brushless 2-1/2" 16 ga Finish Nailer, Straight, Tool Only

Capable of driving nails from 3/4" to 2-1/2" into hard woods such as red oak

A pneumatic spring mechanism delivers lighter recoil when driving nails which is similar to Pneumatic Nailer performance

2 operation modes - bump fire mode for continuous nailing and sequential fire mode for single nailing


LXT Technology LXT Technology LXT Technology

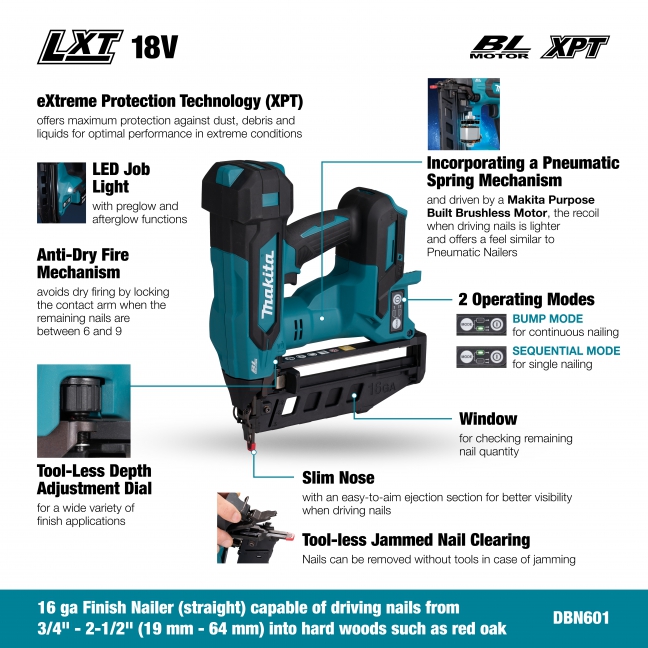

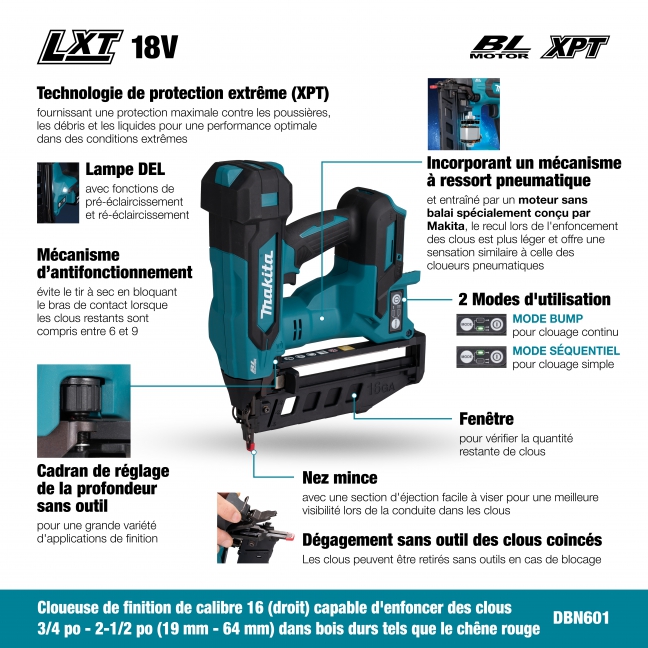

  • 2-1/2“ (64 mm) cordless Finish Nailer compatible with 16-gauge finish nails (straight type)

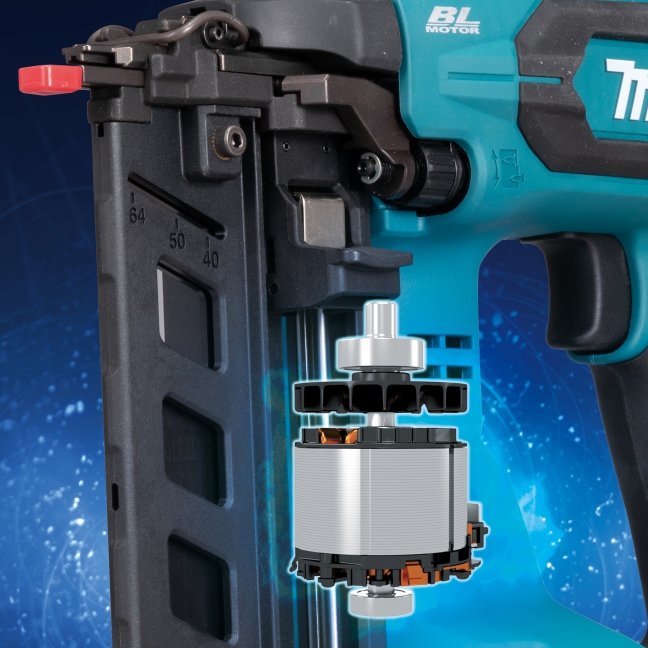

  • Features a pneumatic spring mechanism which delivers lighter recoil when driving nails which is similar to Pneumatic Nailers

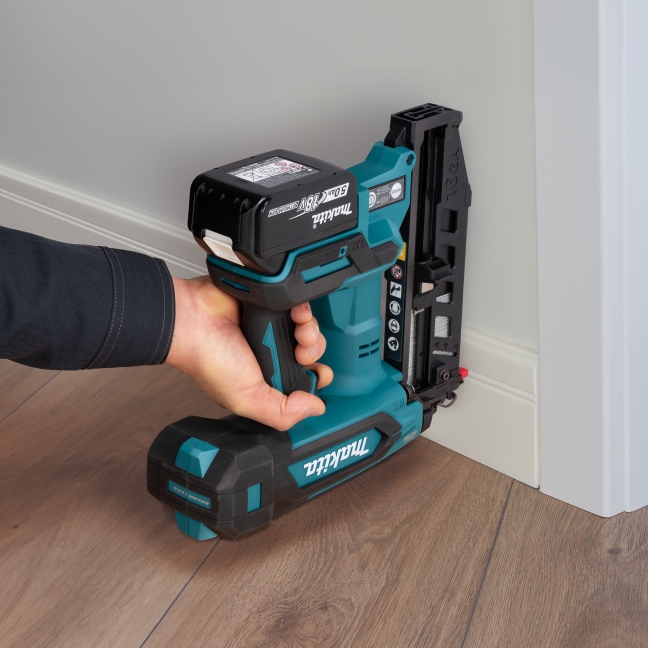

  • Suitable for interior work and other nailing tasks
  • Reliably able to drive 16-gauge finish nails up to 2-1/2” into hard woods such as red oak while maintaining sufficient work capacity
  • Eliminating the hassle of a compressor and hose, the lightweight design offers better maneuverability and zero ramp-up time
  • It is designed to ensure the center of gravity remains optimal regardless of which compatible battery is attached, making it easy to aim and reducing arm strain and fatigue
  • Rapid firing capability of 3.3 shots per second
  • Drives a range of 16-gauge finish nails from ¾” (19 mm) to 2-1/2” (64 mm)
  • Magazine capacity of up to 110 nails

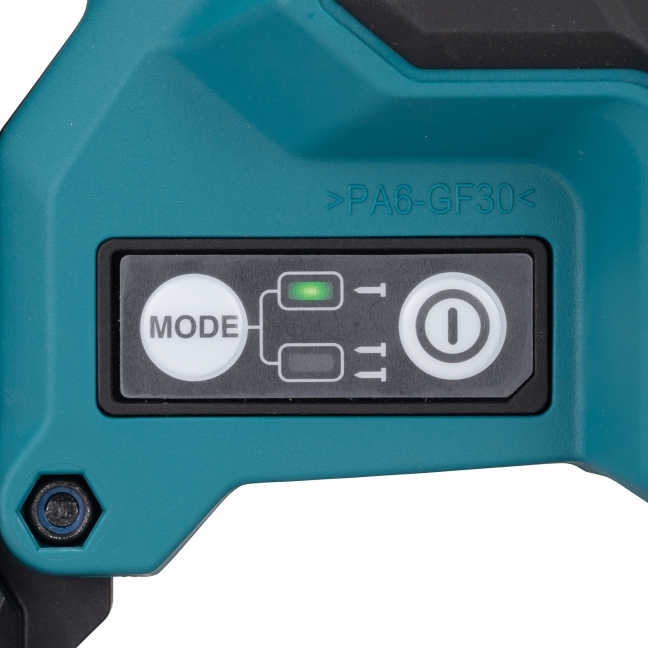

  • 2-mode selector switch for sequential or bump fire mode
  • Slim nose with an easy-to-aim ejection section for better visibility when driving nails
  • Anti-dry fire mechanism avoids dry firing by locking the contact arm when the remaining nails are between 6 and 9

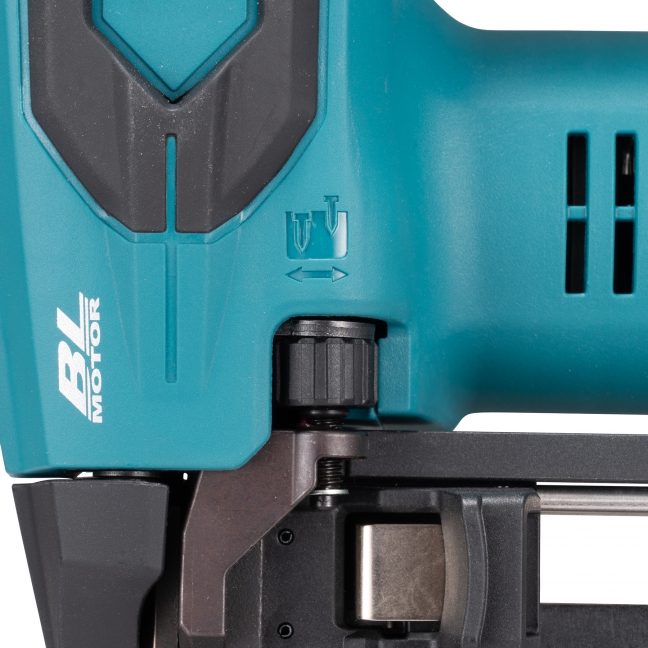

  • Easy to use tool-less depth adjustment dial for a wide variety of finish applications

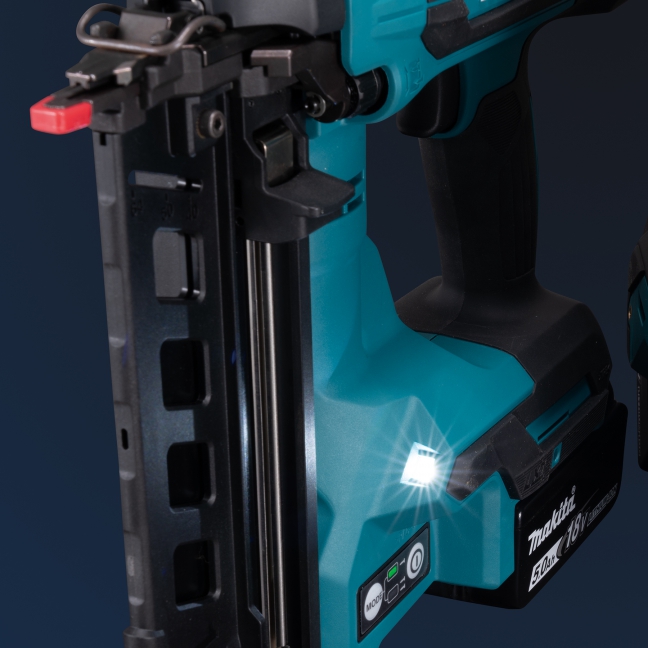

  • Built-in LED light illuminates the work area for increased precision and accuracy
  • Ergonomically designed handle with soft grip provides increased comfort and grip

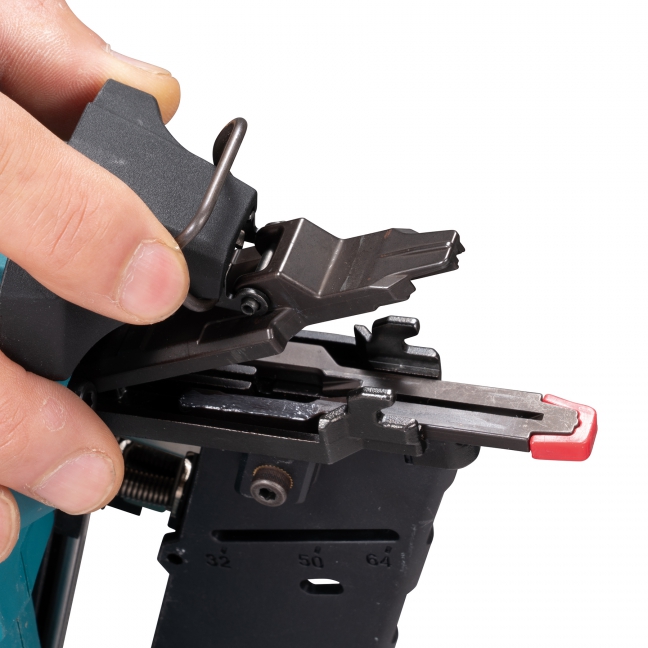

  • Nails can be removed without tools in case of jamming
  • Nail view window enables fast identification of remaining nail capacity
  • eXtreme Protection Technology (XPT) offers maximum protection against water, dust, dirt and debris for optimal performance in extreme conditions
  • The belt hook is convenient for temporarily hanging the tool
  • Rubber bumpers protect workpieces from scratches or damage

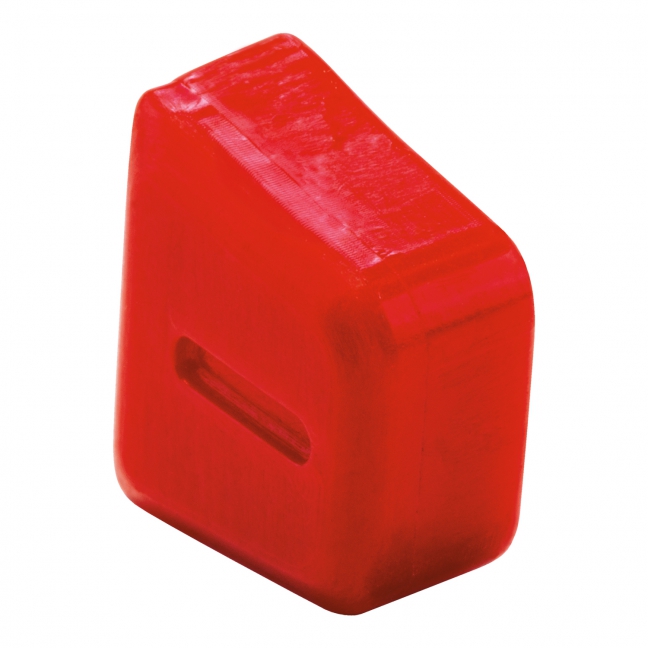

Items Included:Tool Only. Batteries and Charger Sold Separately. Nose Adapter (422B86-0), Hook (346449-3)

  • 2-1/2“ (64 mm) cordless Finish Nailer compatible with 16-gauge finish nails (straight type)
  • Features a pneumatic spring mechanism which delivers lighter recoil when driving nails which is similar to Pneumatic Nailers
  • Suitable for interior work and other nailing tasks
  • Reliably able to drive 16-gauge finish nails up to 2-1/2” into hard woods such as red oak while maintaining sufficient work capacity
  • Eliminating the hassle of a compressor and hose, the lightweight design offers better maneuverability and zero ramp-up time
  • It is designed to ensure the center of gravity remains optimal regardless of which compatible battery is attached, making it easy to aim and reducing arm strain and fatigue
  • Rapid firing capability of 3.3 shots per second
  • Drives a range of 16-gauge finish nails from ¾” (19 mm) to 2-1/2” (64 mm)
  • Magazine capacity of up to 110 nails
  • 2-mode selector switch for sequential or bump fire mode
  • Slim nose with an easy-to-aim ejection section for better visibility when driving nails
  • Anti-dry fire mechanism avoids dry firing by locking the contact arm when the remaining nails are between 6 and 9
  • Easy to use tool-less depth adjustment dial for a wide variety of finish applications
  • Built-in LED light illuminates the work area for increased precision and accuracy
  • Ergonomically designed handle with soft grip provides increased comfort and grip
  • Nails can be removed without tools in case of jamming
  • Nail view window enables fast identification of remaining nail capacity
  • eXtreme Protection Technology (XPT) offers maximum protection against water, dust, dirt and debris for optimal performance in extreme conditions
  • The belt hook is convenient for temporarily hanging the tool
  • Rubber bumpers protect workpieces from scratches or damage

Items Included: Tool Only. Batteries and Charger Sold Separately. Nose Adapter (422B86-0), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 14.8 In. X 11.4 In. X 4.7 In. Weight : 6.94 Lb.

Specifications

Battery Capacities: 18V Li-Ion
Magazine Capacities 110 nails
Gauge 16 ga
Nail Length 3/4" - 2-1/2" (19 mm - 64 mm)
Vibration Level 2.5 m/s²
Noise Level 83 dB(A)
Dimensions (L x W x H)  10-7/8" x 3-7/8" x 12-5/8" (276 mm x 98 mm x 320 mm)
Net Weight  5.5 lbs (2.5 kg)

User Manual: DBN601_DBN610 - EN FR SP.pdf

Parts Breakdown: DBN601Z - JAN2025.pdf
