LXT Technology

(Tool + Battery + Charger)


DTD157Y001

18V LXT Brushless 1/4" Sub-Compact Impact Driver, Compact x1Kit

SUB-COMPACT Size - PROFESSIONAL Power

Variable 2-Speed, Reversible

LXT Technology LXT Technology Sub Compact LXT Technology
  • Sub-compact size (only 5-1/4" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

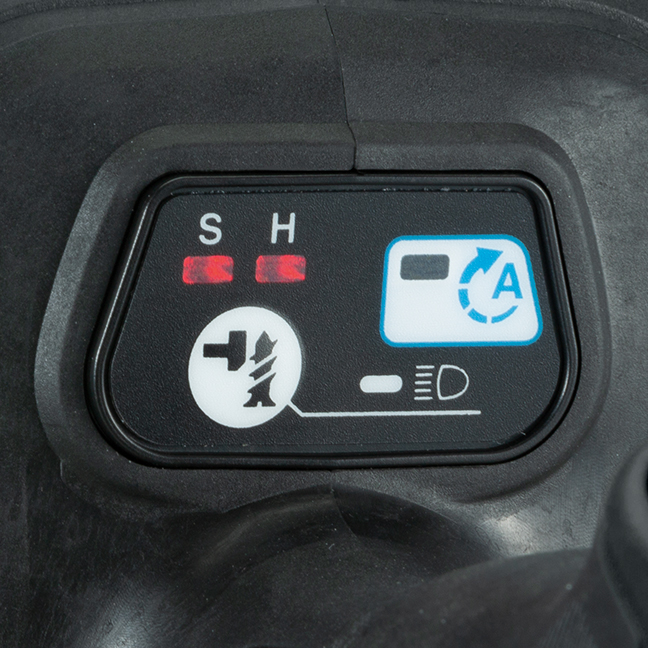

  • 2 stage impact power selection + 'Cam-Out' mode ensures precise fastening and prevents damage to fasteners
  • 'Cam-Out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

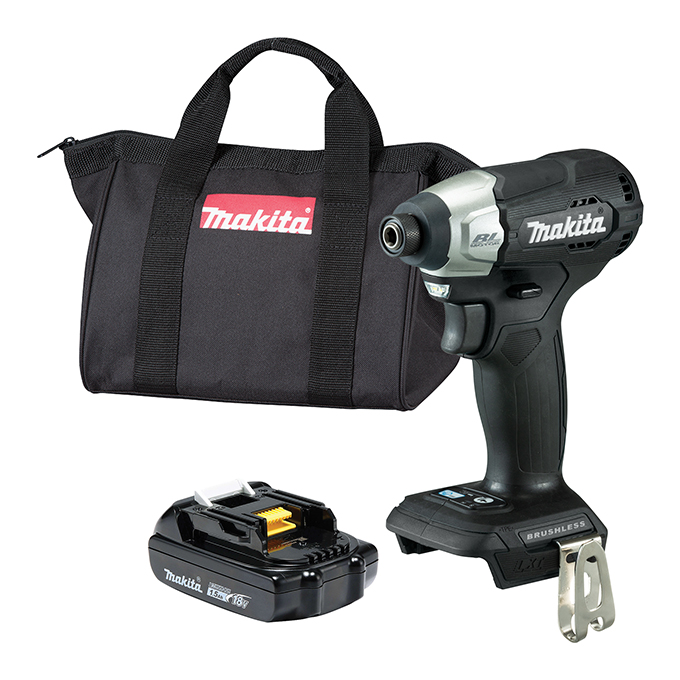

Items Included:18V (Compact) Li-Ion Battery BL1815N (196235-0), Standard Charger, Battery Cover (450128-8), Hook (346449-3),Tool Bag (832319-7)

  • Sub-compact size (only 5-1/4" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection + 'Cam-Out' mode ensures precise fastening and prevents damage to fasteners
  • 'Cam-Out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 18V (Compact) Li-Ion Battery BL1815N (196235-0), Standard Charger, Battery Cover (450128-8), Hook (346449-3),Tool Bag (832319-7)

Shipping Dimensions (Length x Width x Height) & Weight : 11.5 In. X 4.25 In. X 10.25 In. Weight : 4.8 Lb.

Specifications

Battery Capacities: 18V LXT
Hex Shank 1/4"
No Load Speed:  Hard 0 - 3,000 RPM, Soft 0 - 1,300 RPM
Impacts Per Minute:  Hard 0 - 4,200 IPM, Soft 0 - 2,000 IPM
Maximum Torque  1,240 in. lbs (140 Nm)
Vibration Level  11.5 m/s²
Noise Level 95 dB(A)
Overall Length  5-1/4" (133 mm)
Net Weight  2.7 lbs (1.2 kg)

User Manual: DTD157 - EN FR SP.pdf

Parts Breakdown: DTD157Y001_DTD157Y002_DTD157SFB_DTD157ZB - SEP2023.pdf
