UB004CZ

ConnectX Brushless 738CFM Backpack Blower, Tool Only

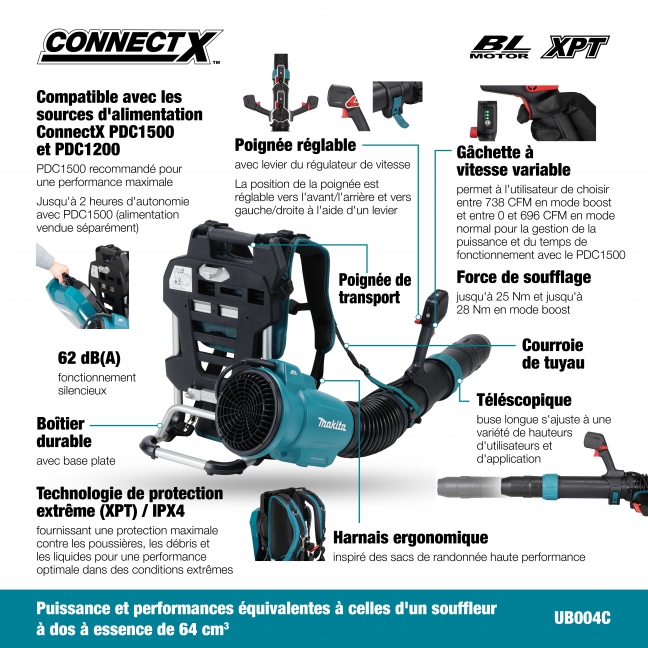

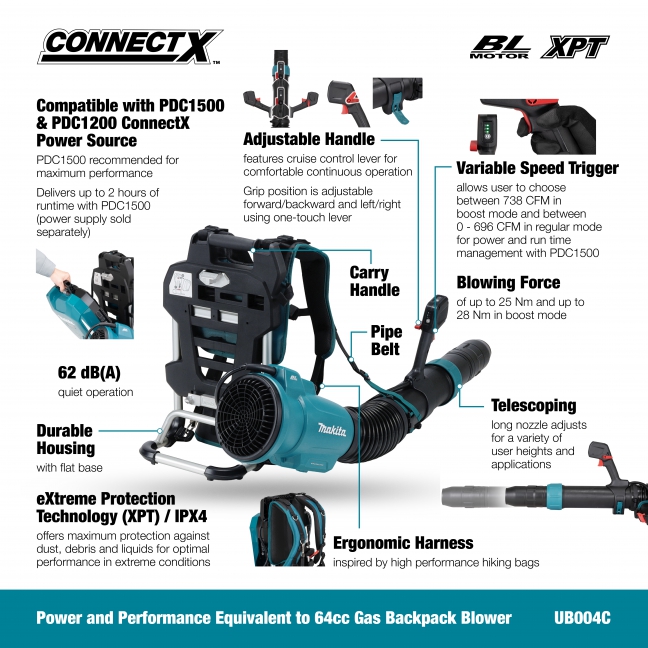

Power And Performance Equivalent to 64cc Gas Backpack Blower!

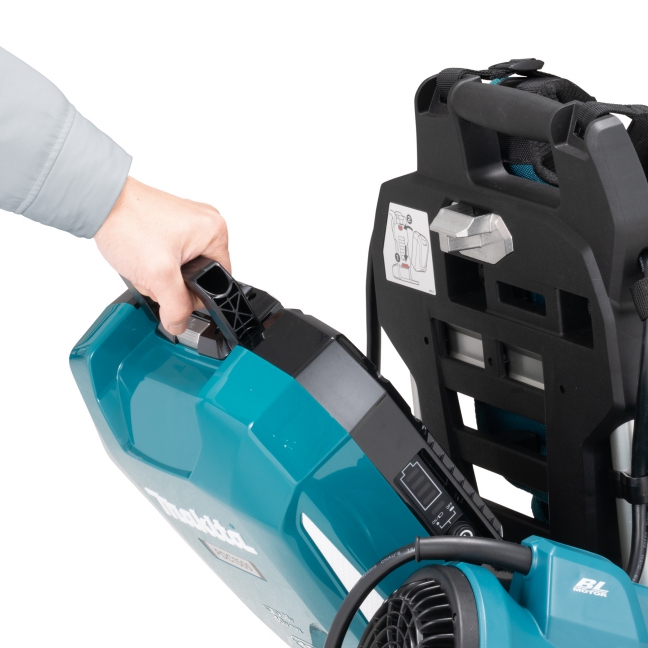

Compatible with PDC1500 & PDC1200 ConnectX Power Source

(PDC1500 Recommended for Maximum Performance)

LXT Technology LXT Technology
  • POWER: High continuous blowing force of up to 25N and up to 28N in boost mode
  • RUN TIME: Delivers up to 2 hours of runtime with PDC1500 (power supply sold separately)
  • CONTROL: Variable speed trigger allows user to choose between 738CFM in boost mode and between 0 - 696CFM in regular mode for power and run time management with PDC1500
  • DURABILITY: Features XPT (eXtreme Protection Technology / IPX4) engineered for improved dust and water resistance for operation in harsh conditions

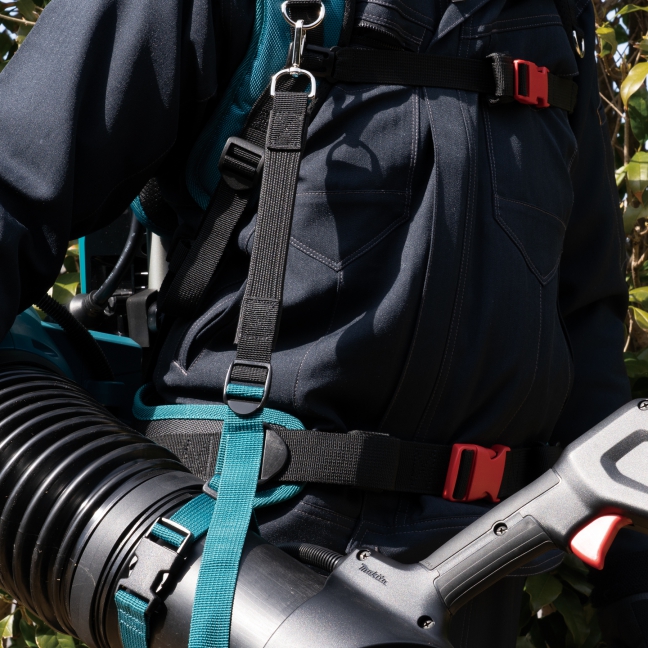

  • Features an ergonomic harness, inspired by high performance hiking bags for a perfect fit and superior operator comfort over extended use
  • Designed for quiet operation with sound pressure rating of 62 dB(A)

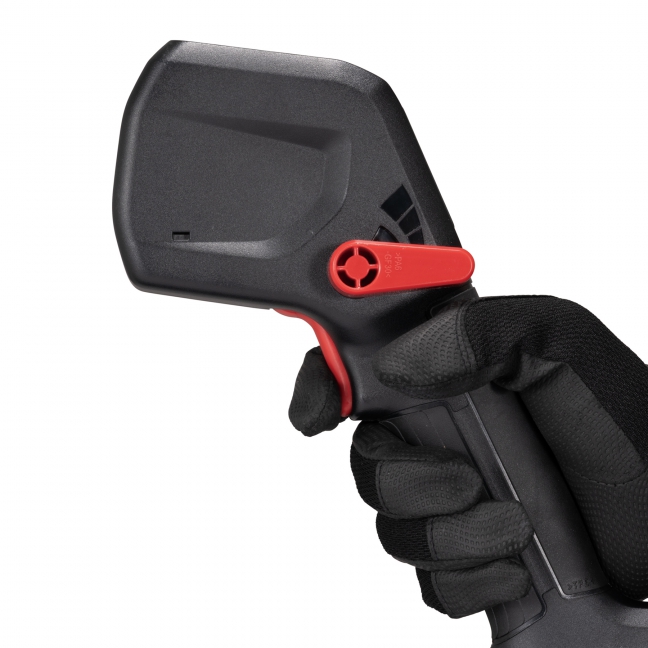

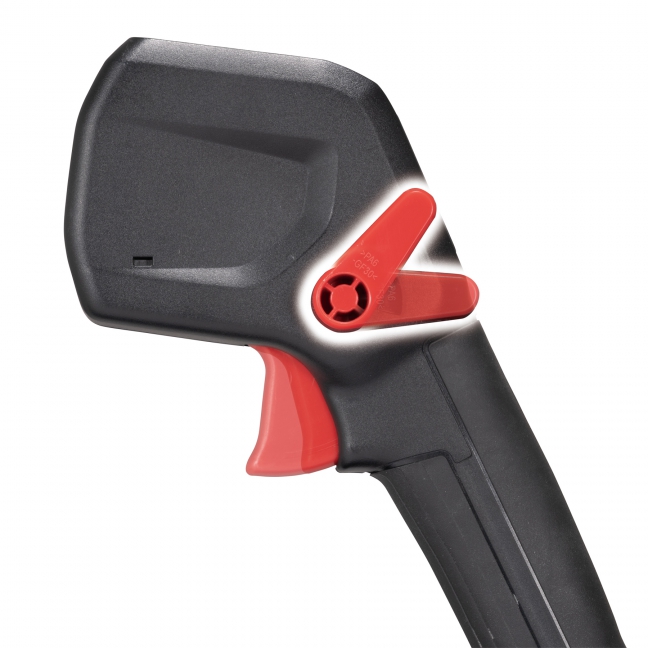

  • Adjustable handle features the cruise control lever for comfortable continuous operation
  • No gas, emissions, oil mixing or pull starts with reduced maintenance and low noise levels

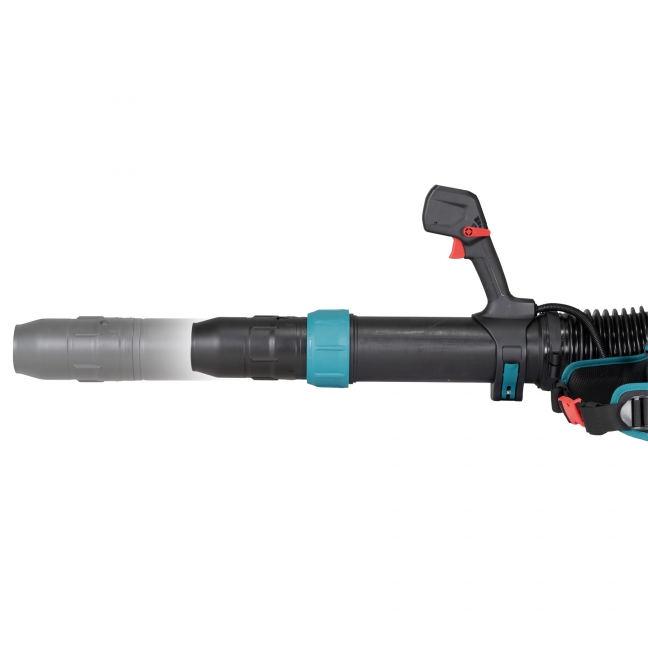

  • Telescoping long nozzle adjusts for a variety of user heights and applications

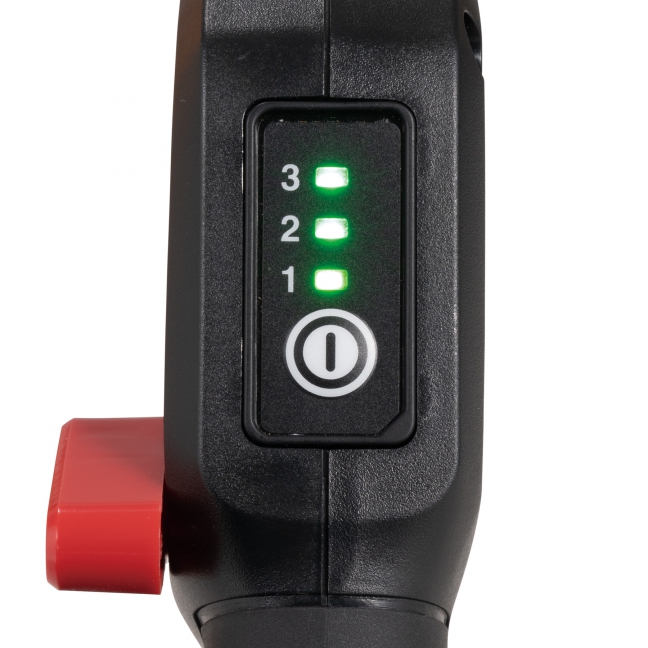

  • Power button on control handle allows the user to start the blower while wearing the blower

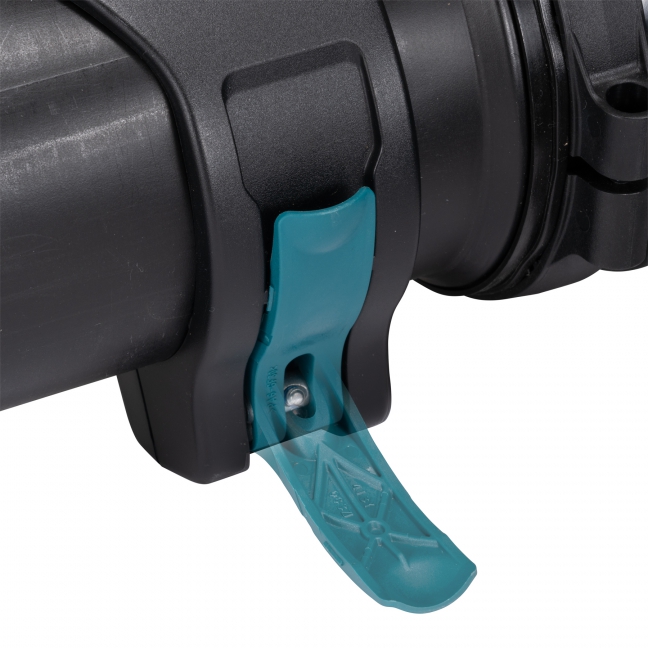

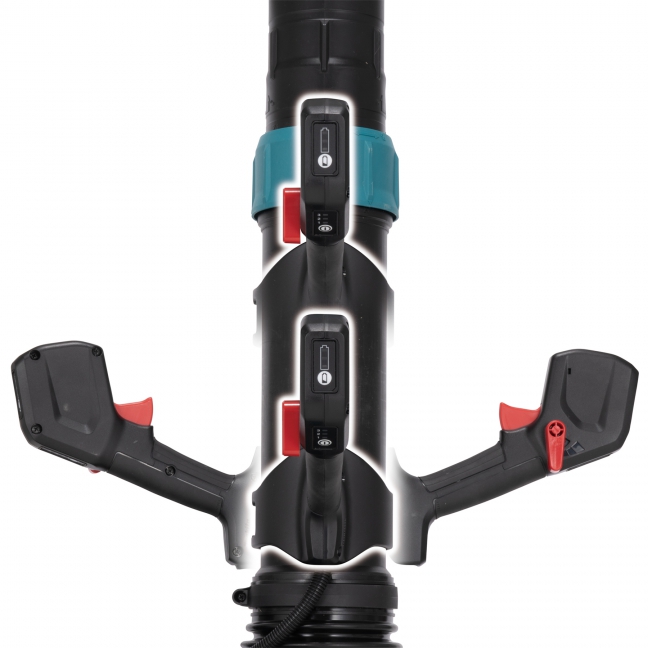

  • Tool-less control handle adjustment for user convenience
  • Rubberized soft grip provides increased comfort on the job
  • Integrated carry handle for transportation and hanging storage
  • Durable housing with flat base allows backpack blower to stand upright

Items Included:Tool Only. Batteries and Charger Sold Separately. Pipe Belt (162D25-7), End Nozzle 74 (1914H0-2), Flat Nozzle (1914H1-0), Pipe Support Belt (162D24-9), Shoulder Harness (162D22-3)

  • POWER: High continuous blowing force of up to 25N and up to 28N in boost mode
  • RUN TIME: Delivers up to 2 hours of runtime with PDC1500 (power supply sold separately)
  • CONTROL: Variable speed trigger allows user to choose between 738CFM in boost mode and between 0 - 696CFM in regular mode for power and run time management with PDC1500
  • DURABILITY: Features XPT (eXtreme Protection Technology / IPX4) engineered for improved dust and water resistance for operation in harsh conditions
  • Features an ergonomic harness, inspired by high performance hiking bags for a perfect fit and superior operator comfort over extended use
  • Designed for quiet operation with sound pressure rating of 62 dB(A)
  • Adjustable handle features the cruise control lever for comfortable continuous operation
  • No gas, emissions, oil mixing or pull starts with reduced maintenance and low noise levels
  • Telescoping long nozzle adjusts for a variety of user heights and applications
  • Power button on control handle allows the user to start the blower while wearing the blower
  • Tool-less control handle adjustment for user convenience
  • Rubberized soft grip provides increased comfort on the job
  • Integrated carry handle for transportation and hanging storage
  • Durable housing with flat base allows backpack blower to stand upright

Items Included: Tool Only. Batteries and Charger Sold Separately. Pipe Belt (162D25-7), End Nozzle 74 (1914H0-2), Flat Nozzle (1914H1-0), Pipe Support Belt (162D24-9), Shoulder Harness (162D22-3)

Shipping Dimensions (Length x Width x Height) & Weight : 23.1 In. X 22.2 In. X 19.8 In. Weight : 23.3 Lb.

Specifications

Battery Capacities 40Vmax XGT
Maximum Air Volume  0 - 695 CFM (0 - 19.7 m³/min)
Maximum Air Volume (Boost Mode) 738 CFM (20.9 m³/min)
Maximum Air Velocity 0 - 171 MPH (0 - 76.3 m/sec)
Maximum Air Velocity (Boost Mode) 181 MPH (80.7 m/sec)
No Load Speed 0 - 22,500 RPM
No Load Speed (Boost Mode) 23,800 RPM
Vibration Level 2.5 m/s²
Noise Level 82.3 dB(A)
Dimensions (L x W x H)  18-1/8" x 22-5/8" x 23" (460 mm x 575 mm x 585 mm)
Net Weight 17.0 lbs (7.7 kg)
Cushioned Waist Belt

Cushioned Waist Belt

Read More
Battery Holder Pouch

Battery Holder Pouch

Read More

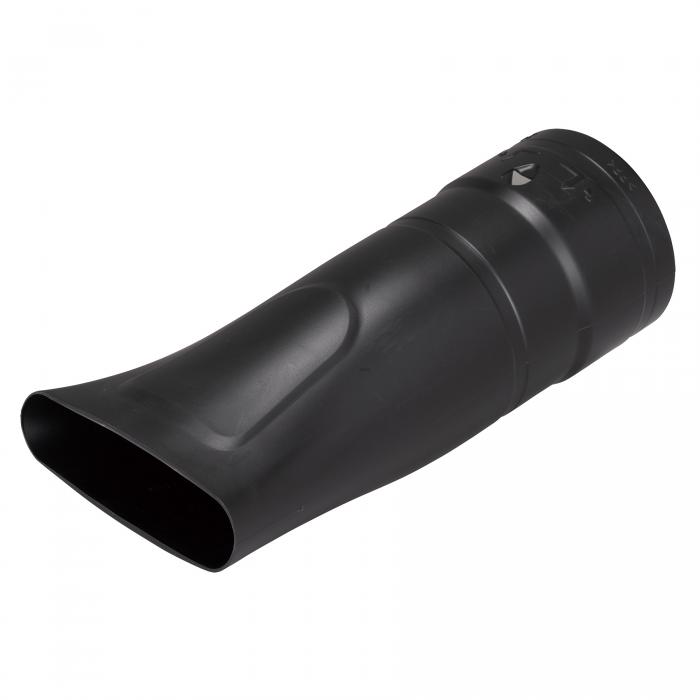

Flat End Nozzle

Flat End Nozzle

Read More

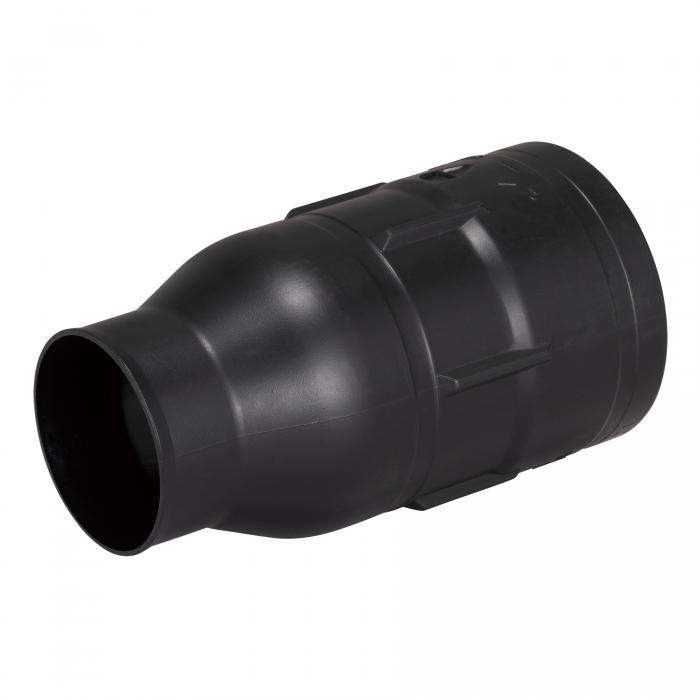

Concentrator Nozzle

Concentrator Nozzle

Read More

User Manual: UB004C - EN FR SP.pdf

Parts Breakdown: UB004CZ - JAN2025.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here
