UC030GE101

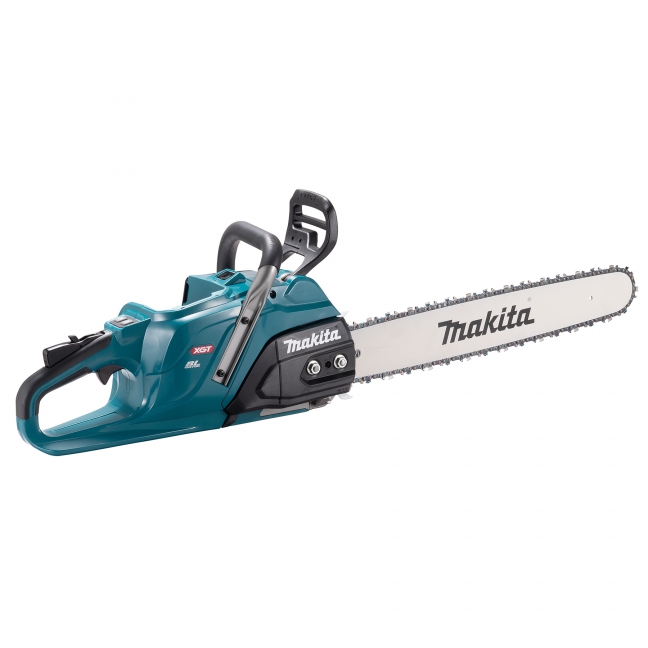

40Vmax XGT Brushless 20" Rear Handle Chainsaw, 8.0Ah x1 Kit

Power Equivalent To A 50cc Gasoline Chainsaw

Captive Bar Nuts

XGT Technology LXT Technology LXT Technology

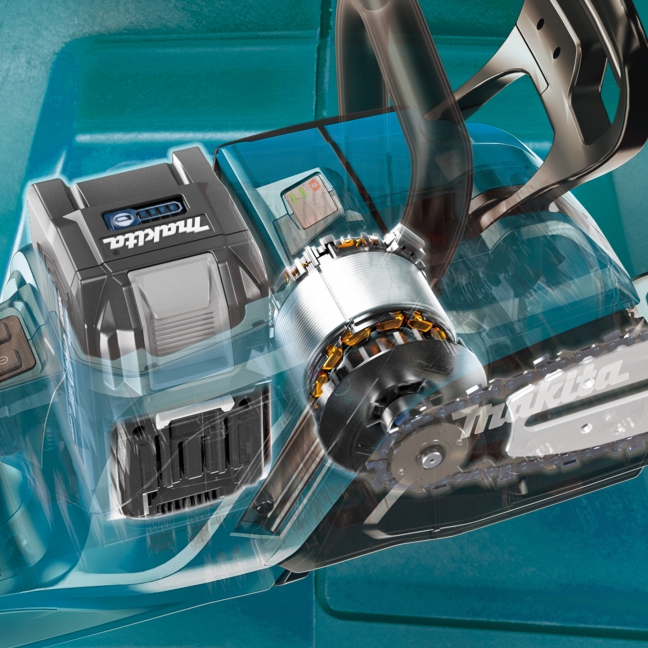

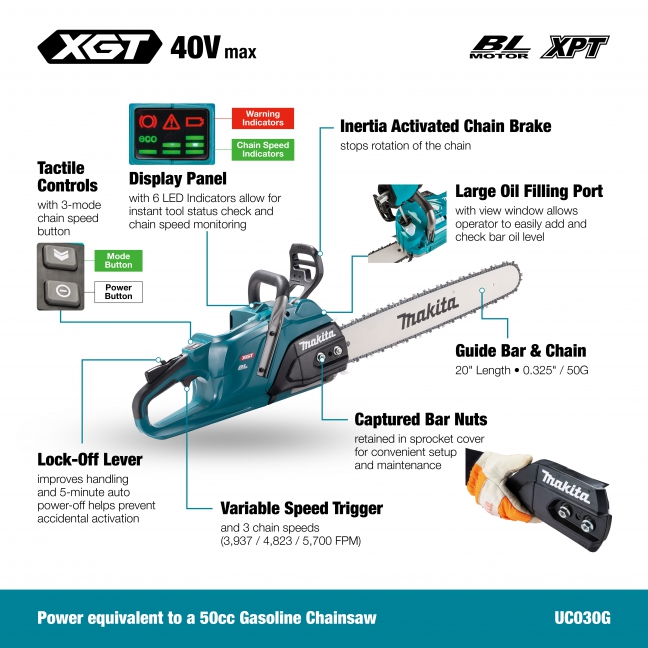

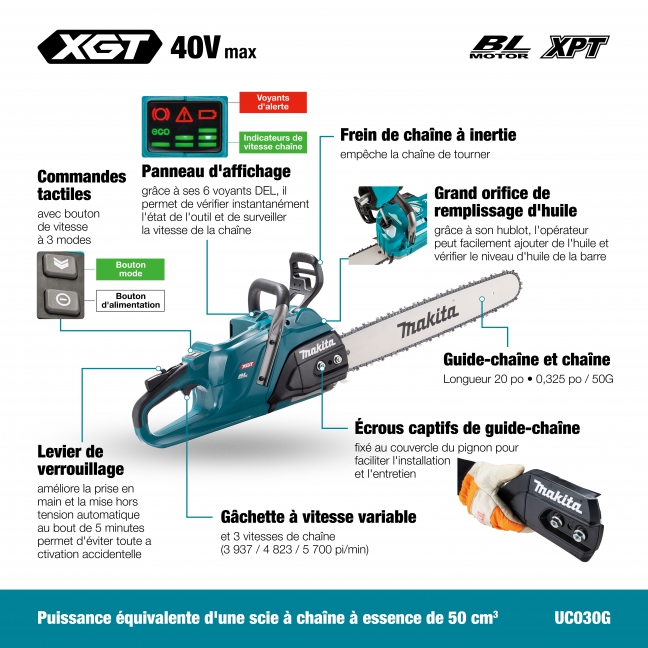

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Features XPT (eXtreme Protection Technology) engineered for improved dust and water resistance for operation in harsh conditions
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact

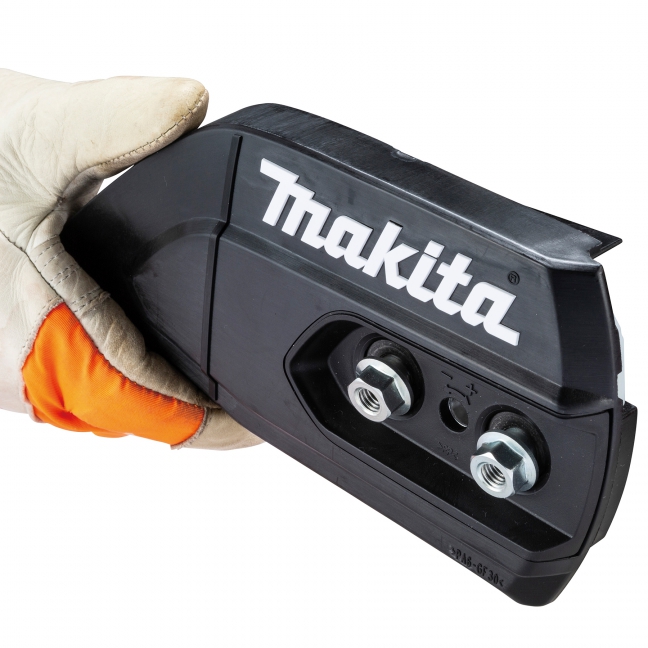

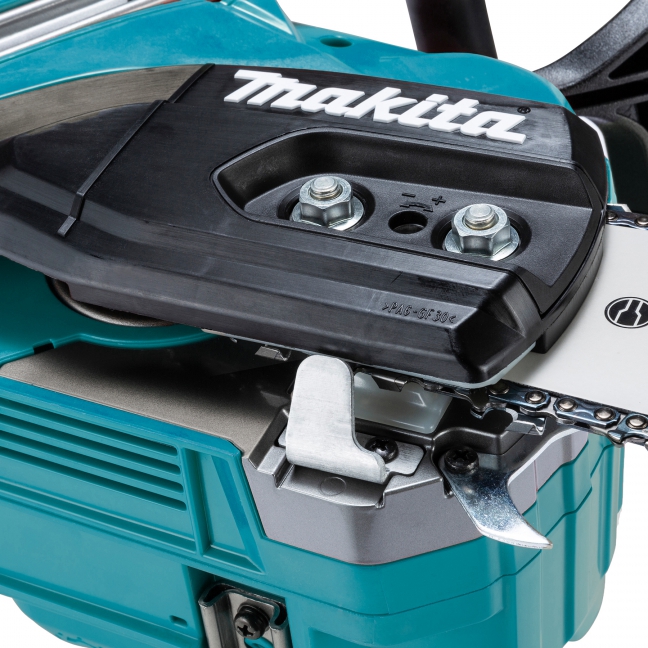

  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain

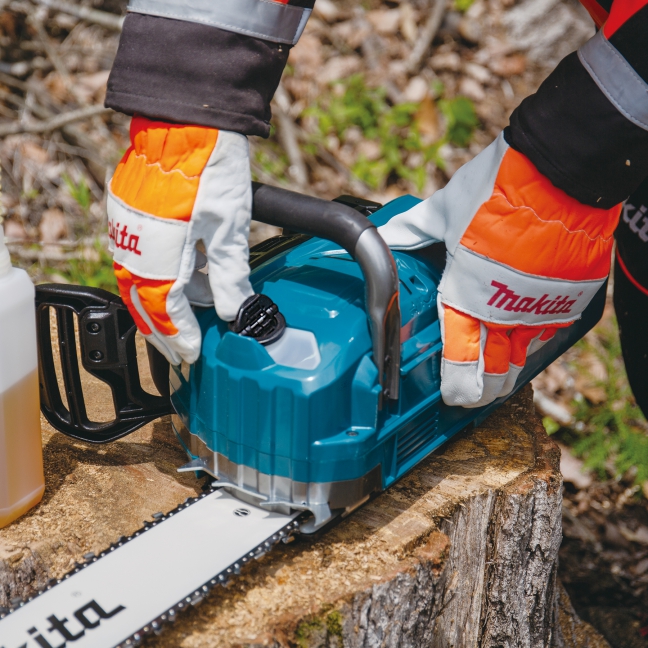

  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required

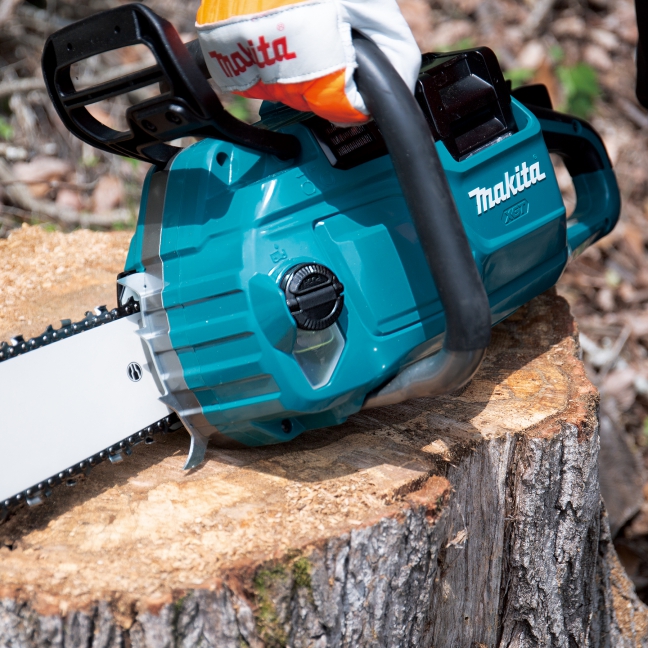

  • Chain oil view window enables operator to easily check oil level

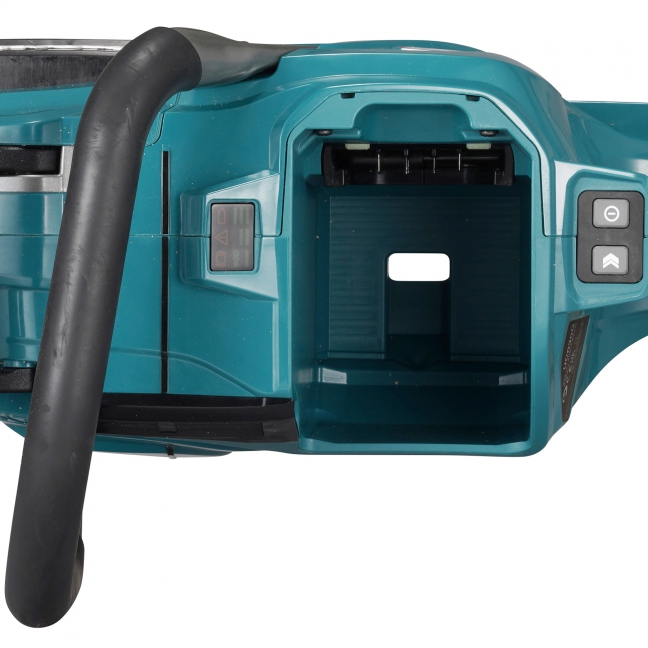

  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety

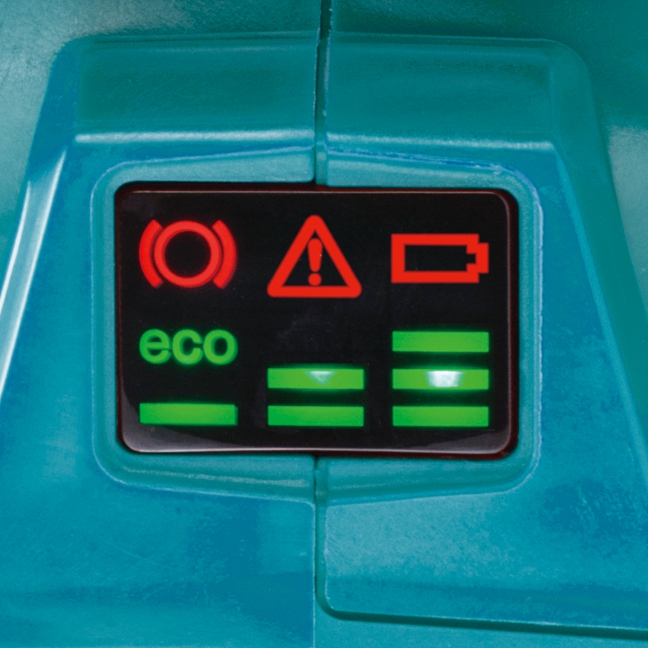

  • Selectable chain speeds (ECO/Medium/High) (0 - 5,710 FPM) with variable speed control by trigger and a mode memory function

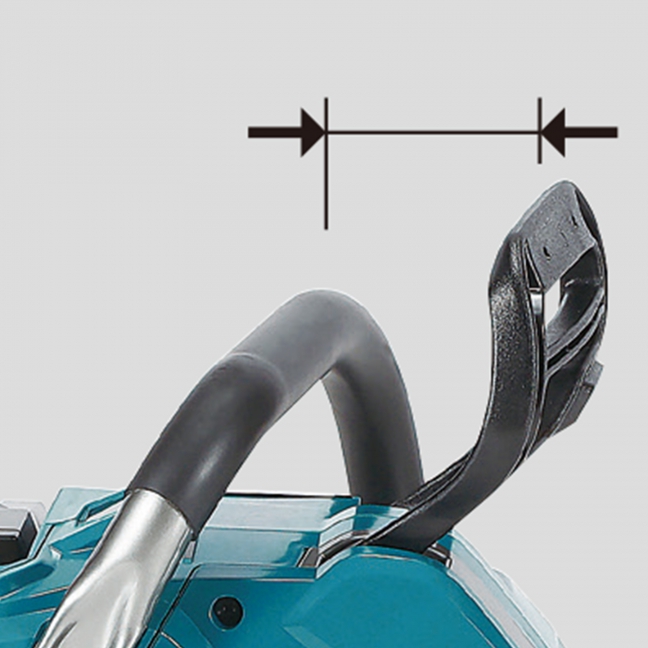

  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

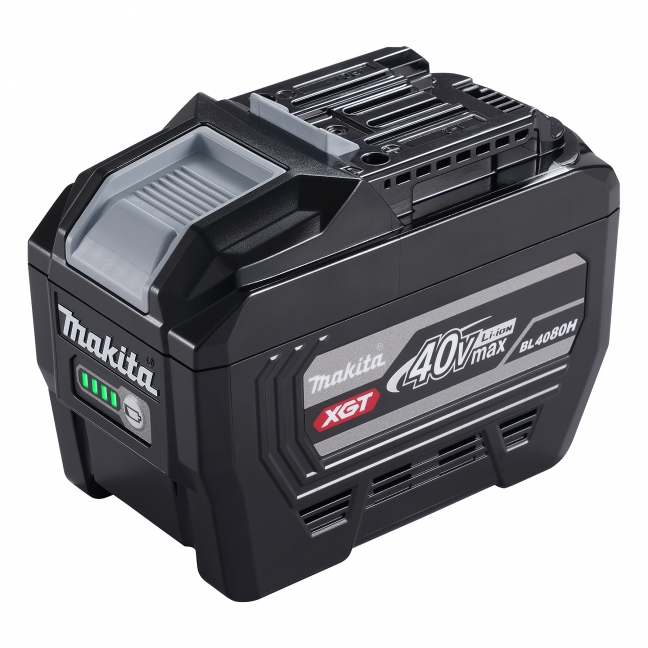

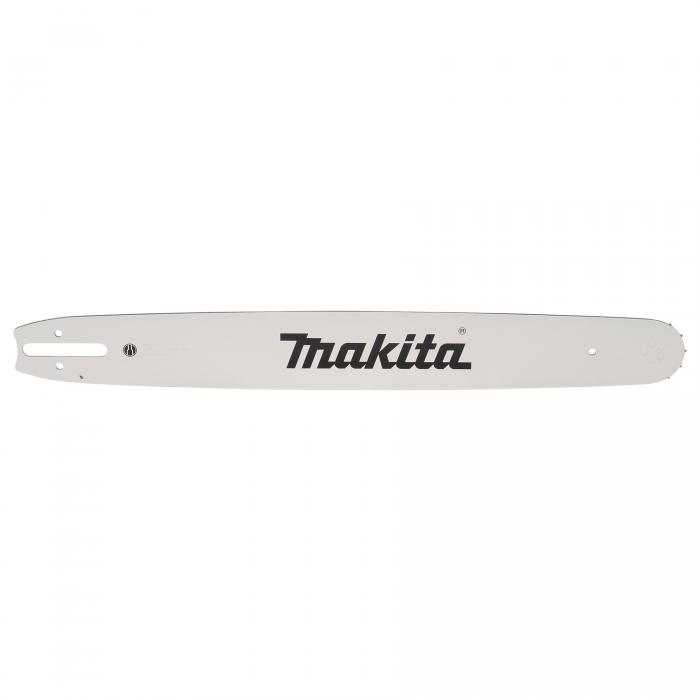

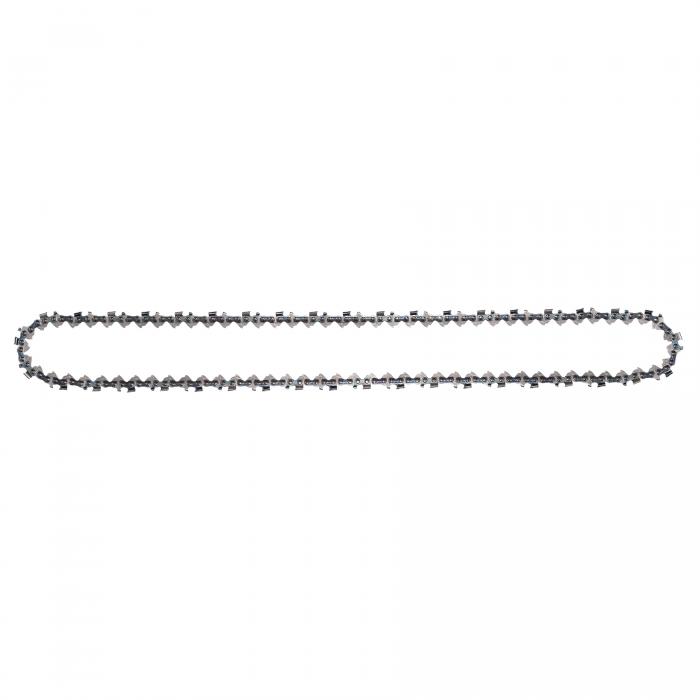

Items Included:40V Max (8.0Ah) Li-Ion Battery BL4080H (BL4080H), Rapid Charger (DC40RA), Battery Cover (412393-7), 20" Chain (1916A3-9), 20" Guide Bar (1915Y9-9), Chain Cover (4133H6-7), Wrench 13-16 (782023-7), File Holder

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Features XPT (eXtreme Protection Technology) engineered for improved dust and water resistance for operation in harsh conditions
  • Low noise level at only 104 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Selectable chain speeds (ECO/Medium/High) (0 - 5,710 FPM) with variable speed control by trigger and a mode memory function
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (8.0Ah) Li-Ion Battery BL4080H (BL4080H), Rapid Charger (DC40RA), Battery Cover (412393-7), 20" Chain (1916A3-9), 20" Guide Bar (1915Y9-9), Chain Cover (4133H6-7), Wrench 13-16 (782023-7), File Holder

Shipping Dimensions (Length x Width x Height) & Weight : 24.8 In. X 10.6 In. X 13.2 In. Weight : 25.42 Lb.

Specifications

Battery Capacities 40Vmax XGT
Guide Bar Length 20" (500 mm)
Chain Pitch / Gauge 0.325" / 50G
Chain Speed 0 - 5,710 FPM (0 - 1,740 m/min)
Vibration Level 4.1 m/s²
Noise Level 95 dB(A)
Overall Length 17-3/4" (449 mm)
Net Weight 9.9 lbs (4.5 kg)

User Manual: UC030G - EN FR SP.pdf

Parts Breakdown: UC030G - DEC2025.pdf
