Home / Tool / Electric / Metalworking / Angle Grinders (4" and 4-1/2") / GA4530


GA4530

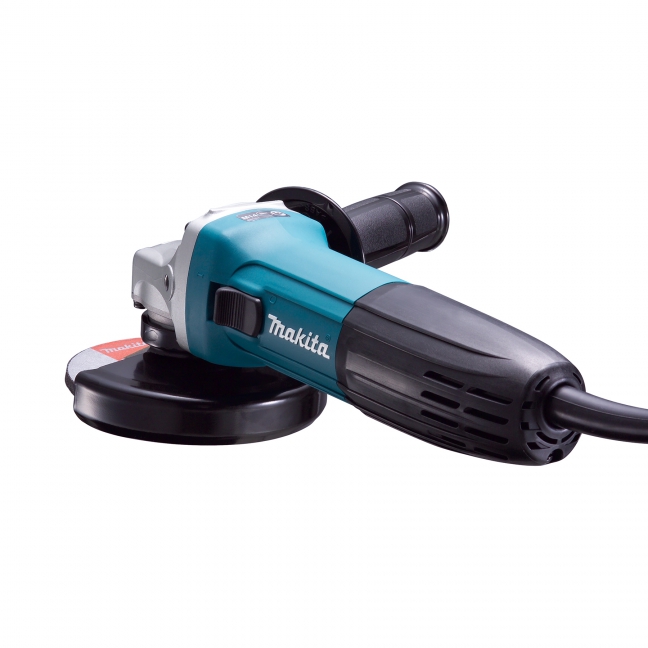

4-1/2" Angle Grinder w/Thumb Switch

Powerful 6.0 Amp motor delivers 11,000 RPM for high output power

Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life

Thumb Switch with Lock-On (AC)

  • Design: Compact design with small 2-1/4" diameter barrel and weighs only 4 lbs. for added comfort
  • Comfort: Thumb switch conveniently located for operator comfort
  • Durability: Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
  • Reliable machined gears provide twice or more longer service life
  • Protective zig-zag varnish seals the armature from dust and debris for longer tool life
  • Improved thicker coil wires are wound more closely to reduce heat and energy loss
  • All-ball bearing design and metal gear housing for durability
  • Side grip can be positioned on both sides for operator convenience
  • Gear housing can be rotated to suit most cutting and grinding applications
  • Can be connected to dust extraction system with optional dust collecting wheel guard
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
  • Double insulated

Items Included:4-1/2" Depressed Center Wheel ( 1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Lock Nut 5/8"-45 (224568-4), Inner Flange (224399-1) , Wheel Cover(123098-1), Side Handle (153504-2)

  • Design: Compact design with small 2-1/4" diameter barrel and weighs only 4 lbs. for added comfort
  • Comfort: Thumb switch conveniently located for operator comfort
  • Durability: Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
  • Reliable machined gears provide twice or more longer service life
  • Protective zig-zag varnish seals the armature from dust and debris for longer tool life
  • Improved thicker coil wires are wound more closely to reduce heat and energy loss
  • All-ball bearing design and metal gear housing for durability
  • Side grip can be positioned on both sides for operator convenience
  • Gear housing can be rotated to suit most cutting and grinding applications
  • Can be connected to dust extraction system with optional dust collecting wheel guard
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
  • Double insulated

Items Included: 4-1/2" Depressed Center Wheel ( 1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Lock Nut 5/8"-45 (224568-4), Inner Flange (224399-1) , Wheel Cover(123098-1), Side Handle (153504-2)

Shipping Dimensions (Length x Width x Height) & Weight : 13.5 In. X 5.5 In. X 4.5 In. Weight : 5.86 Lb.

Specifications

Maximum Capacities:
Grinding Wheel 4-1/2" (115 mm)
Sanding Disc 4-1/2" (115 mm)
Wire Cup Brush 3-1/2" (90 mm)
Spindle Thread 5/8"- 11 UNC
No Load Speed 11,000 RPM
AMPS (120V) 6.0
Vibration Level 7.5 m/s2
Noise Level 85 dB(A)
Overall Length 10-1/2" (266mm)
Net Weight 4.0 lbs (1.8 kg)
