DRT52Z

18V LXT Brushless 1/4" Router, Tool Only

Soft start function minimizes start-up shock and makes the tool start smoothly

Equipped with lock/unlock button (for off/on of standby mode)

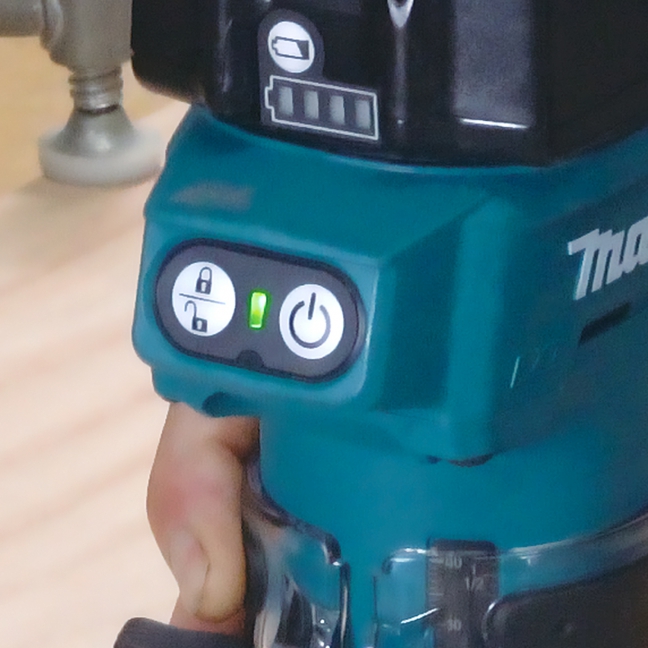

The LED lamp lights up solid to indicate that the tool is unlocked and now in standby mode while the tool is unlocked

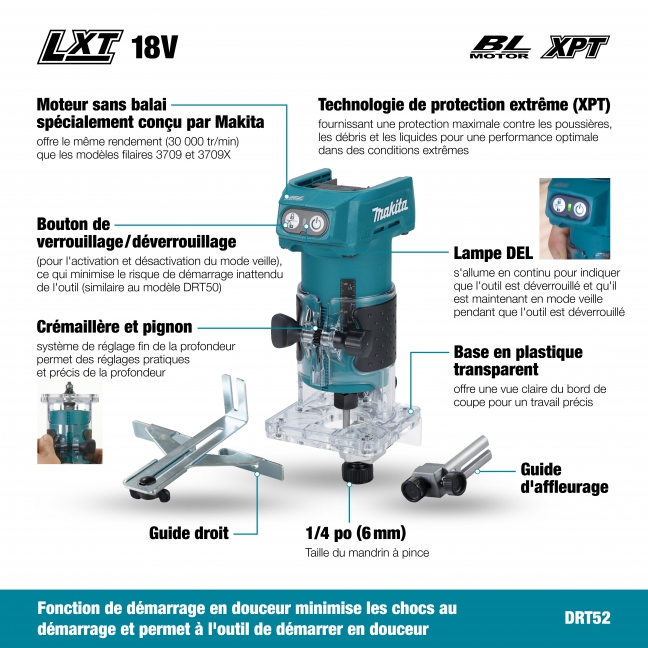

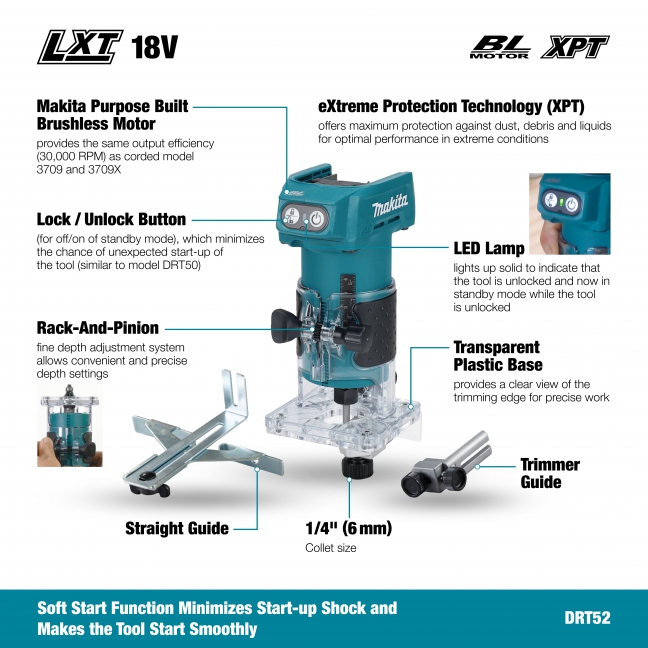

Purpose Built Genuine Makita Brushless Motor Provides Output Similar Or Superior To Corded Model 3709

LXT Technology LXT Technology LXT Technology
  • 18V LXT Brushless Cordless 1/4" Router
  • Purpose built genuine Makita brushless motor provides output efficiency similar or superior to that of the corded model 3709 and 3709X
  • The same simple specifications as corded model 3709
  • Equipped with lock/unlock button (for off/on of standby mode), which minimizes the chance of unexpected start-up of the tool (similar to model DRT50)
  • The LED lamp lights up solid to indicate that the tool is unlocked and now in standby mode while the tool is unlocked
  • Soft start function minimizes start-up shock and makes the tool start smoothly
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Collet size: 6mm, 1/4"

Items Included:Tool Only. Batteries and Charger Sold Separately. 1/4" Collet Cone (763663-0), Trimmer Base Set (194267-1), Trimmer Guide (122703-7), Straight Guide (122704-5), Straight Bit 6E (733238-9), Template Guide 10 (343577-5), Chip Deflector (418647-0), Wrench 10 (781036-5), Wrench 17 (781037-3)

  • 18V LXT Brushless Cordless 1/4" Router
  • Purpose built genuine Makita brushless motor provides output efficiency similar or superior to that of the corded model 3709 and 3709X
  • The same simple specifications as corded model 3709
  • Equipped with lock/unlock button (for off/on of standby mode), which minimizes the chance of unexpected start-up of the tool (similar to model DRT50)
  • The LED lamp lights up solid to indicate that the tool is unlocked and now in standby mode while the tool is unlocked
  • Soft start function minimizes start-up shock and makes the tool start smoothly
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Collet size: 6mm, 1/4"

Items Included: Tool Only. Batteries and Charger Sold Separately. 1/4" Collet Cone (763663-0), Trimmer Base Set (194267-1), Trimmer Guide (122703-7), Straight Guide (122704-5), Straight Bit 6E (733238-9), Template Guide 10 (343577-5), Chip Deflector (418647-0), Wrench 10 (781036-5), Wrench 17 (781037-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.2 In. X 6 In. X 5.2 In. Weight : 3.99 Lb.

Specifications

Battery Capacities: 18V Li-Ion
Collet Capacity 1/4" (6.35 mm)
No Load Speed 30,000 RPM
Vibration Level  2.5 m/s²
Noise Level  81 dB(A)
Dimensions (L x W x H) 4-3/4" x 3-1/2" x 6-13/16"  (120 mm x 90 mm x 173 mm)
Net Weight 2.0 lbs (0.9 kg)

User Manual: DRT52 - EN FR SP.pdf

Parts Breakdown: DRT52Z - SEP2024.pdf
