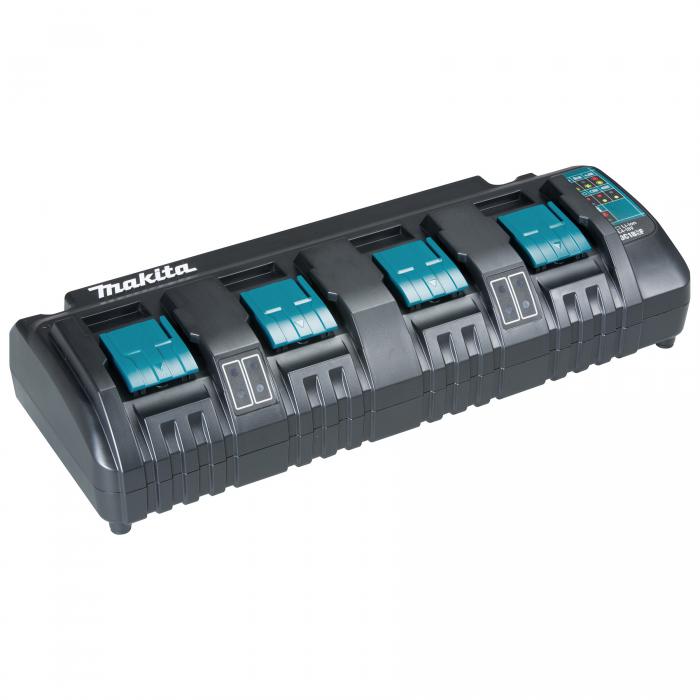

18V LXT 4-Port Multi-Charger
Owners Manual Parts Breakdown Print Print

Part No: DC18SF Click Here for 360 Degree Tool Experience
  • 18V LXT 4-Port Multi-Charger design enables multiple batteries to be charged at once.
  • Accepts 18V LXT 6.0Ah, 5.0Ah, 4.0Ah, 3.0Ah, 2.0Ah and 1.5Ah Batteries
  • DC18SF can charge two batteries at the same time.  Left two ports and right two ports are pairs respectively.  One pair can charge a battery at one time.  For example, if you insert the batteries in port 1 and 3, the charger starts charging those batteries at the same time.  However, if you insert the batteries into port 1 and 2, the charger starts charging only port 1.  Charging of port 2 will start automatically after the charging of battery in port 1 completes.
  • Optimum charging system regulates thermal, voltage and current during charging cycle
  • Compact design ideal for use in gang or jobsite boxes
  • Front facing LED lights enable easy viewing when located in gang or jobsite boxes
  • Side cord position and cut out enables multiple chargers to be placed side by side without wasted space
  • Integrated mounting holes/brackets allow charger to be fastened directly to walls, stud frames and more
  • Ideal for use in shops, facilities, trailers, trucks and gang or jobsite boxes



accessories chart


Note: Makita Canada reserves the right to change specification of products without notice. The contents of the parts breakdown and Instruction manuals may be different from current products.
