Self Feed Bits
Print Print
714120-A
714121-A
714122-A

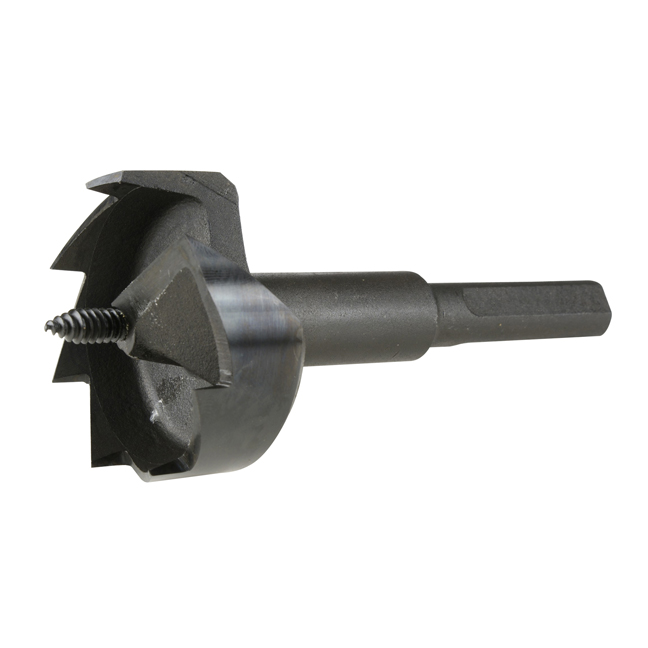

Part No: 714103-A

Used by Plumbers, Electricians and more for boring pipe and conduit holes in Wood

Heavy-Duty 1/2" Shank

  • Outlining "Spurs" accurately define hole diameter
  • Threaded screw point pulls bit into material, creating a user friendly self-feeding action
  • 1/2" shank has 3 milled flat sides for added grip when secured in drill chuck
  • 4-5/8" diameter bit features double chip lifters for fast and efficient chip removal
  • 5-1/2", 12" and 18" Extensions Available
  • Replacement Screw Points Available
    •



Self Feed Bits
Bit Diameter For Pipe Diameter Part No.

1" - 714101-A
1-1/8" 1/2" 714102-A
1-1/4" 3/4" 714103-A
1-3/8" - 714104-A
1-1/2" 1" 714105-A
1-3/4" 1-1/4" 714106-A
4-5/8" 4" 714113-A

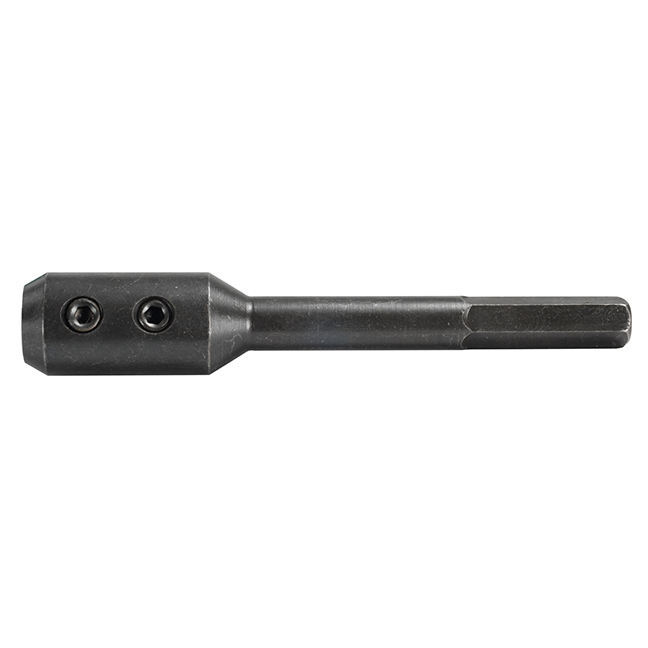

5-1/2" Extension 714120-A

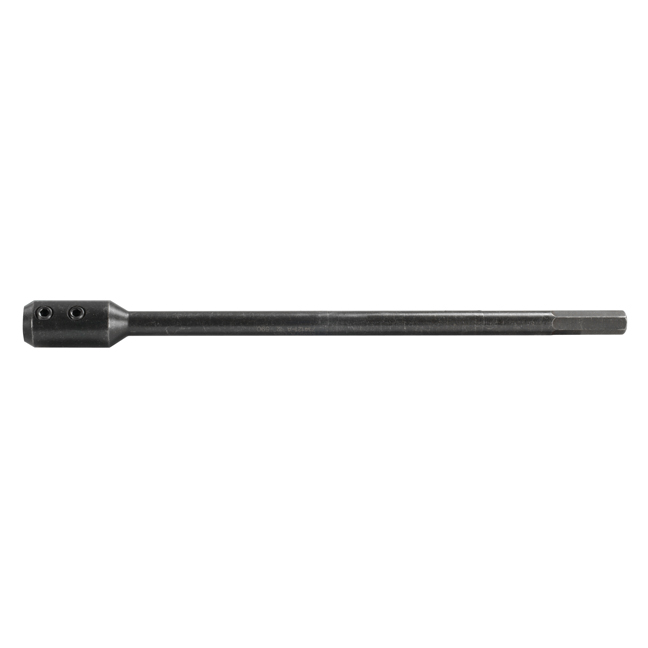

12" Extension 714121-A

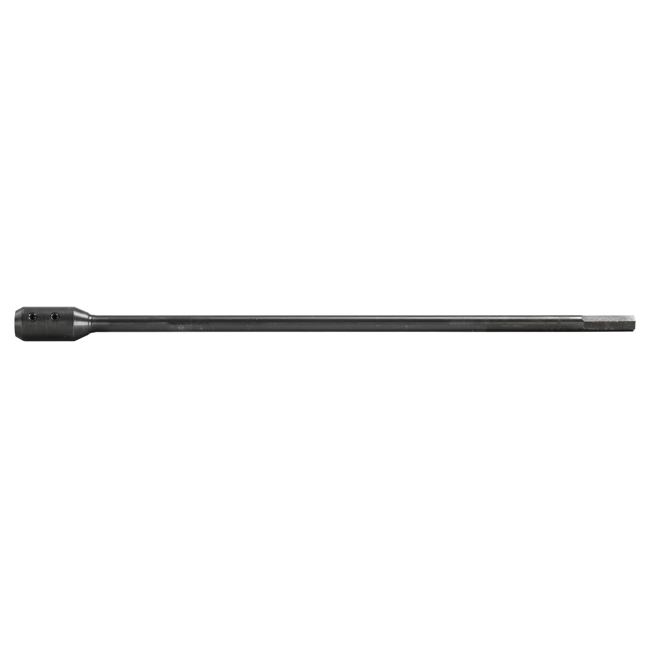

18" Extension 714122-A

Double Ended Screw Point for 1" - 3" Bits 714123-A
Double Ended Screw Point for 3-5/8" - 4-5/8" Bits 714124-A
