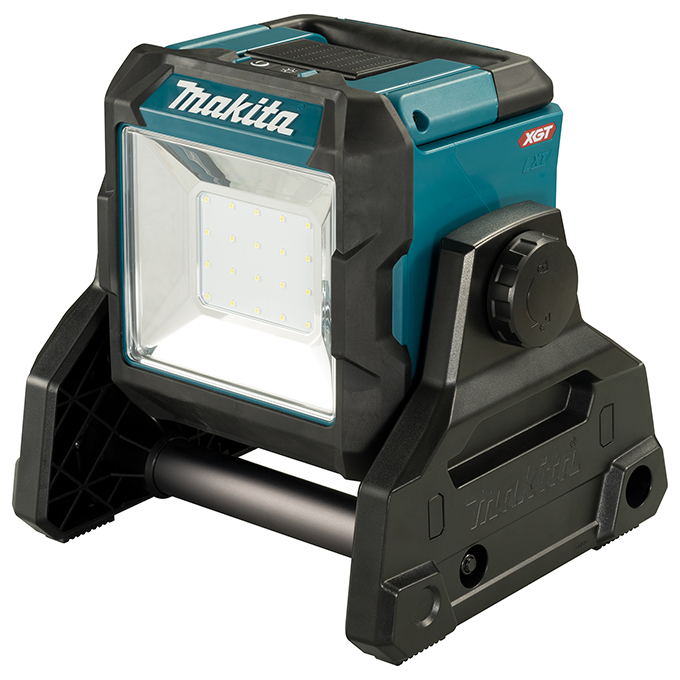

40V MAX XGT / 18V LXT Li-Ion LED Cordless Worklight
Owners Manual Parts Breakdown Print Print
Part No: ML003G
  • 2-mode operation: delivers 1,100 lumens on High mode or 450 lumens on Low mode
  • Supports both Makita's 40V MAX XGT and the 18V MAX LXT Battery platforms
  • Up to 10 hours of continuous illumination on High mode and 22 hours on low with a 4.0Ah 40V MAX XGT
  • Up to 8.5 hours of continuous illumination on High mode and 21 hours on low with a 6.0Ah 18V LXT battery on High mode
  • Dust and water-resistant construction (IP65 rated) for improved operation in harsh job site conditions
  • Daylight white L.E.D. lights effectively illuminate work area without the high heat of halogens
  • Adjusting knobs enable the user to direct the flood light to desired angle
  • Integrated handle can be used as a hanging hook for user convenience
  • Light will flash to alert user when battery charge is low
  • Heavy duty work light frame adjusts quickly and easily to enable vertical rotation through 240°
  • Conveniently located push button high/low and on/off power switches
  • Work light can be mounted on optional tripod light (GM00002073) stand individually or with two flood lights (tripod light stand not included)
  • Work light can be mounted on optional pipe clamp (GM00001396) light stand (pipe clamp light stand not included)



Battery Capacities 40V MAX XGT
Continuous Use
Approx. 10 hours on High (with BL4040B)
Approx. 8.5 hours on High (with BL1860B)
Luminous Flux
1,100 lm (high)
4500 lm (low)
Overall Dimensions
9-3/4" x 11-3/4" x 11" (249 mm x 298 mm x 280 mm)
Net Weight (no battery)
7.5 lbs. (3.4 kg)

Note: Makita Canada reserves the right to change specification of products without notice. The contents of the parts breakdown and Instruction manuals may be different from current products.
