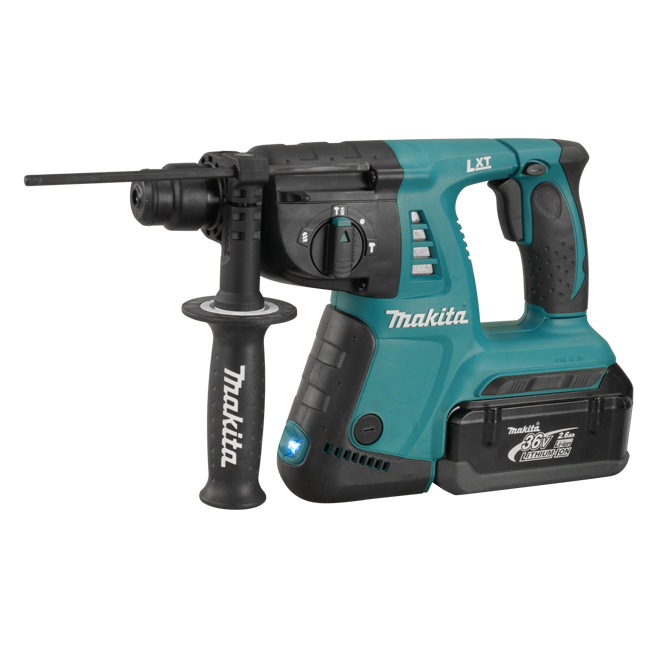

1" Cordless Rotary Hammer

Lightweight 3-Mode Rotary Hammer

Hammer And Rotation / Hammer Only / Rotation Only

SDS-PLUS Shank

Variable Speed, Reversible

Center of Gravity located close to rear handle resulting in ideal tool balance during operation
Torque Limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
Rubber Housing Bumper protects mode selector switch and gear housing from damage
LED light with Afterglow feature
One Touch Sliding Chuck enables quick and easy bit change
Sliding Rear Handle for increased vibration absorption
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Accepts BCV01 (195512-7) or BCV02 (195850-7) 18V to 36V Li-Ion Battery Converters enabling use with 2 x 18V Li-Ion Batteries

Where to buy

Items Included:2 Ea. 36V (2.6 Ah) Li-Ion Batteries BL3626 (194874-0), Charger (DC36RA), Battery Cover (451153-2), Side Handle(158057-6), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (324219-0), Plastic Carrying Case (141407-2)

194874-0

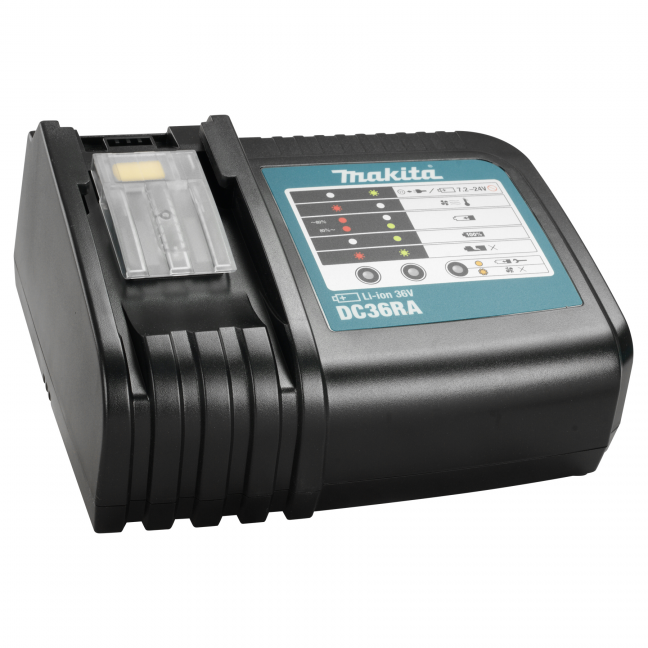

DC36RA

158057-6

443122-7

194683-7

324219-0

Images shown may not represent the full listing or the true size of included items.

Center of Gravity located close to rear handle resulting in ideal tool balance during operation
Torque Limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
Rubber Housing Bumper protects mode selector switch and gear housing from damage
LED light with Afterglow feature
One Touch Sliding Chuck enables quick and easy bit change
Sliding Rear Handle for increased vibration absorption
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Accepts BCV01 (195512-7) or BCV02 (195850-7) 18V to 36V Li-Ion Battery Converters enabling use with 2 x 18V Li-Ion Batteries

Items Included: 2 Ea. 36V (2.6 Ah) Li-Ion Batteries BL3626 (194874-0), Charger (DC36RA), Battery Cover (451153-2), Side Handle(158057-6), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (324219-0), Plastic Carrying Case (141407-2)

Shipping Dimensions (Length x Width x Height) & Weight : 22.24 In. X 5.79 In. X 17.72 In. Weight : 25.6 Lb.

Specifications

Battery	36V (2.6 Ah) Li-Ion
Capacities:
Concrete	1” (26 mm)
Steel	1/2” (13 mm)
Wood	1-1/4" (32 mm)
No Load Speed	0 – 1,200 RPM
Blows Per Minute	0 – 4,800 BPM
Impact Energy	3.0 J (2.2 ft. lbsss)
Vibration Level	13.5 m/s²
Noise Level	91 dB(A)
Overall Length	14-1/4” (363 mm)
Net Weight	9.9 lbsss (4.5 kg)
