PC5001C

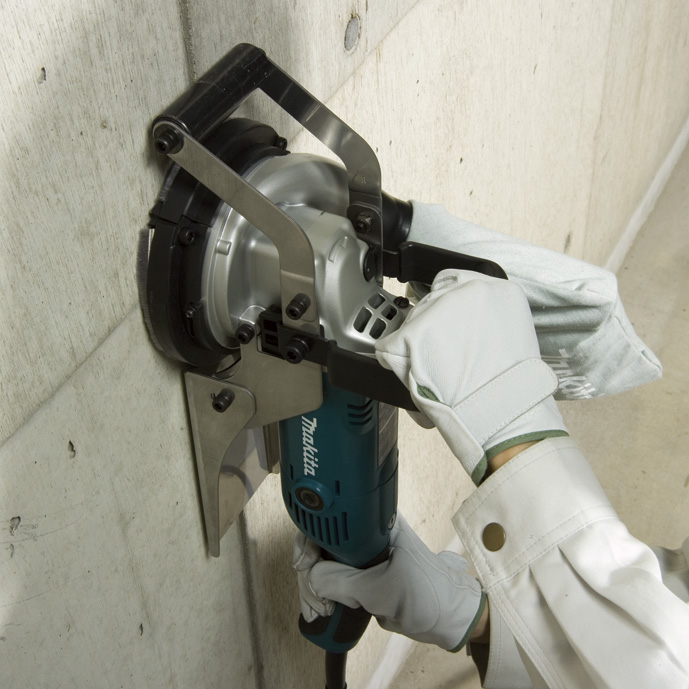

5" Concrete Planer


  • Auxiliary Planing Base and Front Roller enables planing to a consistent depth
  • Electronic Speed Control maintains constant speed under heavy load
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Electronic Current Limiter eliminates motor burnout due to current overload
  • Anti-Restart feature prevents tool from operating if it is plugged in when locked in the on position
  • LED Light indicates active power supply and activation of Anti-Restart feature
  • Easy to operate larger trigger switch with lock on feature
  • Removable front dust cap enables operator to plane flush to walls and corners

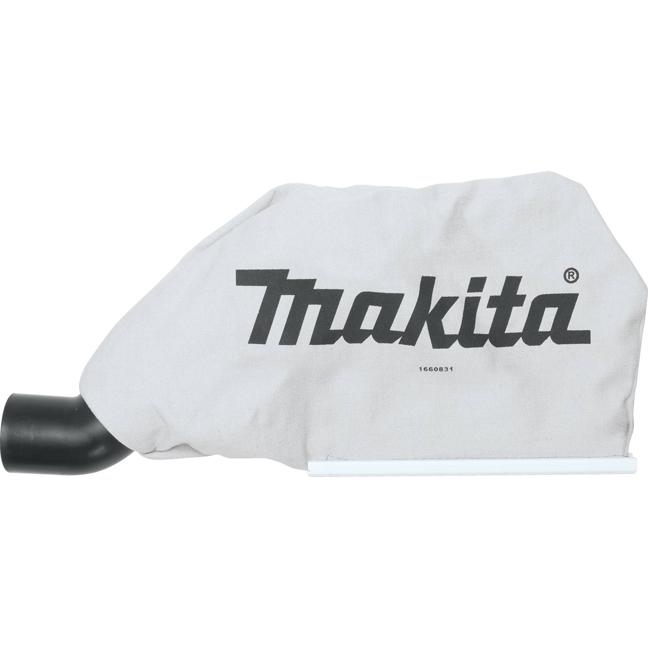

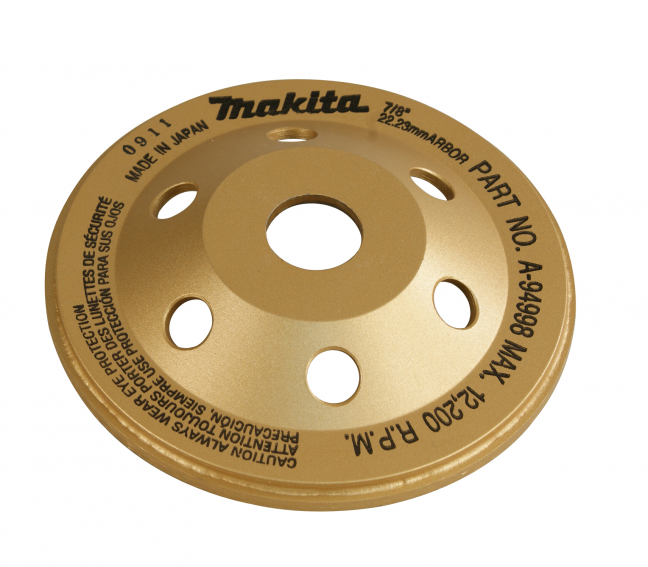

Items Included:D-Style Front Handle (273529-1), 5" Offset Finish Diamond Wheel (A-94998), Dust Bag Assembly (122853-8), Wrench Holder 5.6 (410047-0), Hex Wrench 5 (783203-8), Lock Nut Wrench 28 (782425-7),  Steel Carrying Case (140073-2)

  • Auxiliary Planing Base and Front Roller enables planing to a consistent depth
  • Electronic Speed Control maintains constant speed under heavy load
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Electronic Current Limiter eliminates motor burnout due to current overload
  • Anti-Restart feature prevents tool from operating if it is plugged in when locked in the on position
  • LED Light indicates active power supply and activation of Anti-Restart feature
  • Easy to operate larger trigger switch with lock on feature
  • Removable front dust cap enables operator to plane flush to walls and corners

Items Included: D-Style Front Handle (273529-1), 5" Offset Finish Diamond Wheel (A-94998), Dust Bag Assembly (122853-8), Wrench Holder 5.6 (410047-0), Hex Wrench 5 (783203-8), Lock Nut Wrench 28 (782425-7),  Steel Carrying Case (140073-2)

Shipping Dimensions (Length x Width x Height) & Weight : 21.69 In. X 9.09 In. X 11.81 In. Weight : 25.13 Lb.

Specifications

Wheel Diameter 5" (125 mm)
Wheel Type Offset Diamond
Hole Diameter 7/8" (22.23 mm)
No Load Speed 10,000 RPM
AMPS (120V) 10 A
Vibration Level 12.5 m/s2
Noise Level 89 dB(A)
Cord Length 16.4 ft. (5.0 m)
Overall Length 18-13/16" (479 mm)
Net Weight 11.2 lbs (5.1 kg)
