HG001GZ01

40Vmax XGT Heat Gun, Tool Only

Performance equivalent to that of AC models


XGT Technology

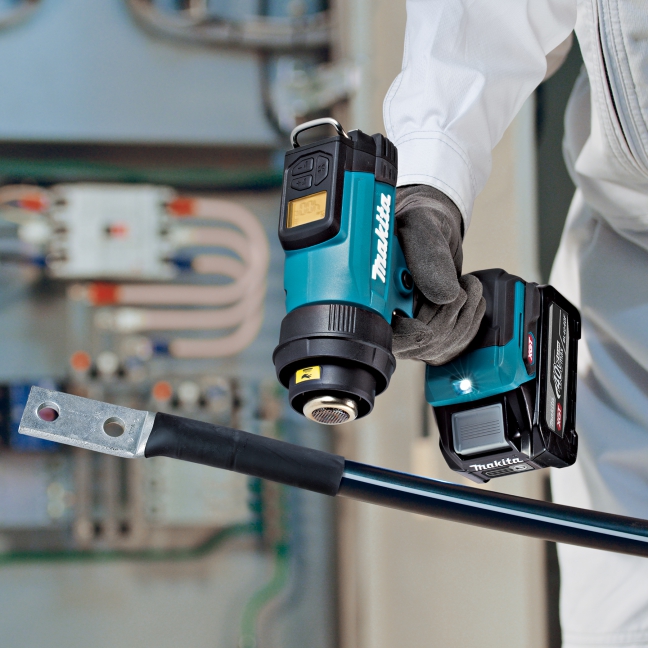

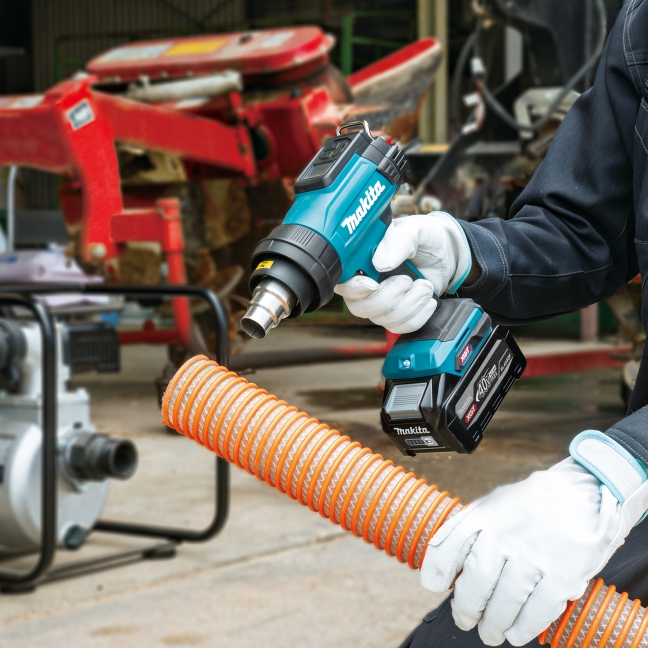

  • The tool offers excellent efficiency in demanding tasks requiring high temperature and air volume, such as heat welding waterproof sheets and shrinking heat-shrink tubing for thick cables with diameters of 1” (25mm) or more, including power lines
  • A maximum temperature of 600°C (1,112°F) and air volume of 7.1 CFM (200 l/min) for fast PVC welding and efficient shrinking of thick cables

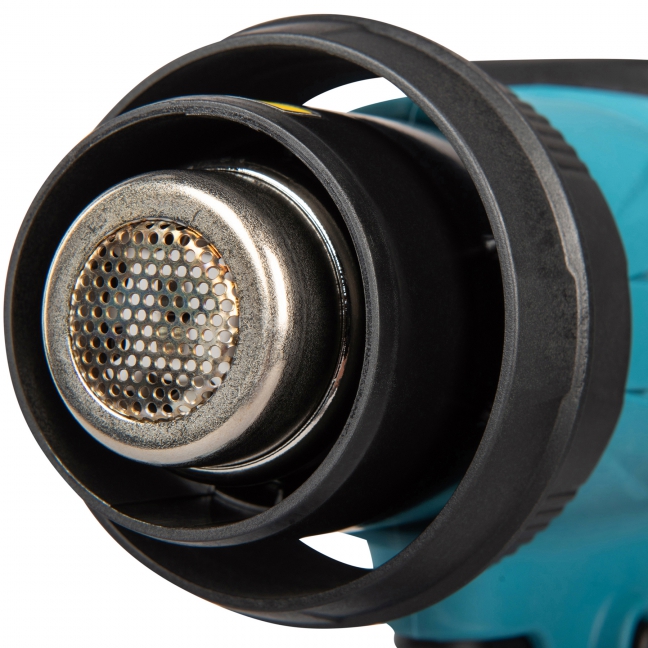

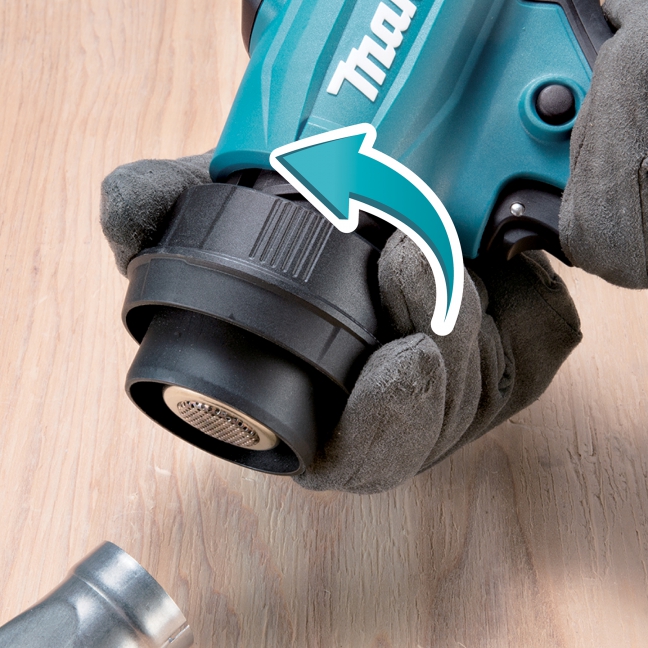

  • The quick-release mechanism allows tool-free nozzle removal without touching hot metal parts.
  • The tool maintains constant temperature and airflow by adjusting the current when battery voltage drops.

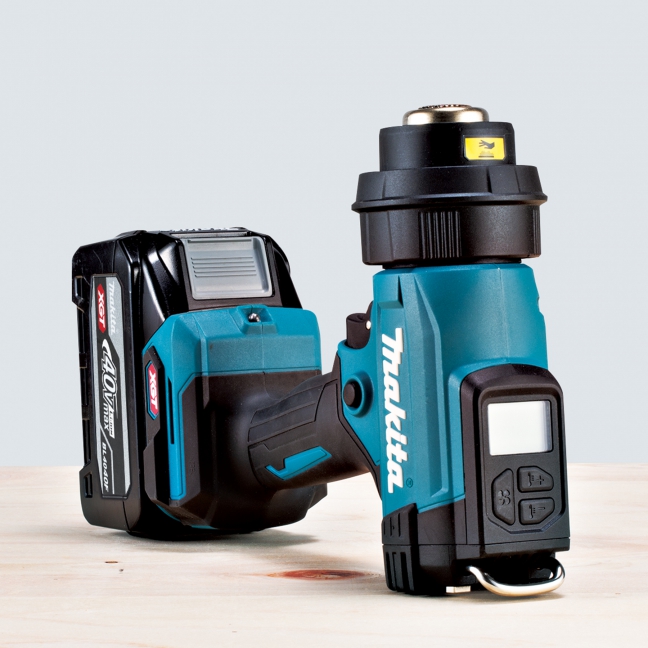

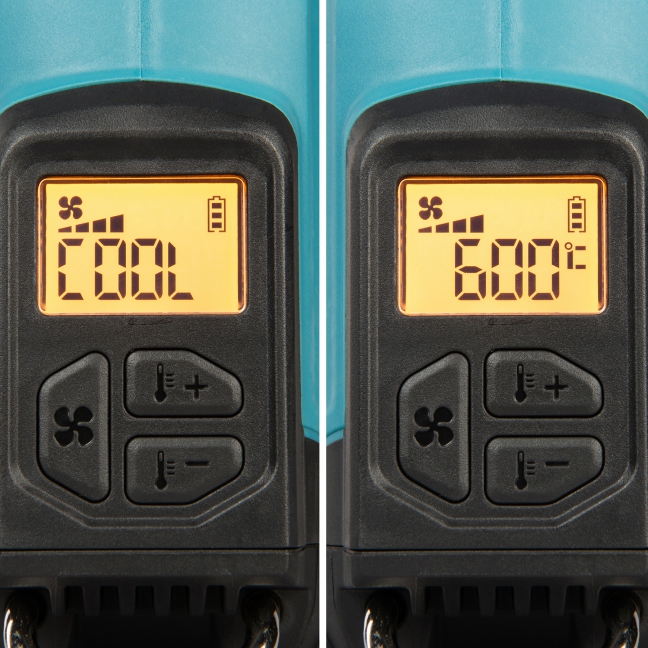

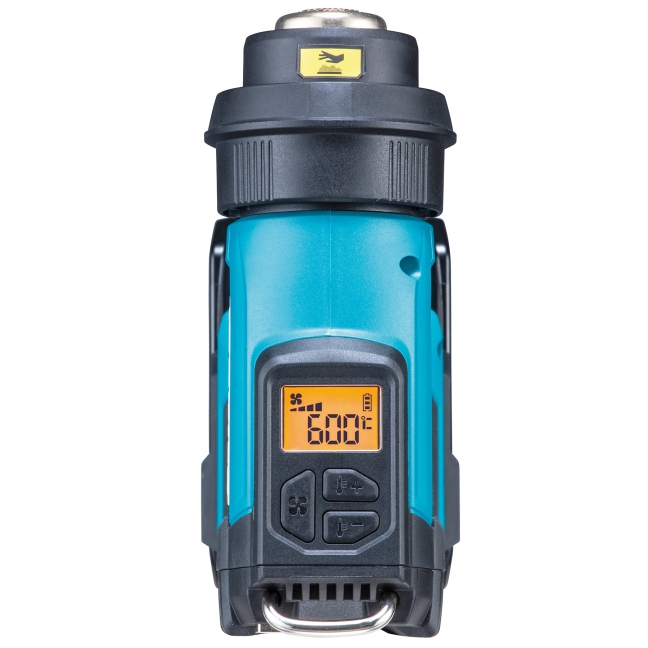

  • Equipped with a backlit LCD enables precise adjustment of temperature and airflow.
  • The display includes numeric temperature (°C/°F), airflow level icons, battery fuel gauge with low-battery blinking, and error indicators.
  • Memory and maximum temperature control functions enhance usability.

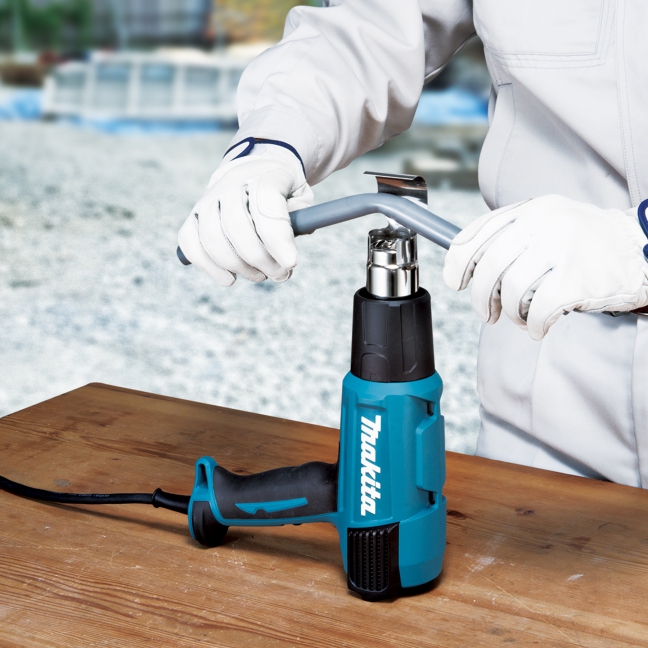

  • Compatible with existing nozzles for our DC and AC models, offering greater versatility.

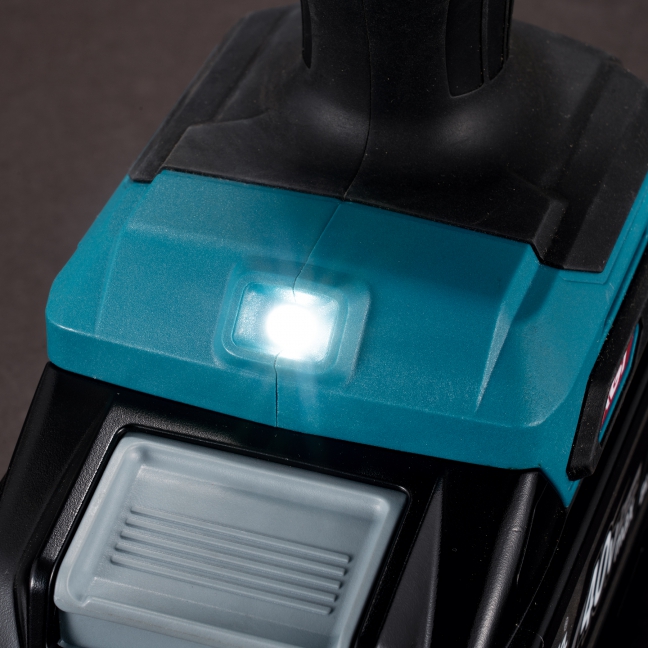

  • A single LED job light with after-glow function effectively illuminates the work area.

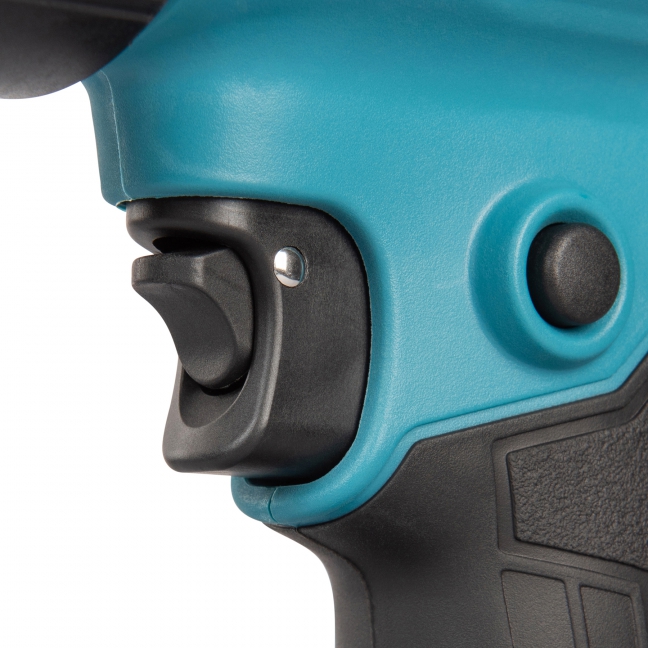

  • Equipped with a lock-on button for comfortable continuous operation

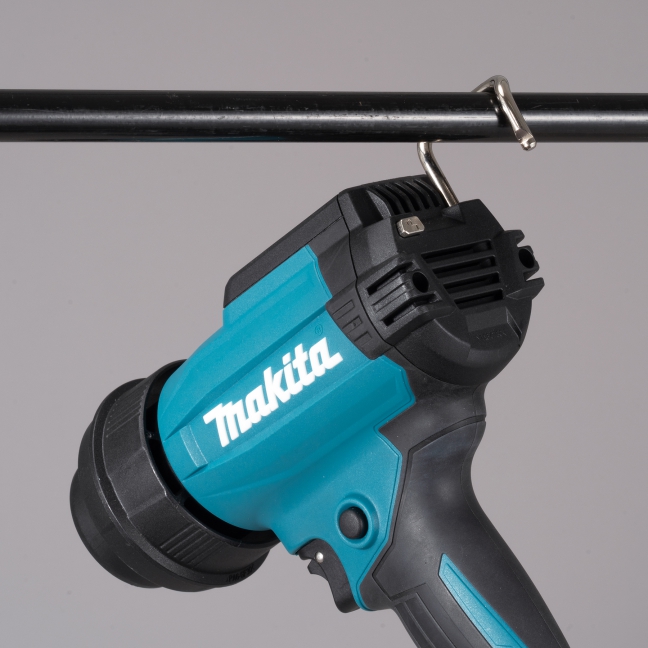

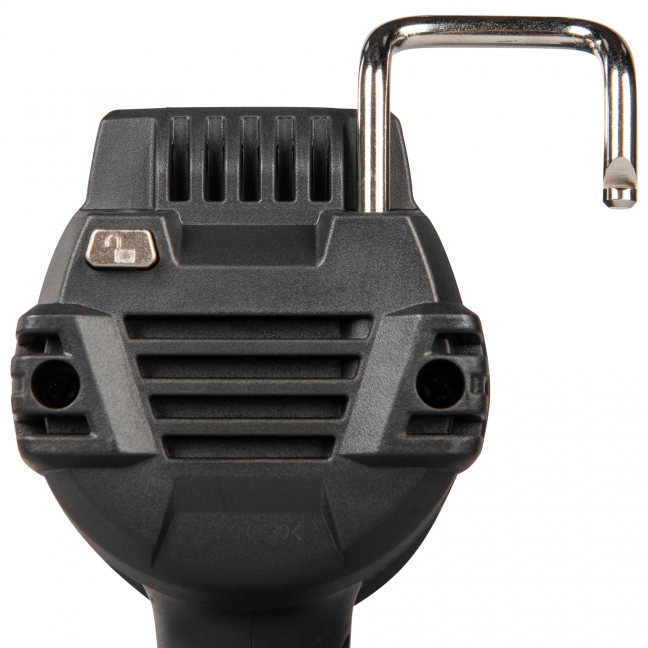

  • Equipped with a hanging hook for easier storage and improved user convenience
  • Rubberized soft grip provides increased comfort on the job

Items Included:Tool Only. Batteries and Charger Sold Separately. Reduction Nozzle (PR00000031), Reflector Nozzle (PR00000030), Wide-Slot Nozzle (PR00000029), Glass Protection Nozzle (PR00000028), Plastic Carrying Case

  • The tool offers excellent efficiency in demanding tasks requiring high temperature and air volume, such as heat welding waterproof sheets and shrinking heat-shrink tubing for thick cables with diameters of 1” (25mm) or more, including power lines
  • A maximum temperature of 600°C (1,112°F) and air volume of 7.1 CFM (200 l/min) for fast PVC welding and efficient shrinking of thick cables
  • The quick-release mechanism allows tool-free nozzle removal without touching hot metal parts.
  • The tool maintains constant temperature and airflow by adjusting the current when battery voltage drops.
  • Equipped with a backlit LCD enables precise adjustment of temperature and airflow.
  • The display includes numeric temperature (°C/°F), airflow level icons, battery fuel gauge with low-battery blinking, and error indicators.
  • Memory and maximum temperature control functions enhance usability.
  • Compatible with existing nozzles for our DC and AC models, offering greater versatility.
  • A single LED job light with after-glow function effectively illuminates the work area.
  • Equipped with a lock-on button for comfortable continuous operation
  • Equipped with a hanging hook for easier storage and improved user convenience
  • Rubberized soft grip provides increased comfort on the job

Items Included: Tool Only. Batteries and Charger Sold Separately. Reduction Nozzle (PR00000031), Reflector Nozzle (PR00000030), Wide-Slot Nozzle (PR00000029), Glass Protection Nozzle (PR00000028), Plastic Carrying Case

Shipping Dimensions (Length x Width x Height) & Weight : 19.9 In. X 4.8 In. X 15.4 In. Weight : 8.55 Lb.

Specifications

Battery Capacities 40V Max Li-Ion
Air Temperature Ambient temperature - 600°C (1,112°F)
Air Volume: 1: 4.2 CFM (120 l/min),  2: 5.3 CFM (150 l/min),  3: 6.4 CFM (180 l/min), 4: 7.1 CFM (200 l/min)
Overall Length 7-1/2" (191 mm)
Net Weight 1.7 lbs (0.76 kg)

User Manual: HG001G - EN FR SP.pdf

Parts Breakdown: HG001G - JUL2025.pdf
