DHP490Z

18V LXT Brushless 1/2" Hammer Drill-Driver, Tool Only

Compact And Lightweight Design

Variable 2-Speed, Reversible

LXT Technology LXT Technology LXT Technology

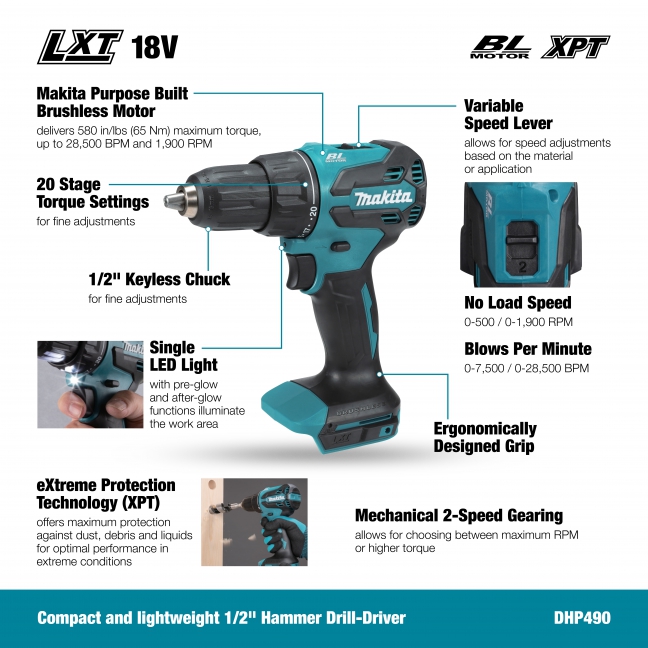

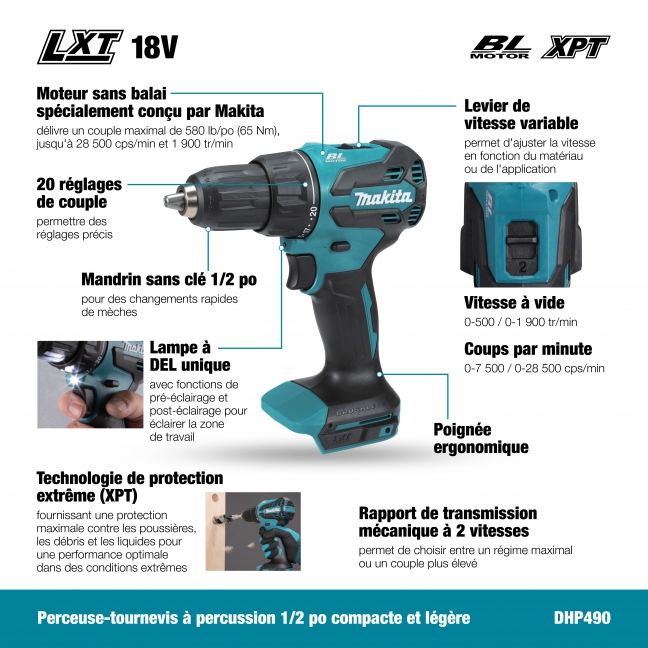

  • 18V LXT Brushless 1/2" Hammer Driver Drill
  • Equipped with a powerful brushless motor, the tool delivers the maximum torque of 580 in.lbs.
  • With its lightweight and compact design, the tool is easy to handle even in narrow spaces.
  • The brushless motor provides longer work hours per charge and extended tool life.
  • Provides increased efficiency with the maximum no-load speed of up to 1,900 rpm.
  • The 20-stage torque settings allow for fine adjustments to suit the task at hand.

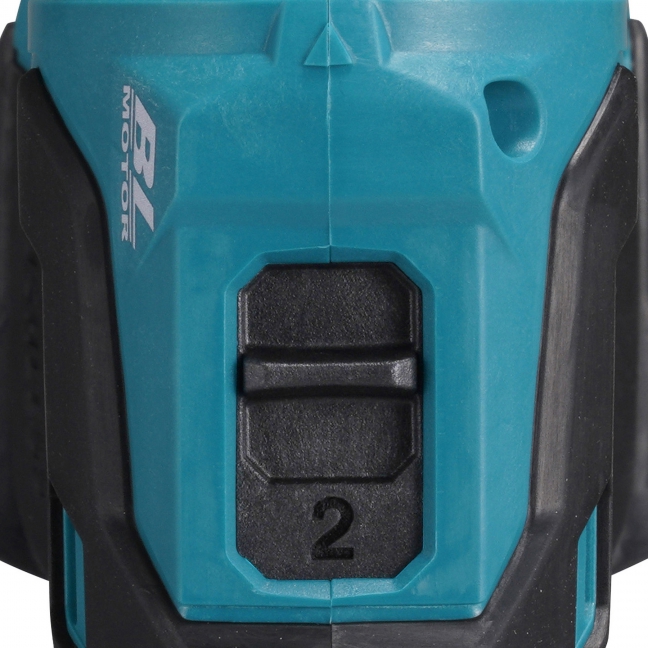

  • A mechanical 2-speed gearing allows for choosing between maximum rpm or higher torque.

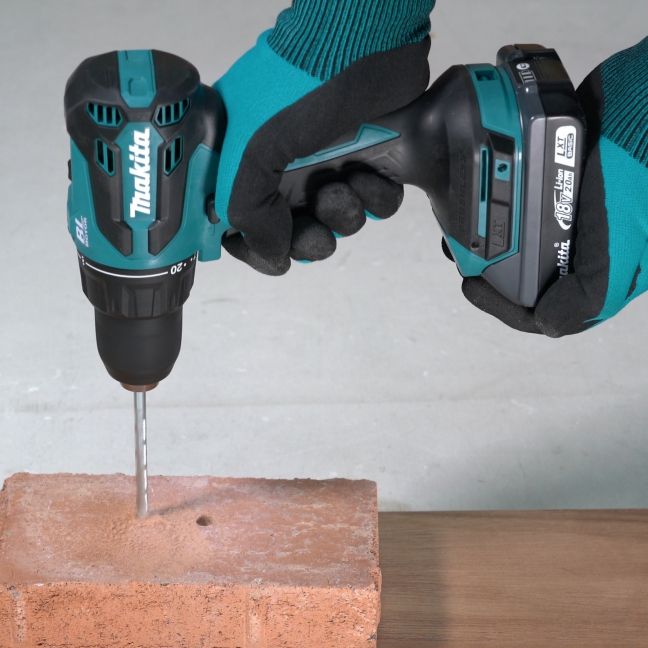

  • Three action modes are available: Drilling, Hammer drilling, and Screwdriving

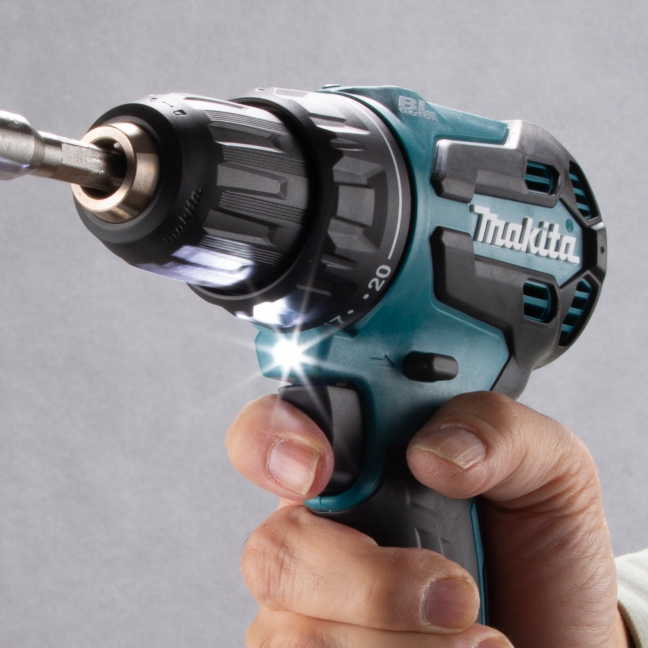

  • A single LED light with pre-glow and after-glow functions illuminate the work area.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • A convenient 1/2" keyless chuck for quick bit changes
  • The ergonomically designed grip ensures comfortable handling.
  • The reversing switch is conveniently located.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • The hook allows for easy and convenient hanging of the tool.
  • The battery protection circuit protects against overloading, over-discharging and over-heating

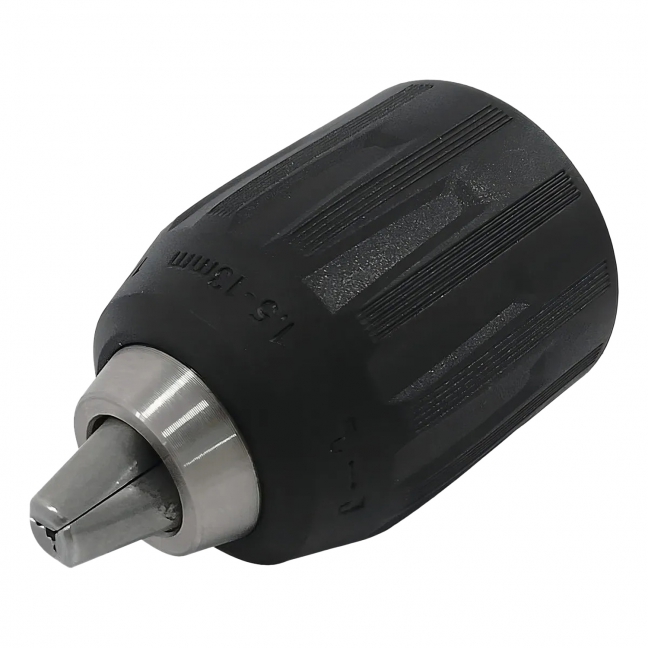

Items Included:Tool Only. Batteries and Charger Sold Separately. Keyless Drill Chuck (763260-2)

  • 18V LXT Brushless 1/2" Hammer Driver Drill
  • Equipped with a powerful brushless motor, the tool delivers the maximum torque of 580 in.lbs.
  • With its lightweight and compact design, the tool is easy to handle even in narrow spaces.
  • The brushless motor provides longer work hours per charge and extended tool life.
  • Provides increased efficiency with the maximum no-load speed of up to 1,900 rpm.
  • The 20-stage torque settings allow for fine adjustments to suit the task at hand.
  • A mechanical 2-speed gearing allows for choosing between maximum rpm or higher torque.
  • Three action modes are available: Drilling, Hammer drilling, and Screwdriving
  • A single LED light with pre-glow and after-glow functions illuminate the work area.
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • A convenient 1/2" keyless chuck for quick bit changes
  • The ergonomically designed grip ensures comfortable handling.
  • The reversing switch is conveniently located.
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • The hook allows for easy and convenient hanging of the tool.
  • The battery protection circuit protects against overloading, over-discharging and over-heating

Items Included: Tool Only. Batteries and Charger Sold Separately. Keyless Drill Chuck (763260-2)

Shipping Dimensions (Length x Width x Height) & Weight : 7.4 In. X 3.9 In. X 9.1 In. Weight : 5.75 Lb.

Specifications

Battery Capacities  18V Li-Ion
Capacities:
Masonry 1/2" (13 mm)
Steel 1/2" (13 mm)
Wood 1-1/2" (38 mm)
No Load Speed:
Low 0 - 500 RPM
High 0 - 1,900 RPM
Blows Per Minute:
Low 0 - 7,500 BPM
High 0 - 28,500 BPM
Maximum Torque  580 in. lbs (65 Nm)
Vibration Level 8.1 m/s2
Noise Level 88 dB(A)
Overall Length  6-3/4" (172 mm)
Net Weight  3.1 lbs - 3.7 lbs (1.4 kg - 1.7 kg)

User Manual: DHP490 - EN FR SP.pdf

Parts Breakdown: DHP490 - APR2025.pdf
