LXT Technology

(Tool only)

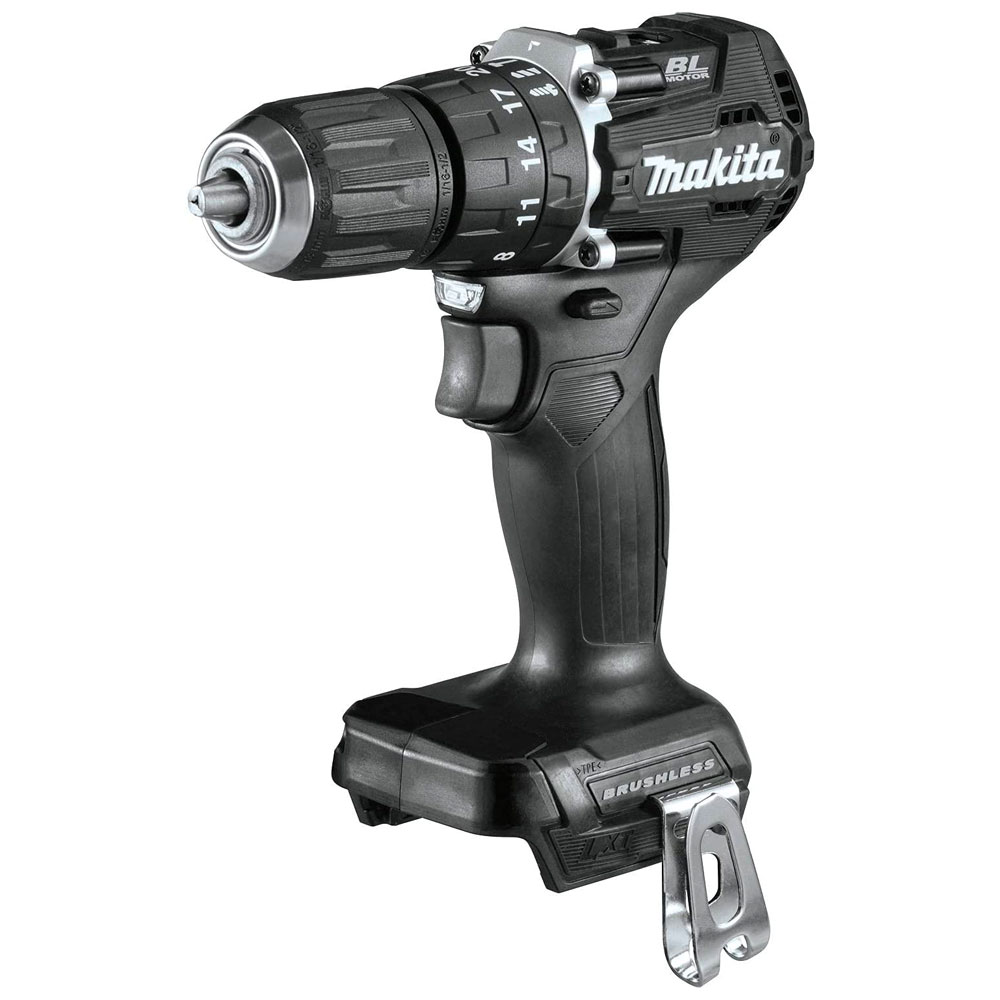

DHP487ZB

1/2" Sub-Compact Cordless Hammer Drill / Driver with Brushless Motor

SUB-COMPACT Size - Just 6-1/2" Long!

Variable 2-Speed, Reversible

LXT Technology Sub Compact LXT Technology 18V Battery

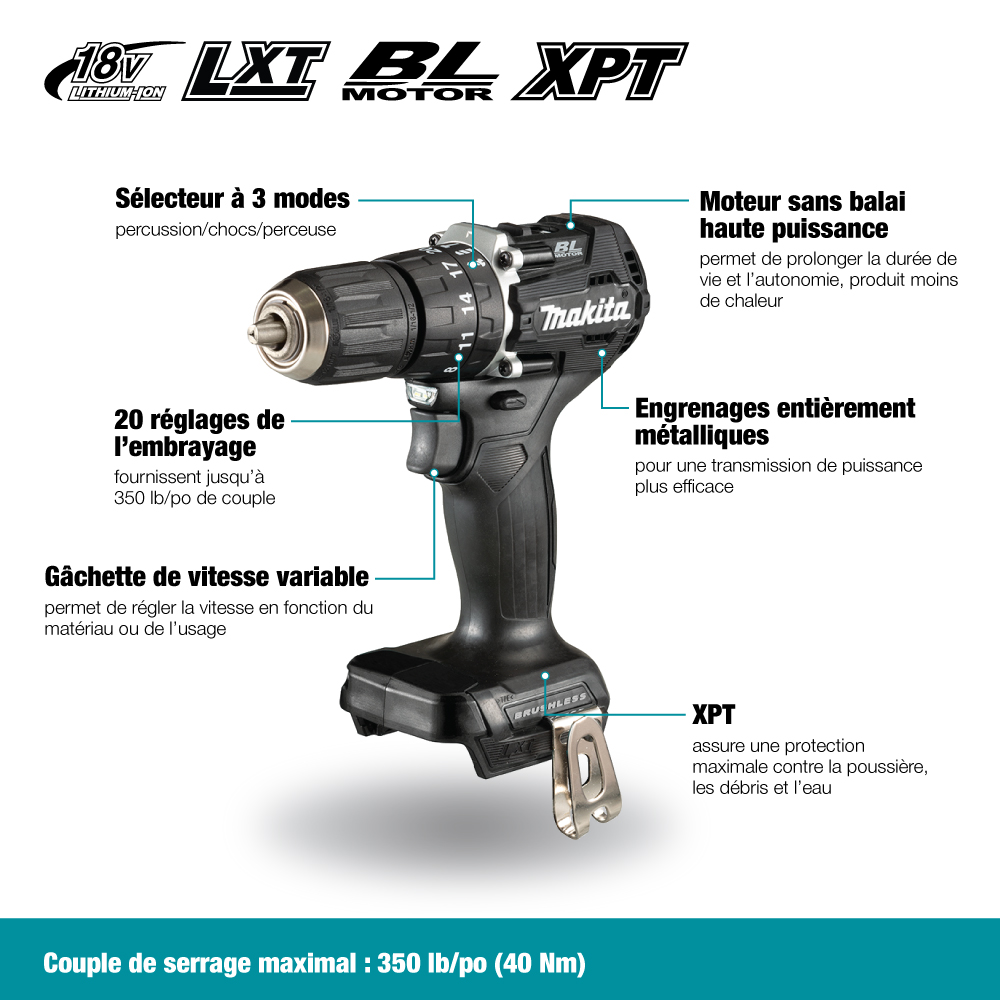

  • Sub-compact size (only 6-1/2" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 20 clutch settings deliver up to 350 in. lbs. of torque
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. 1/2" Keyless Drill Chuck (763256-3), Hook (346449-3), Double Ended Bit 2-45 (784637-8)

  • Sub-compact size (only 6-1/2" long) with high power ideal for professional installers, cabinetmakers, electricians, hobbyists, DIY and more!
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 20 clutch settings deliver up to 350 in. lbs. of torque
  • Dual LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 1/2" Keyless Drill Chuck (763256-3), Hook (346449-3), Double Ended Bit 2-45 (784637-8)

Specifications

Battery Capacities 18V Li-Ion
Capacities:
Concrete 1/2" (13 mm)
Steel 1/2" (13 mm)
Wood Auger bit 1-7/16" (36 mm), Self-feeding bit 1-3/8" (35 mm), Hole saw 2" (51 mm)
No Load Speed:
Low 0 - 500 RPM
High 0 - 1,700 RPM
Blows Per Minute:
Low 0 - 7,500 BPM
High 0 - 25,500 BPM
Maximum Torque 350 in. lbs (40 Nm)
Vibration Level 10.5 m/s²
Noise Level 83 dB(A)
Overall Length 6-1/2" (164 mm)
Net Weight 2.3 lbs (1.0 kg)
