You are here: Home / Tool / OPE / Split Shaft / UX01GZ

XGT Technology

(Tool only)


UX01GZ

40V MAX XGT Split Shaft Power Unit

Power unit is part of the Makita split shaft multi tool system

Tool-less release system for quick disconnect of attachments

Brushless Motor / XPT / AFT


XGT Technology LXT Technology Active Feedback technology LXT Technology
  • Use with up to 13 different attachments, including line trimmers, pole saws, hedge trimmers, blowers and more!
  • 3-speed options (Low: 5,700 RPM, Medium: 8,200 RPM, High: 9,700 RPM) for active power management
  • IPX4 rated for maximum weather and water resistance
  • Variable 3-speed push-button control enables operator to adjust speed based on different attachments or applications.
  • Reverse mode for clearing entangled debris from the cutting head
  • Electric brake for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains speed under heavy loads
  • Features Star Protection with 3 Active Controls for Current, Voltage & Temperature in case of overload

Items Included:Tool Only. Batteries and Charger Sold Separately. Shoulder Harness (127759-5), Hex Wrench 4 (783202-0), Accessory Bag (831304-7)

  • Use with up to 13 different attachments, including line trimmers, pole saws, hedge trimmers, blowers and more!
  • 3-speed options (Low: 5,700 RPM, Medium: 8,200 RPM, High: 9,700 RPM) for active power management
  • IPX4 rated for maximum weather and water resistance
  • Variable 3-speed push-button control enables operator to adjust speed based on different attachments or applications.
  • Reverse mode for clearing entangled debris from the cutting head
  • Electric brake for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains speed under heavy loads
  • Features Star Protection with 3 Active Controls for Current, Voltage & Temperature in case of overload

Items Included: Tool Only. Batteries and Charger Sold Separately. Shoulder Harness (127759-5), Hex Wrench 4 (783202-0), Accessory Bag (831304-7)

Specifications

Battery Capacities  40V Max Li-Ion
No Load Speed:
High / Medium / Low 0 - 9,700 / 0 - 8,200 / 0 - 5,700 RPM
Vibration Level 2.5 m/s²
Noise Level 80.9 dB(A)
Overall Length  39-1/2" (1,001 mm)
Net Weight  8.6 lbs (3.9 kg)
13

13" Line Trimmer (Straight Shaft) Attachment - Small Guard

Read More
Angle Hedge Trimmer Attachment

Angle Hedge Trimmer Attachment

Read More
Blower Attachment

Blower Attachment

Read More
Cultivator Attachment

Cultivator Attachment

Read More
Edger Attachment

Edger Attachment

Read More
Extension Shaft Attachment

Extension Shaft Attachment

Read More
Ground & Hedge Trimmer Attachment

Ground & Hedge Trimmer Attachment

Read More
Line Trimmer (Straight Shaft) Attachment - Large Guard

Line Trimmer (Straight Shaft) Attachment - Large Guard

Read More

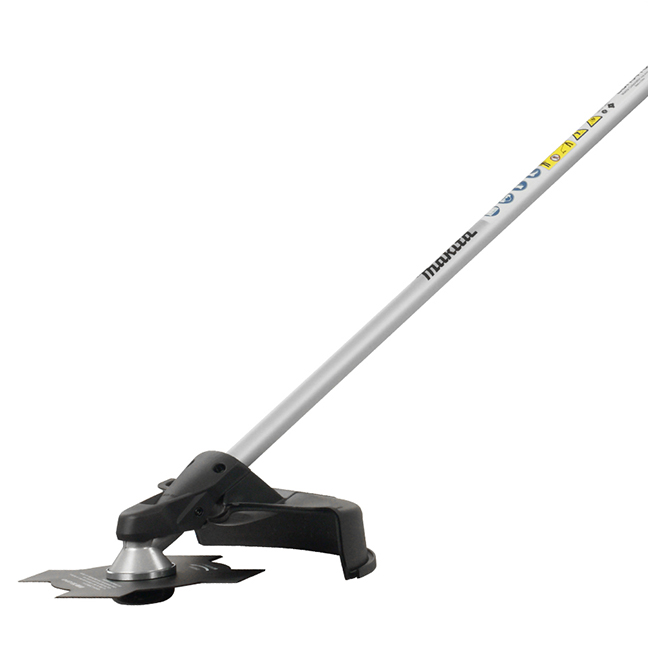

Line Trimmer (Straight Shaft) Attachment - Large Guard, Includes Parts For Brush Cutter

Line Trimmer (Straight Shaft) Attachment - Large Guard, Includes Parts For Brush Cutter

Read More
Line Trimmer (Straight Shaft) Attachment - Small Guard

Line Trimmer (Straight Shaft) Attachment - Small Guard

Read More
Pole Chain Saw Attachment

Pole Chain Saw Attachment

Read More
Power Brush Attachment

Power Brush Attachment

Read More

User Manual: UX01G - EN FR SP.pdf

Parts Breakdown: UX01GZ02, UX01GZ - NOV2022.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
