You are here: Home / Tool / Cordless / 18Vx2 / DHR280Z

36V X2 Brushless Technology

(Tool only)

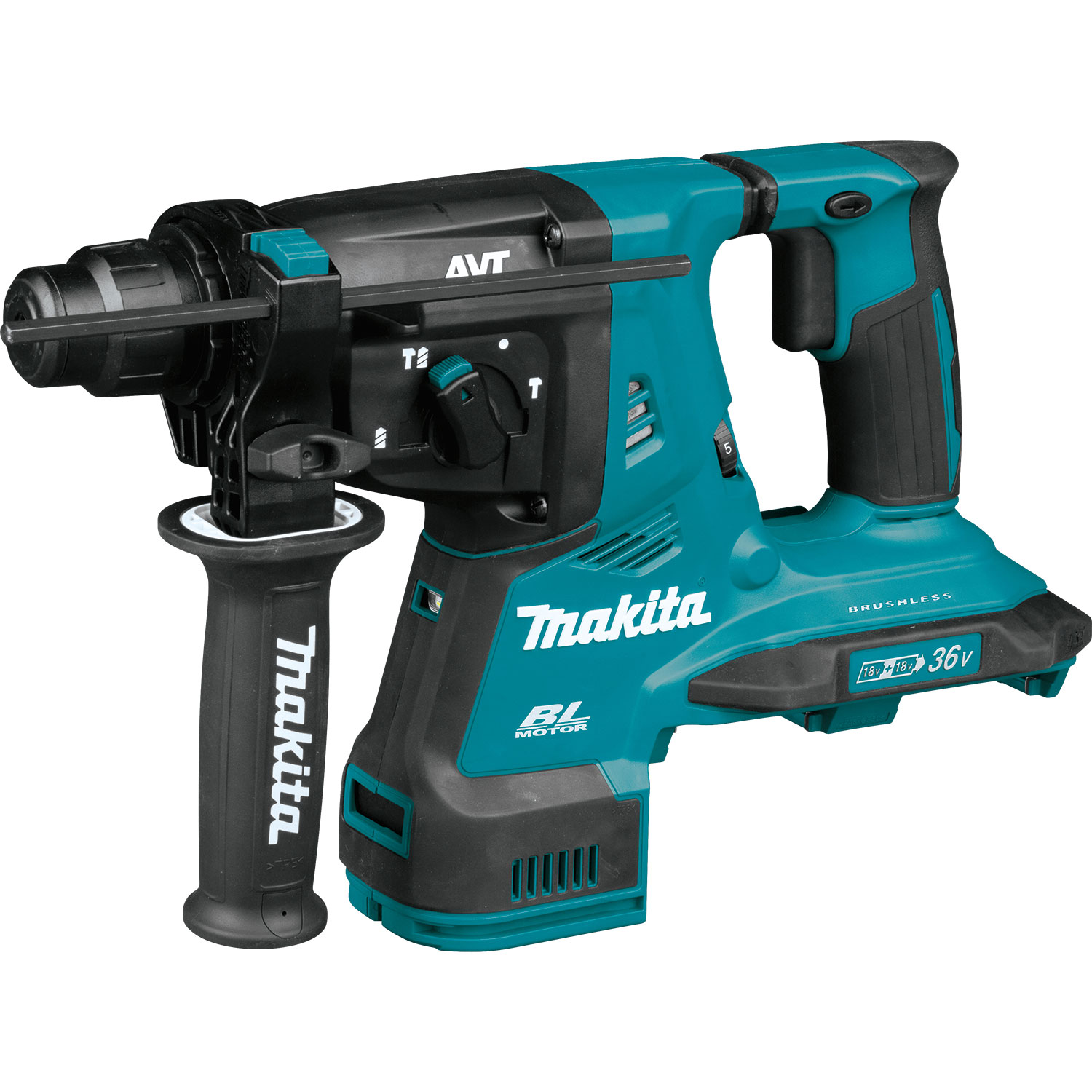

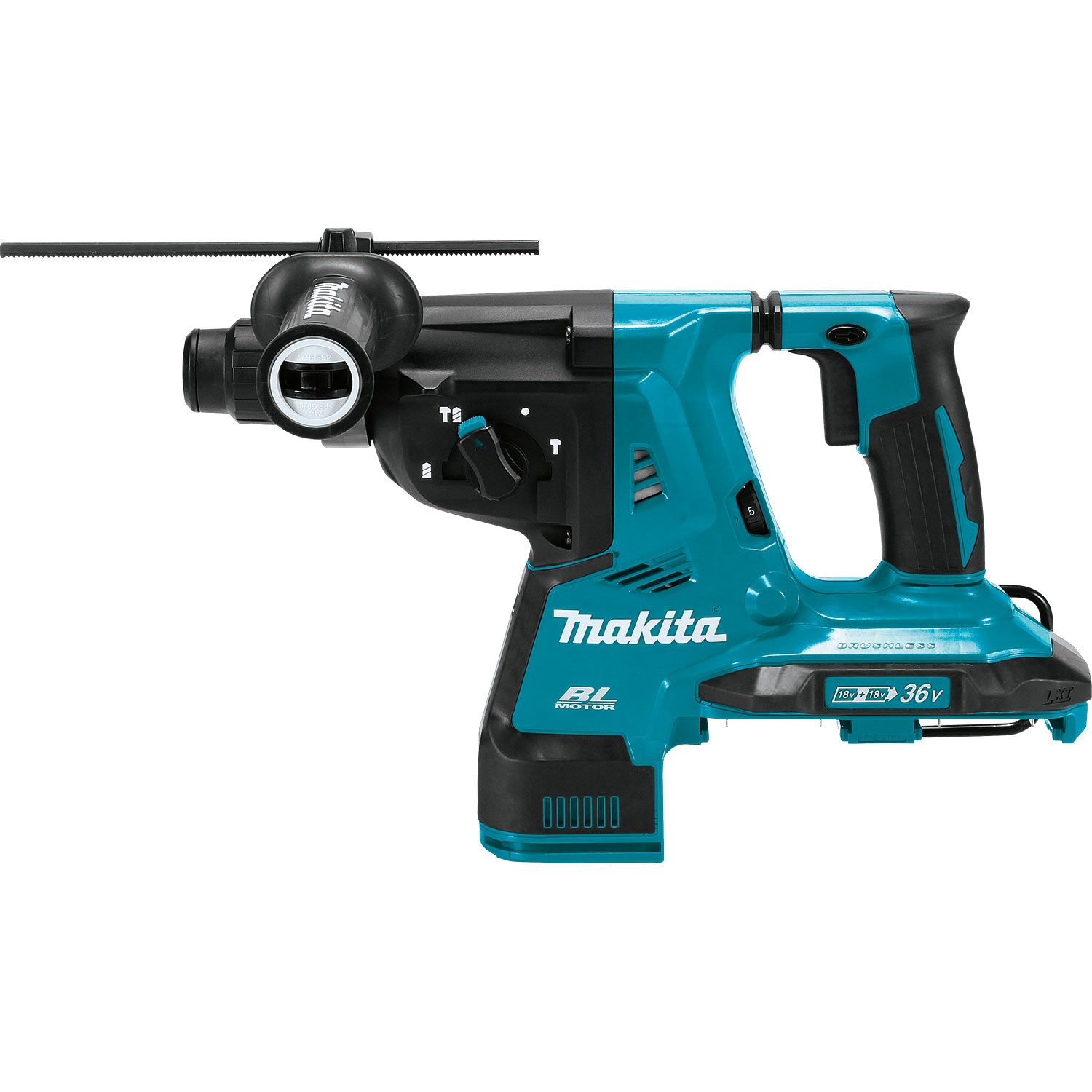

DHR280Z

1-1/8" Cordless Rotary Hammer

Hammer & Rotation / Hammer Only / Rotation Only Features SDS-PLUS Shank

Variable Speed, Reversible

LXT Technology LXT Technology Anti vibration Technology 18Vx2

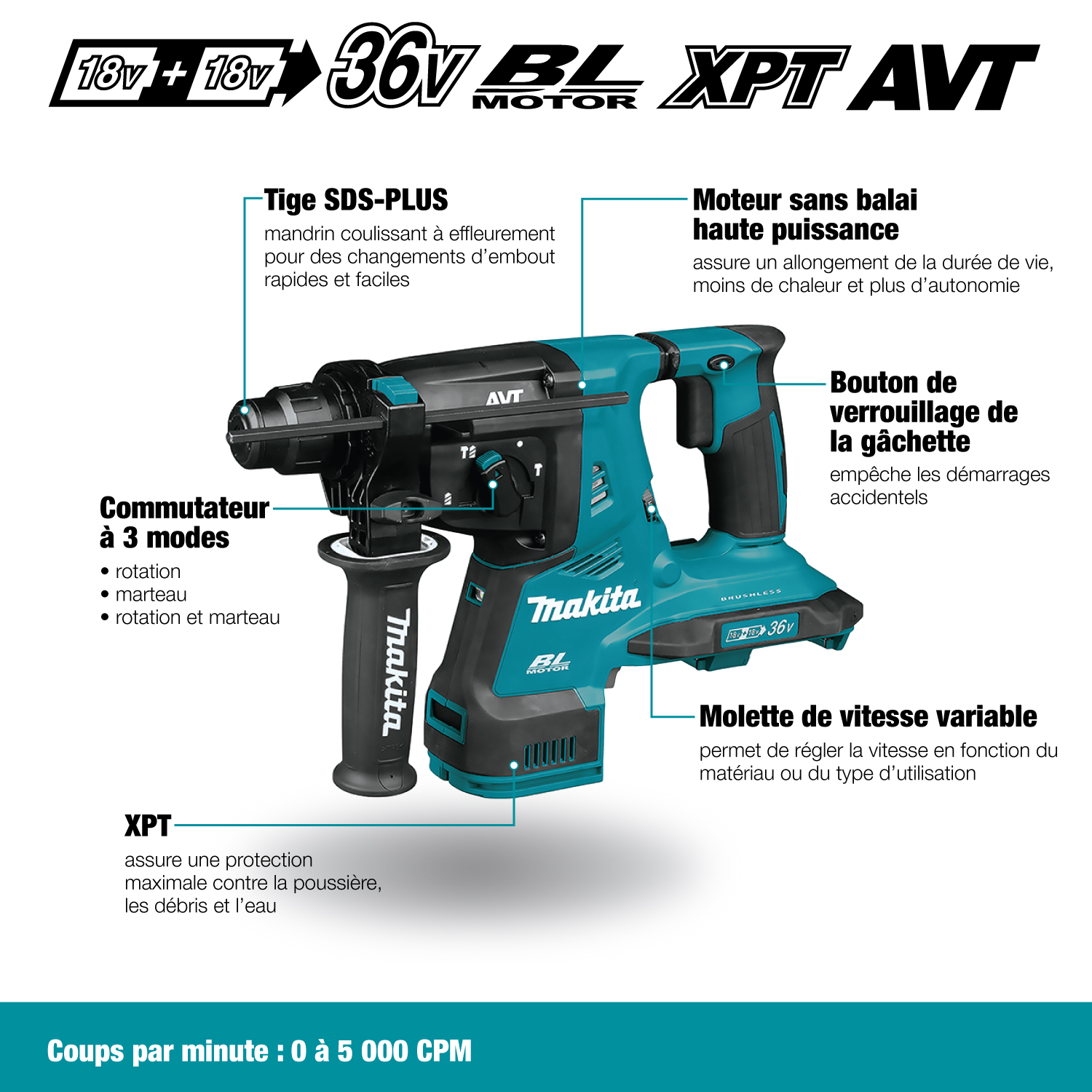

  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications

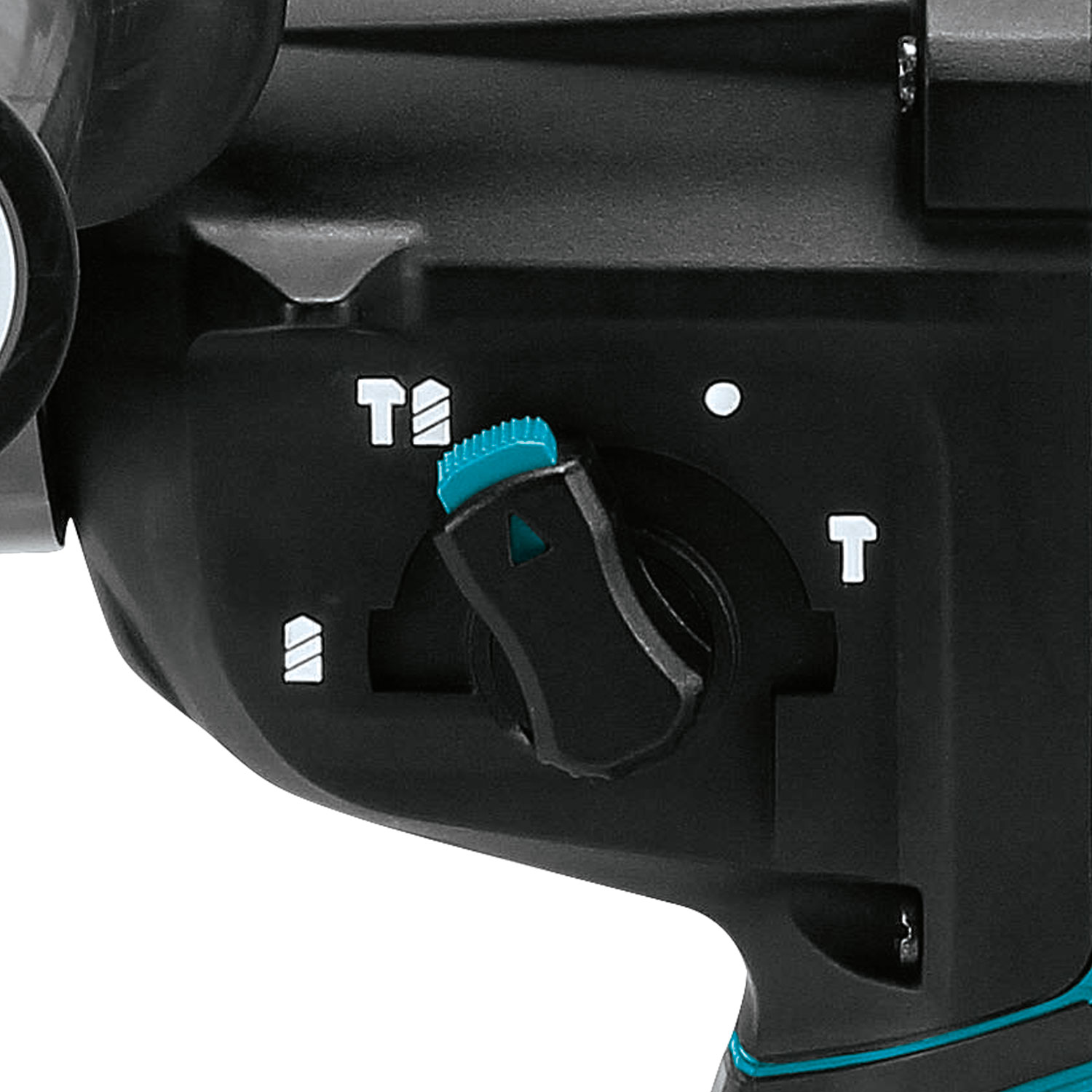

  • 3 Operating Modes: Rotation  / Hammer /  Rotation + Hammer
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • No-load motor suppression limits vibration and bit deflection when idling
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Constant speed control maintains constant speed under heavy load
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately. Side Handle (126882-3), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331886-4)

  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • 3 Operating Modes: Rotation  / Hammer /  Rotation + Hammer
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • No-load motor suppression limits vibration and bit deflection when idling
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Constant speed control maintains constant speed under heavy load
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. Side Handle (126882-3), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331886-4)

Specifications

Battery Capacities Two 18V Li-Ion
Capacities:
Concrete (TCT) 1-1/8" (28 mm)
Concrete (Core Bit) 2-1/8" (54 mm)
Steel 1/2" (13 mm)
Wood 1-1/4" (32 mm)
Impact Energy 3.2 J (2.4 ft. lbs)
No Load Speed 0 - 980 RPM
Blows Per Minute 0 - 5,000 BPM
Vibration Level 9.0 m/s²
Noise Level 93 dB(A)
Overall Length 14-3/4" (373 mm)
Net Weight 7.1 lbs (3.2 kg)
