CXT Technology

(Tool + Batteries + Charger)

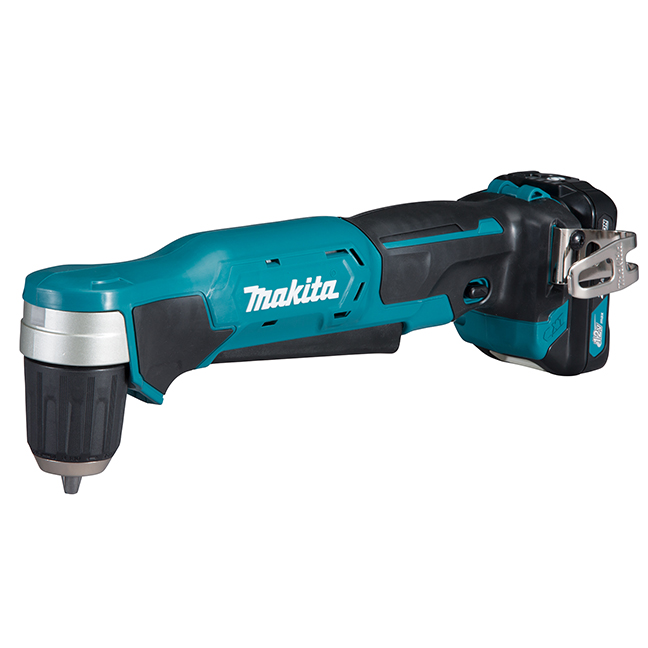

DA333DSYE

3/8" Cordless Angle Drill

Compact Design For Optimal Versatility In Confined Spaces

Variable Speed, Reversible

CXT Technology

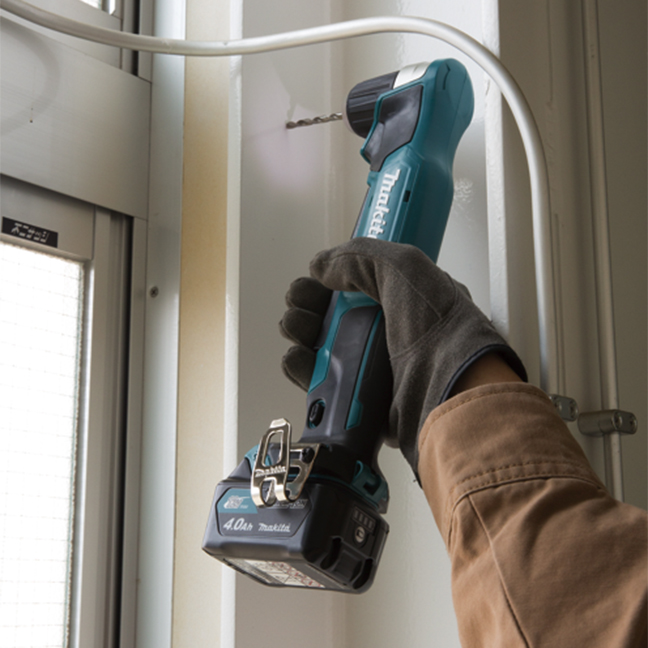

  • Compact head and center height for easy use when working between framing studs or any other close quarter application
  • Large paddle switch with variable speed enables fine adjustment for maximum control and precision in a wide range of applications
  • Electric brake stop rotation immediately after trigger is released for added user safety
  • Easy-to-operate push button type Forward/Reverse change switch
  • LED job light with pre-glow and afterglow feature illuminates drilling area
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Keyless Chuck for quick and easy bit installation and removal

Items Included:Two 12V MAX (1.5Ah) CXT Batteries BL1016, Charger (DC10SB), 3/8" Keyless Drill Chuck (763228-8), Phillips Bit 2-50 (784244-7), Hook (346909-5), Battery Cover (456128-6), Plastic Carrying Case (821723-5)

  • Compact head and center height for easy use when working between framing studs or any other close quarter application
  • Large paddle switch with variable speed enables fine adjustment for maximum control and precision in a wide range of applications
  • Electric brake stop rotation immediately after trigger is released for added user safety
  • Easy-to-operate push button type Forward/Reverse change switch
  • LED job light with pre-glow and afterglow feature illuminates drilling area
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
  • Keyless Chuck for quick and easy bit installation and removal

Items Included: Two 12V MAX (1.5Ah) CXT Batteries BL1016, Charger (DC10SB), 3/8" Keyless Drill Chuck (763228-8), Phillips Bit 2-50 (784244-7), Hook (346909-5), Battery Cover (456128-6), Plastic Carrying Case (821723-5)

Specifications

Battery Capacities 12V MAX Slide Li-ion
Capacities:
Steel 3/8" (10 mm)
Wood 1/2" (12 mm)
No Load Speed 0 - 1,100 RPM
Vibration Level 3.0 m/s2
Noise Level 70 dB(A)
Overall length 12-3/8" (313 mm)
Net Weight 2.7 lbs (1.2 kg)
