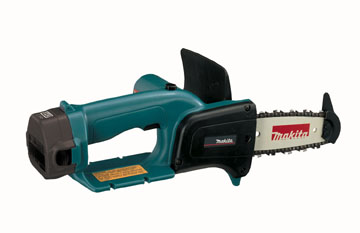

Cordless Chainsaw

4-1/2” Bar

Electric Brake

Built-In Spring enables quick and easy Chain Tensioning
Saw Guard prevents undercutting kickback
Electric Brake stops chain within 0.5 seconds of trigger release
Can be used with Optional Extension Handle (192927-9) for added reach

Where to buy

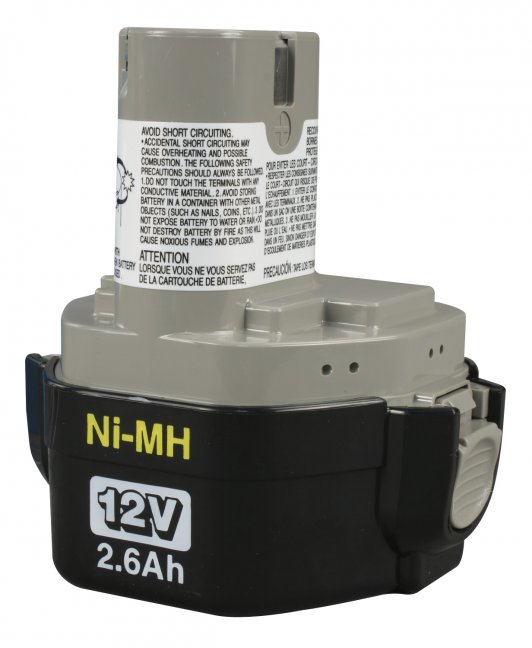

Items Included:12V (2.6 Ah) Ni-MH Battery 1234 (193157-5), Charger (DC1804), Battery Cover (414938-7), 4-1/2” Chain (791284-8), 4-1/2” Guide Bar (158476-6), Chain Cover (416311-7), Chain File (744003-1), Hex Wrench (783203-8), Oil supply (182229-1), Plastic Carrying Case (824491-9)

193157-5

DC1804

783203-8

182229-1

Images shown may not represent the full listing or the true size of included items.

Built-In Spring enables quick and easy Chain Tensioning
Saw Guard prevents undercutting kickback
Electric Brake stops chain within 0.5 seconds of trigger release
Can be used with Optional Extension Handle (192927-9) for added reach

Items Included: 12V (2.6 Ah) Ni-MH Battery 1234 (193157-5), Charger (DC1804), Battery Cover (414938-7), 4-1/2” Chain (791284-8), 4-1/2” Guide Bar (158476-6), Chain Cover (416311-7), Chain File (744003-1), Hex Wrench (783203-8), Oil supply (182229-1), Plastic Carrying Case (824491-9)

Shipping Dimensions (Length x Width x Height) & Weight : 12.48 In. X 20.71 In. X 7.48 In. Weight : 12.13 Lb.

Specifications

Battery	12V (2.0 Ah) Ni-MH
Cutting Capacity	4-1/2” (115 mm)
Chain Pitch / Gauge	1/4” / .050”
Chain Speed	520 ft./min. (160 m/min.)
Vibration Level	8.9 m/s²
Noise Level	80 dB
Overall Length	18-1/2” (468 mm)
Net Weight	4.9 lbs (2.2 kg)
Shipping Weight	12.2 lbs (5.5 kg)
