Home / Tool / / / LXDT04Z1

LXT Technology

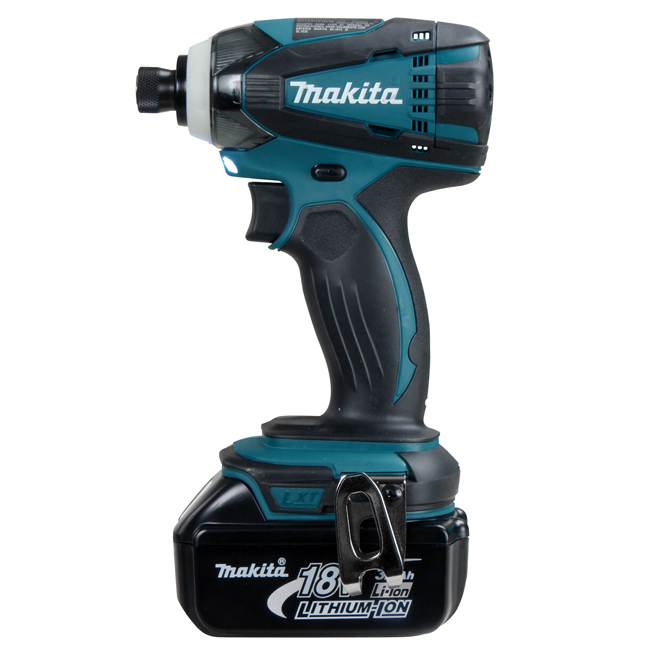

LXDT04Z1

1/4" Cordless Impact Driver

Compact and Lightweight Design with Overall Length of 5-7/16"

Tool PLUS Series

Variable Speed, Reversible

LXT Technology
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • NEW Battery Protection System provides Over-Discharge, Temperature and Circuit Protection for enhanced performance, battery cycle life and overall battery life
  • Increased Max. Torque of 1,420 in. lbs.
  • One-Touch Bit Holder enables quick and easy bit installation
  • LED Light with Afterglow feature
  • Glow in the Dark Bumper
  • Improved Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included:18V (3.0 Ah) Li-Ion BL1830 Battery (194205-3), Hook (346449-3),

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • NEW Battery Protection System provides Over-Discharge, Temperature and Circuit Protection for enhanced performance, battery cycle life and overall battery life
  • Increased Max. Torque of 1,420 in. lbs.
  • One-Touch Bit Holder enables quick and easy bit installation
  • LED Light with Afterglow feature
  • Glow in the Dark Bumper
  • Improved Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: 18V (3.0 Ah) Li-Ion BL1830 Battery (194205-3), Hook (346449-3),

Shipping Dimensions (Length x Width x Height) & Weight : 13.5 In. X 9.49 In. X 4.02 In. Weight : 4.21 Lb.

Specifications

Battery Capacities: 18V (3.0 Ah) Li-Ion
   18V (Compact)  Li-Ion
Hex Shank 1/4” Hex
No Load Speed 0 - 2,300 RPM
Impacts Per Minute 0 - 3,200 IPM
Maximum Torque 1,420 in. lbs (160 Nm)
Vibration Level 12.5 m/s2
Noise Level 93 dB
Overall Length 5-7/16" (138 mm)
Net Weight 3.3 lbs (1.5 kg)
Shipping Weight 4.2 lbs (1.9 kg)
