LXDT01Z1

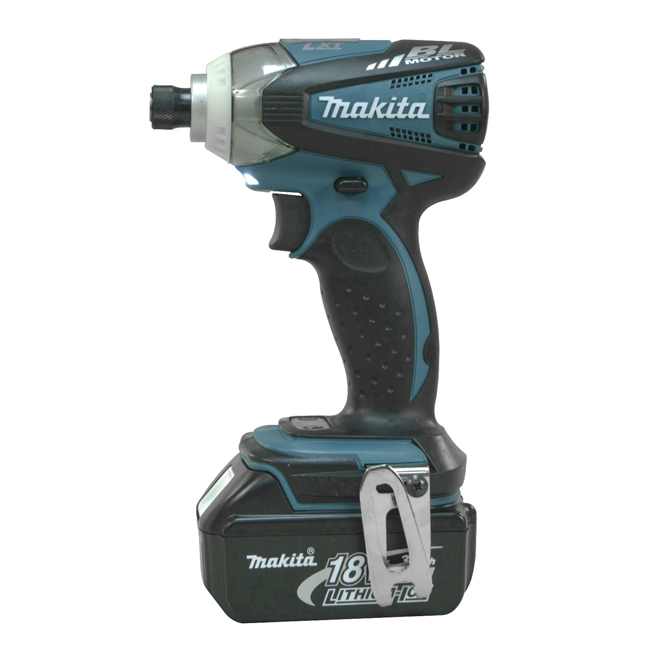

1/4" Cordless Impact Driver With Brushless Motor

Compact Design And Brushless DC Motor

Tool PLUS Series

Variable 3-Speed, Reversible

LXT Technology
  • 3 Stage Impact Power Selection prevents over tightening of fasteners
  • Battery Power Warning Light indicates when low battery capacity has been reached
  • Brushless DC Motor with high power to weight and size ratio
  • Brushless DC Motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED Job Light with Afterglow feature and independent on / off switch
  • Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation
Read More

Items Included:18V (3.0 Ah) Li-Ion BL1830 Battery (194205-3), Hook (346449-3)

346449-3

Images shown may not represent the full listing or the true size of included items.

  • 3 Stage Impact Power Selection prevents over tightening of fasteners
  • Battery Power Warning Light indicates when low battery capacity has been reached
  • Brushless DC Motor with high power to weight and size ratio
  • Brushless DC Motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED Job Light with Afterglow feature and independent on / off switch
  • Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation

Items Included: 18V (3.0 Ah) Li-Ion BL1830 Battery (194205-3), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 13.5 In. X 9.49 In. X 4.02 In. Weight : 4.25 Lb.

Specifications

Battery Capacities: 18V (3.0 Ah) Li-Ion
18V (Compact)  Li-Ion
Hex Shank 1/4" Hex
No Load Speed 0 - 2,600 / 2,000 / 1,300 RPM
Impacts Per Minute 0 - 3,400 / 2,800 / 1,300 IPM
Maximum Torque 200 / 490 / 1,460 in.lbs (22.6 / 55.4 / 165 Nm)
Vibration Level 12.0 m/s2
Noise Level 93 dB(A)
Overall Length 5-1/2" (139 mm)
Net Weight 3.3 lbs (1.5 kg)
Shipping Weight 4.3 lbs (1.9 kg)

User Manual: LXDT01, LXDT01Z - EN FR SP_owner_English.pdf

Parts Breakdown: LXDT01, LXDT01Z, LXDT01Z1 - DEC2015.pdf
