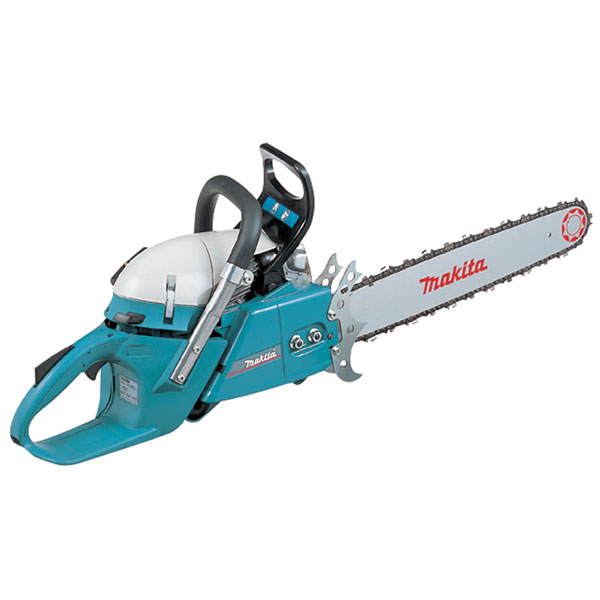

DCS7301-20

73 Cc. Chainsaw

20" Bar

Best In Class

  • Throttle-lock start position with decompression valve
  • External access holes allow easy carburetor adjustment
  • Automatic adjustable chain oiler
  • Electronic ignition system incorporates a microprocessor
  • Inertia chain brake
Read More

Items Included:20" Chain (523 099 072), 20" Guide Bar (445 050 655), Chain Cover (952 020 660), Tool Kit (957 004 002)

  • Throttle-lock start position with decompression valve
  • External access holes allow easy carburetor adjustment
  • Automatic adjustable chain oiler
  • Electronic ignition system incorporates a microprocessor
  • Inertia chain brake

Items Included: 20" Chain (523 099 072), 20" Guide Bar (445 050 655), Chain Cover (952 020 660), Tool Kit (957 004 002)

Shipping Dimensions (Length x Width x Height) & Weight : 21.65 In. X 11.02 In. X 13.39 In. Weight : 17.2 Lb.

Specifications

Displacement 72.6 cc. (4.4 cu.in.)

Chain Pitch / Gauge

Max. Engine Speed 13,500 RPM
Power Rating 4.2 kW / 5.6 hp
Fuel Tank Capacity 750 ml
Oil Tank Capacity 420 ml
Fuel / Oil Mixture 50:1
Net Weight: Dry w/o Bar/Chain 13.9lbs (6.3kg)
Shipping Weight 17.1 lbs (7.8 kg)

User Manual: DCS6401,DCS6421,DCS7301,DCS7901 - ENG FR_owner_English.pdf

Parts Breakdown: DCS6401,DCS6421,DCS7301,DCS7901(2014-09)update.PDF

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
