DPC7331

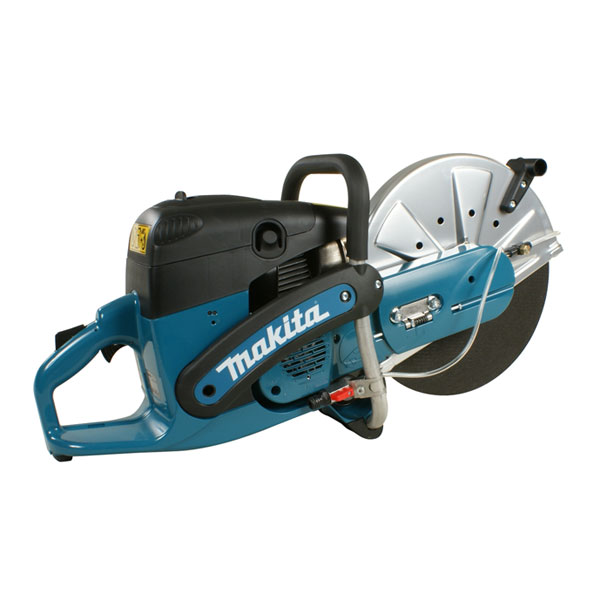

14" Power Cutter (20mm Arbor)

14" Cutting Wheel (20mm Arbor)


  • Includes water kit
  • Advanced 5 stage air filtration system for cleaner operation
  • Top mount decompression valve reduces the start up force required by 70%, increases power output and further reduces emissions
  • Large air intake space for maximum forced air flow to the carburetor box area and increased engine cooling
  • Air inlet ports reduce noise up to 40%
  • Reversible cutting arm can be mounted in the center or for flush cutting
  • Electronic ignition with rev limiter
  • Required to use 2 Cycle Synthetic Oil

Items Included:14" Cutting Disk F/Stone(20mm)(966 141 120),Tool Kit (957 004 006), Water Attachment Kit(394 365 630)

  • Includes water kit
  • Advanced 5 stage air filtration system for cleaner operation
  • Top mount decompression valve reduces the start up force required by 70%, increases power output and further reduces emissions
  • Large air intake space for maximum forced air flow to the carburetor box area and increased engine cooling
  • Air inlet ports reduce noise up to 40%
  • Reversible cutting arm can be mounted in the center or for flush cutting
  • Electronic ignition with rev limiter
  • Required to use 2 Cycle Synthetic Oil

Items Included: 14" Cutting Disk F/Stone(20mm)(966 141 120),Tool Kit (957 004 006), Water Attachment Kit(394 365 630)

Shipping Dimensions (Length x Width x Height) & Weight : 27.17 In. X 11.81 In. X 15.75 In. Weight : 28 Lb.

Specifications

Displacement 4.5cu. (73 cc)
Max. Power 4.2 kW (5.6 hp)
Fuel / oil mixture 50:1
Ignition system electronic
Fuel tank capacity 1.1 L
No Load speed 9,350 RPM
Max. Spindle Speed 4,3000 RPM
Arbor 20 mm
Max. Cutting depth 4-13/16" (122 mm)
Dry weight 21.4 lbs (9.7 kg)
Shipping weight 28.0lbss (12.7 kg)
