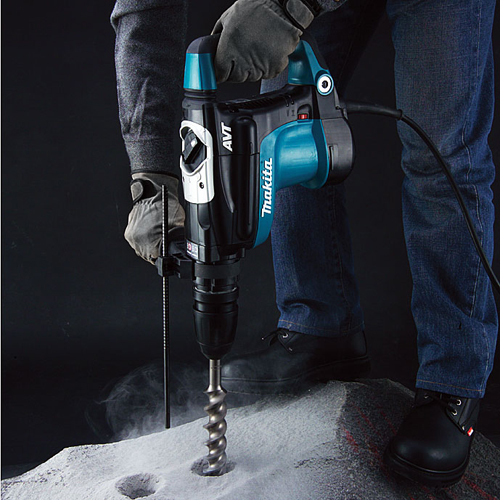

1-9/16" Rotary Hammer

SDS-MAX Shank

Hammer & Rotation / Hammer Only

Variable Speed, Constant Speed Control, Soft Start

Anti-Vibration Technology (AVT^TM) actively counteracts vibration of tool for greatly reduced transmission to operator
Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
Constant Speed Control maintains constant speed under heavy load
Soft Start feature gradually increases speed to eliminate start up shock
Variable Speed Dial allows operator to adjust speed based on materials or application
12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
One-Touch Sliding Chuck for easy bit installation and removal
LED Service Light indicates appropriate time to change carbon brushes
LED Power Light indicates active power supply
Vibration Absorbing Handle with Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation
Includes Straight (Drilling) and D-Style (Demolition) Side Handles

Where to buy

Items Included:Bit Grease (194683-7), Straight Side Handle Incl. Depth Gauge (135209-6), D-Style Side Handle (134890-0), Cleaning Cloth (443122-7), Plastic Carrying Case (154731-4)

194683-7

135209-6

443122-7

Images shown may not represent the full listing or the true size of included items.

Anti-Vibration Technology (AVT^TM) actively counteracts vibration of tool for greatly reduced transmission to operator
Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
Constant Speed Control maintains constant speed under heavy load
Soft Start feature gradually increases speed to eliminate start up shock
Variable Speed Dial allows operator to adjust speed based on materials or application
12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
One-Touch Sliding Chuck for easy bit installation and removal
LED Service Light indicates appropriate time to change carbon brushes
LED Power Light indicates active power supply
Vibration Absorbing Handle with Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation
Includes Straight (Drilling) and D-Style (Demolition) Side Handles

Items Included: Bit Grease (194683-7), Straight Side Handle Incl. Depth Gauge (135209-6), D-Style Side Handle (134890-0), Cleaning Cloth (443122-7), Plastic Carrying Case (154731-4)

Shipping Dimensions (Length x Width x Height) & Weight : 18.31 In. X 25.55 In. X 6.14 In. Weight : 28.22 Lb.

Specifications

Bit Type	SDS-MAX
Maximum Capacities:
Concrete (TCT)	1-9/16” (40 mm)
Concrete (Core Bit)	4-1/8" (105 mm)
No Load Speed	235 - 480 RPM
Blows Per Minute	1,350 - 2,750 BPM
Impact Energy	9.5 J (7,0 ft. lbs)
AMPS (120V)	11.0 A
Vibration Level	7.5 m/s²(Drilling) / 6.5 m/s² (Chiselling)
Noise Level	90 dB(A)
Overall Length	18-1/2” (468 mm)
Net Weight	14.8 lbss (6.7 kg)
