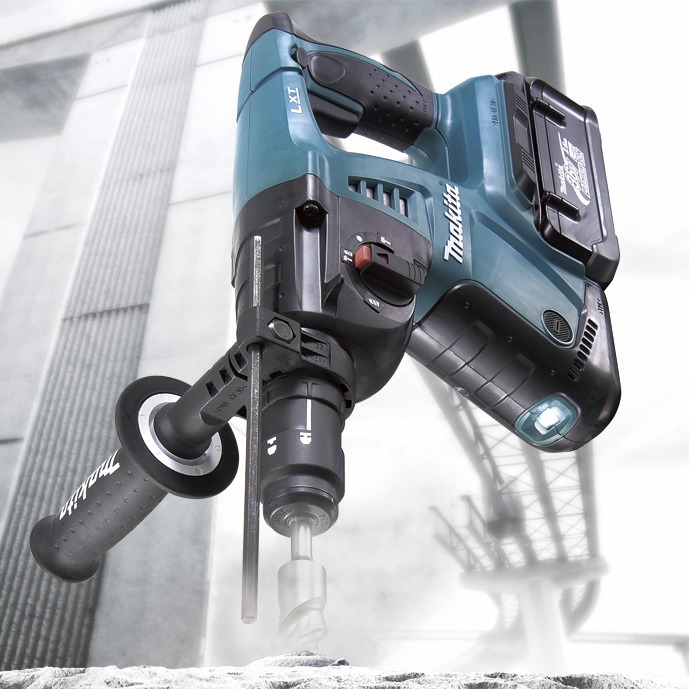

Cordless 3 Mode SDS-PLUS Rotary Hammer Drill

Makita's First 36 Volt Cordless Tool

Hammer And Rotation / Hammer Only / Rotation Only

Variable Speed, Reversible

Centre of Gravity located close to rear handle resulting in ideal tool balance during operation
Torque Limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
Rubber Housing Bumper protects mode selector switch and gear housing from damage
LED light with Afterglow feature
One Touch Sliding Chuck enables quick and easy bit change
Sliding Rear Handle for increased vibration absorption
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Includes BCV01 18V to 36V Li-Ion Battery Converter enabling use with 2 x 18V Li-Ion BL1830 Batteries

Where to buy

Items Included:Tool Only. Batteries and Charger Sold Separately. Cleaning Cloth (443122-7), Bit Grease (194683-7), Side Handle (158057-6), Depth Gauge (324219-0), Battery Converter BCV01 (195512-7), Tool Bag (831278-2)

443122-7

194683-7

158057-6

324219-0

831278-2

Images shown may not represent the full listing or the true size of included items.

Centre of Gravity located close to rear handle resulting in ideal tool balance during operation
Torque Limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
40 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
Rubber Housing Bumper protects mode selector switch and gear housing from damage
LED light with Afterglow feature
One Touch Sliding Chuck enables quick and easy bit change
Sliding Rear Handle for increased vibration absorption
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Includes BCV01 18V to 36V Li-Ion Battery Converter enabling use with 2 x 18V Li-Ion BL1830 Batteries

Items Included: Tool Only. Batteries and Charger Sold Separately. Cleaning Cloth (443122-7), Bit Grease (194683-7), Side Handle (158057-6), Depth Gauge (324219-0), Battery Converter BCV01 (195512-7), Tool Bag (831278-2)

Shipping Dimensions (Length x Width x Height) & Weight : 28.74 In. X 18.74 In. X 5.24 In. Weight : 18.25 Lb.

Specifications

Battery	36V (2.6 Ah) Li-Ion
Capacities:
Concrete	1” (26 mm)
Steel	1/2” (13 mm)
Wood	1-1/4" (32 mm)
No Load Speed	0 – 1,200 RPM
Blows Per Minute	0 – 4,800 BPM
Impact Energy	3.0 J (2.2 ft. lbs)
Vibration Level	13.5 m/s²
Noise Level	91 dB(A)
Overall Length	14-1/4” (362 mm)
Net Weight	7.1 lbs (3.2 kg)
